With the AUDITION CB 2.3, we have created a very compact AVM high-performance speaker that can be perfectly and easily integrated into your living space. With its very compact dimensions, the AUDITION CB 2.3 is ideally easy to set up and fills the room with full, powerful and natural sound. To place the speaker, for example, on a low board or below ear level, we recommend using the built-in tilt mechanism to slightly angle the speaker backward for an ideal sound projection at ear level.
The extremely compact design was carefully chosen to allow this speaker to be seamlessly integrated into medium-sized living spaces without drawing attention. Achieving a full and harmonious sound as well as a high maximum volume level from this compact design required an enormous technical effort. The solution involved specially developed tweeters and low-frequency drivers, a suitably highly efficient crossover, as well as best-in-class connections that allow the use of high-quality speaker cables. The result is a loudspeaker to enjoy all genres of music at all listening levels that will delight your living space.

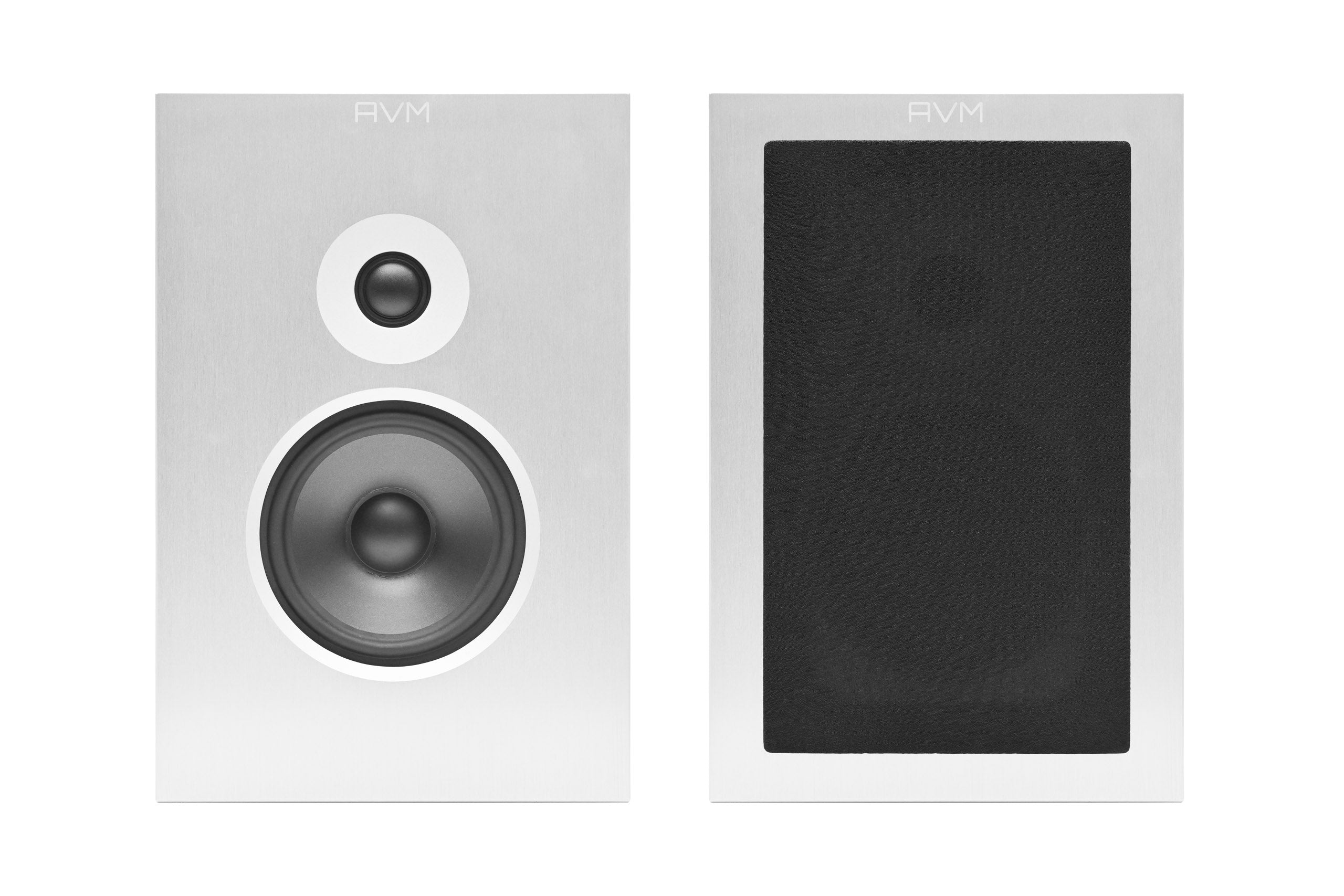

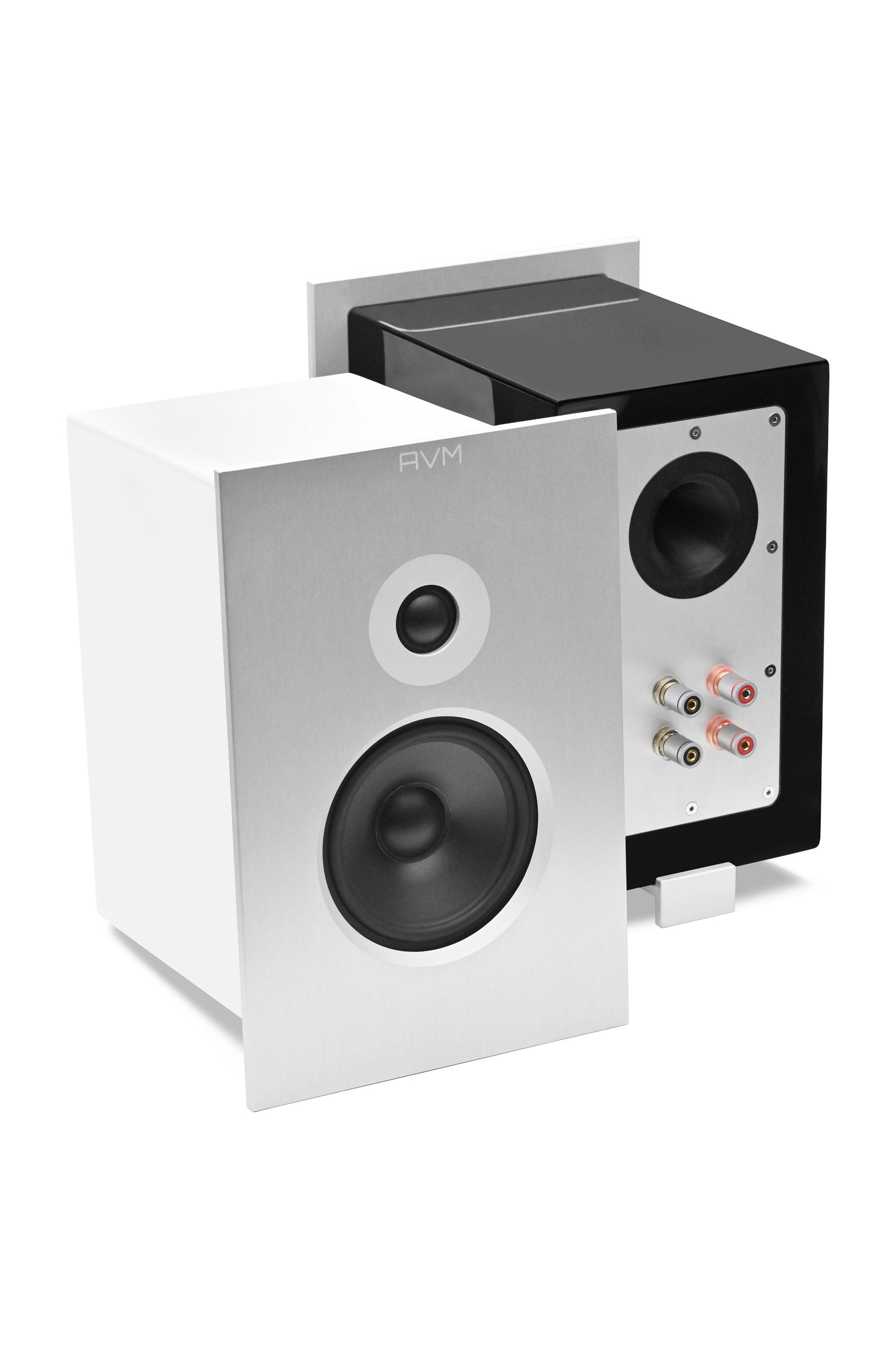

The front panels featuring the typical AVM look are not only a technically important detail but also aesthetically pleasing and practically designed. The front baffles, with an area of 220mm x 330mm, surpasses the speaker circumferentially and thus form the front installation edge at the same time. The AUDITION CB 2.3 can be tilted on a solid, height-adjustable third foot at the back. Made of ultra-high-density fiber, the cabinets reduce unwanted vibrations and resonances, ensuring a balanced and powerful sound reproduction of the speaker. The AUDITION CB 2.3 is available in two color variants – painted in black or white. The included speaker covers are magnetically attached and can be easily removed and reattached.
The CB 2.3 compact speaker at a glance
- Compact 2-way loudspeaker

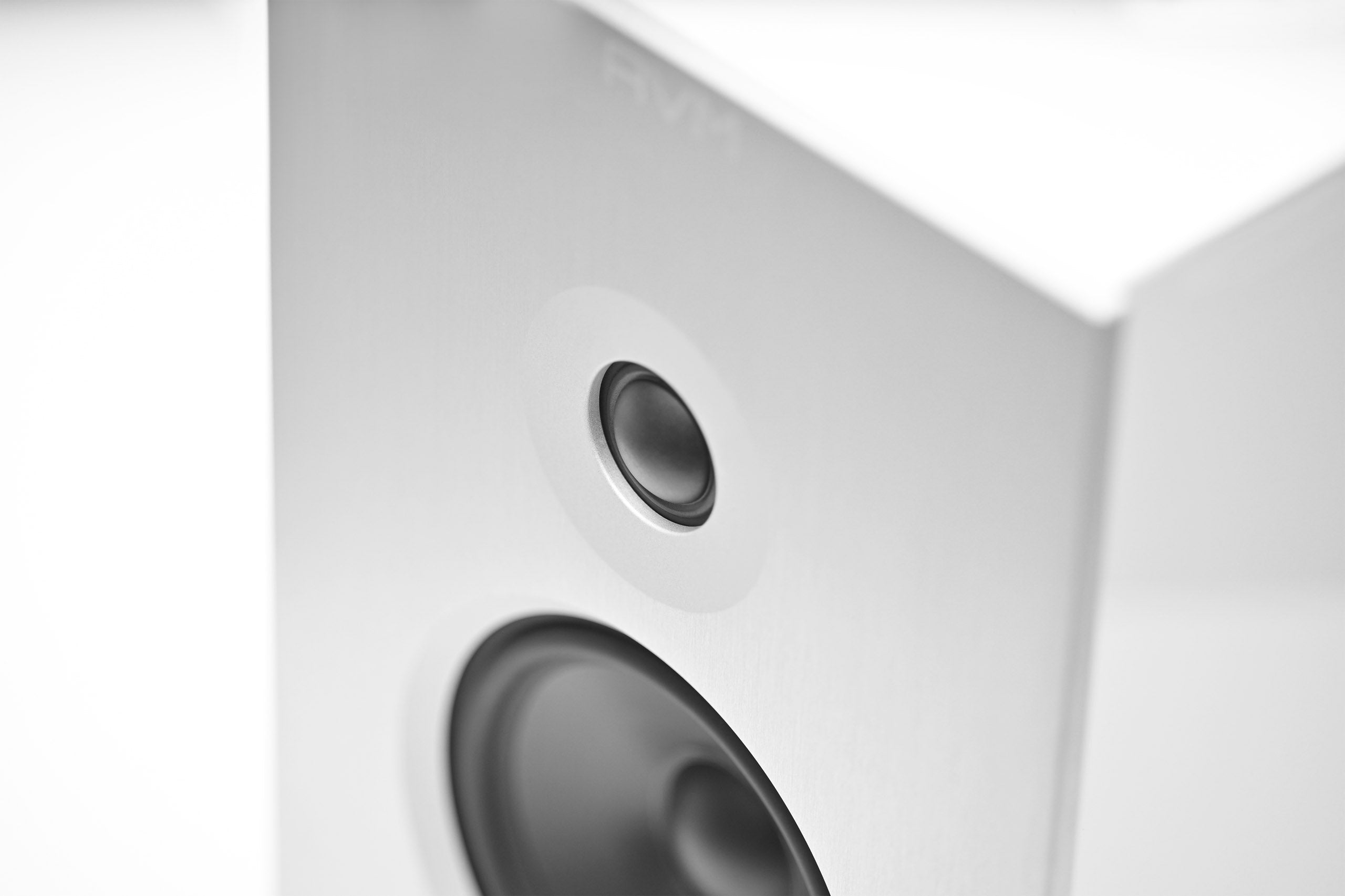

- Precision tweeter with waveguide opening in the front

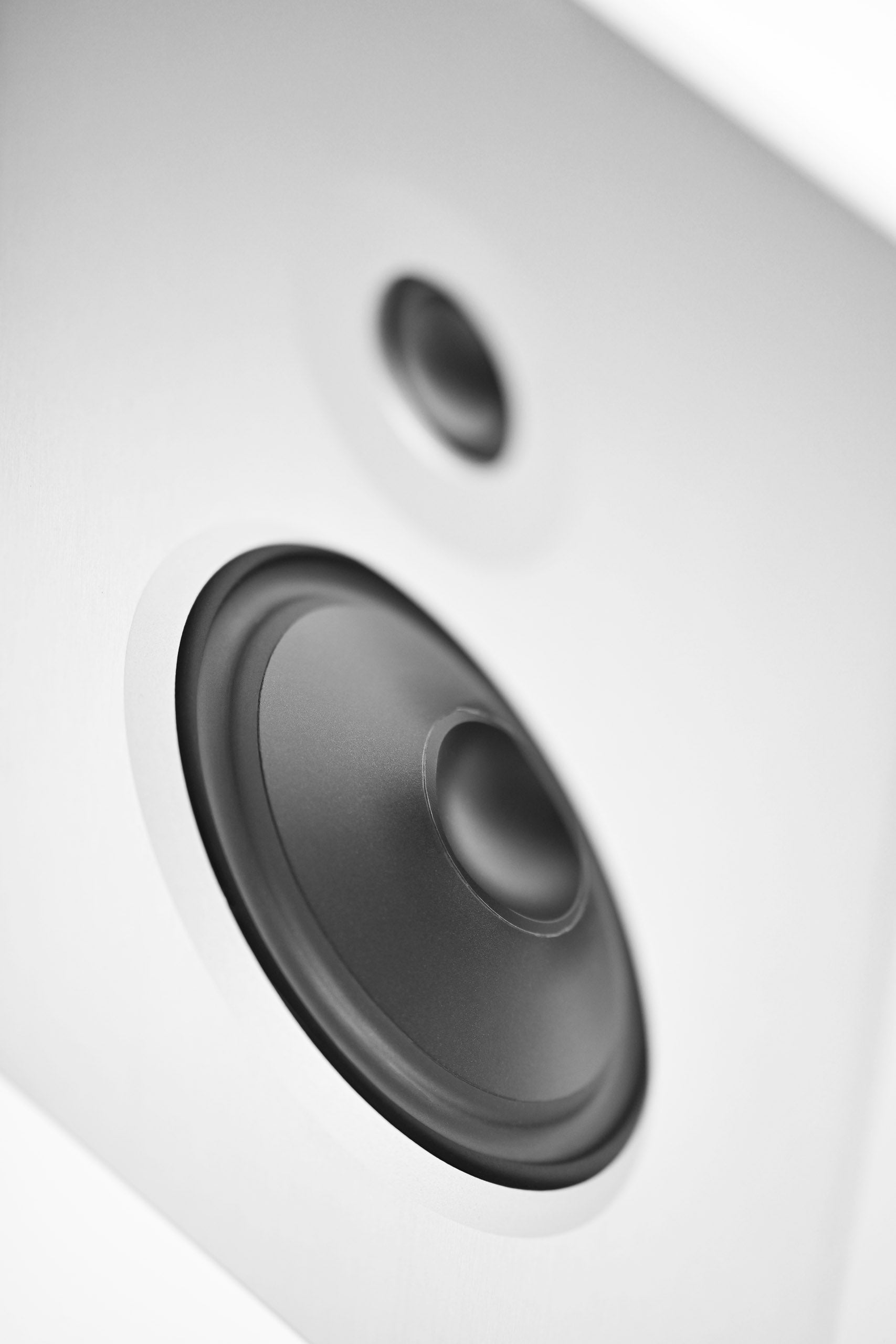

- 160 mm sandwich woofer
- High-density, low-resonance speaker enclosure reinforced by solid 8mm aluminium front panel

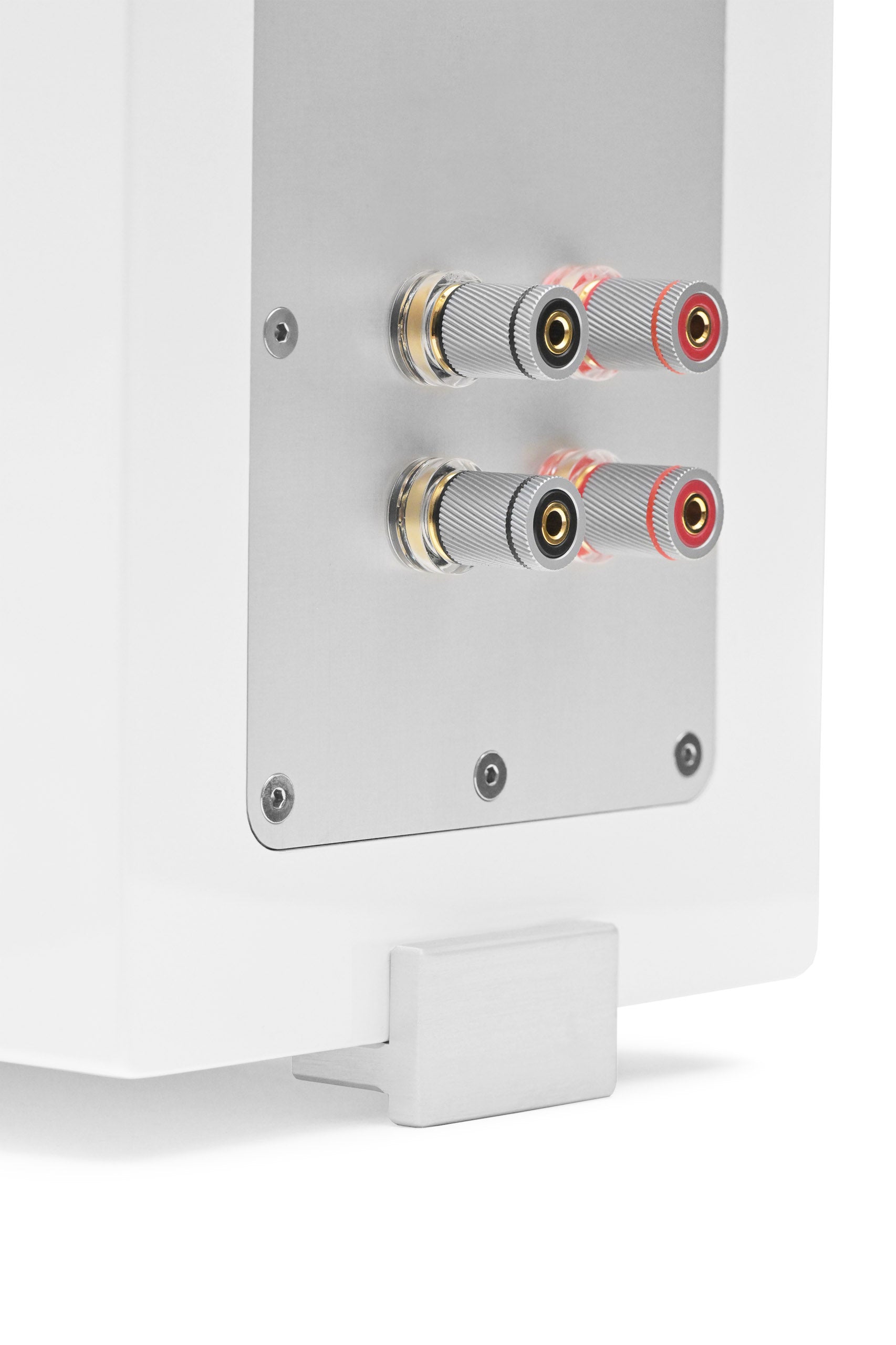

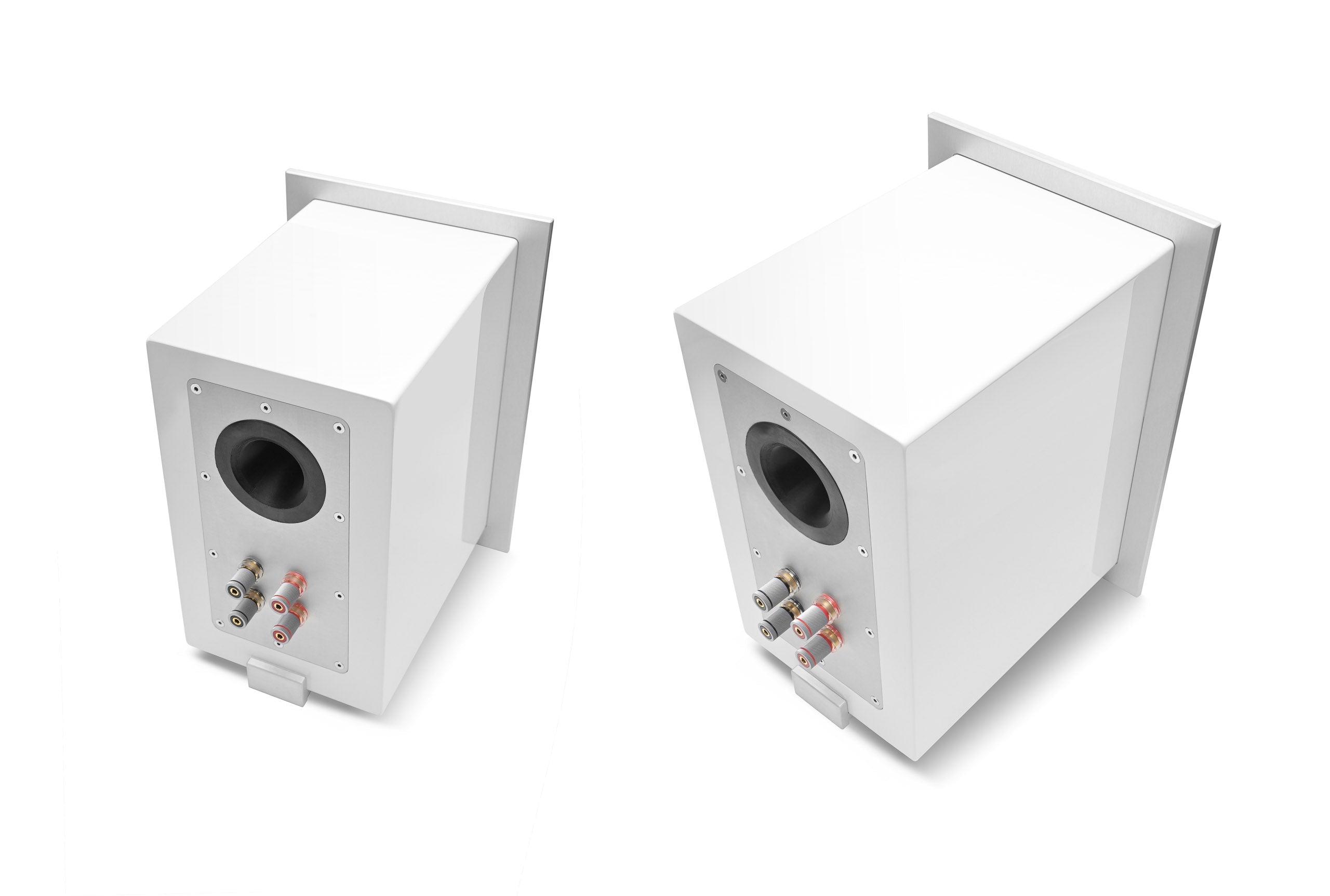

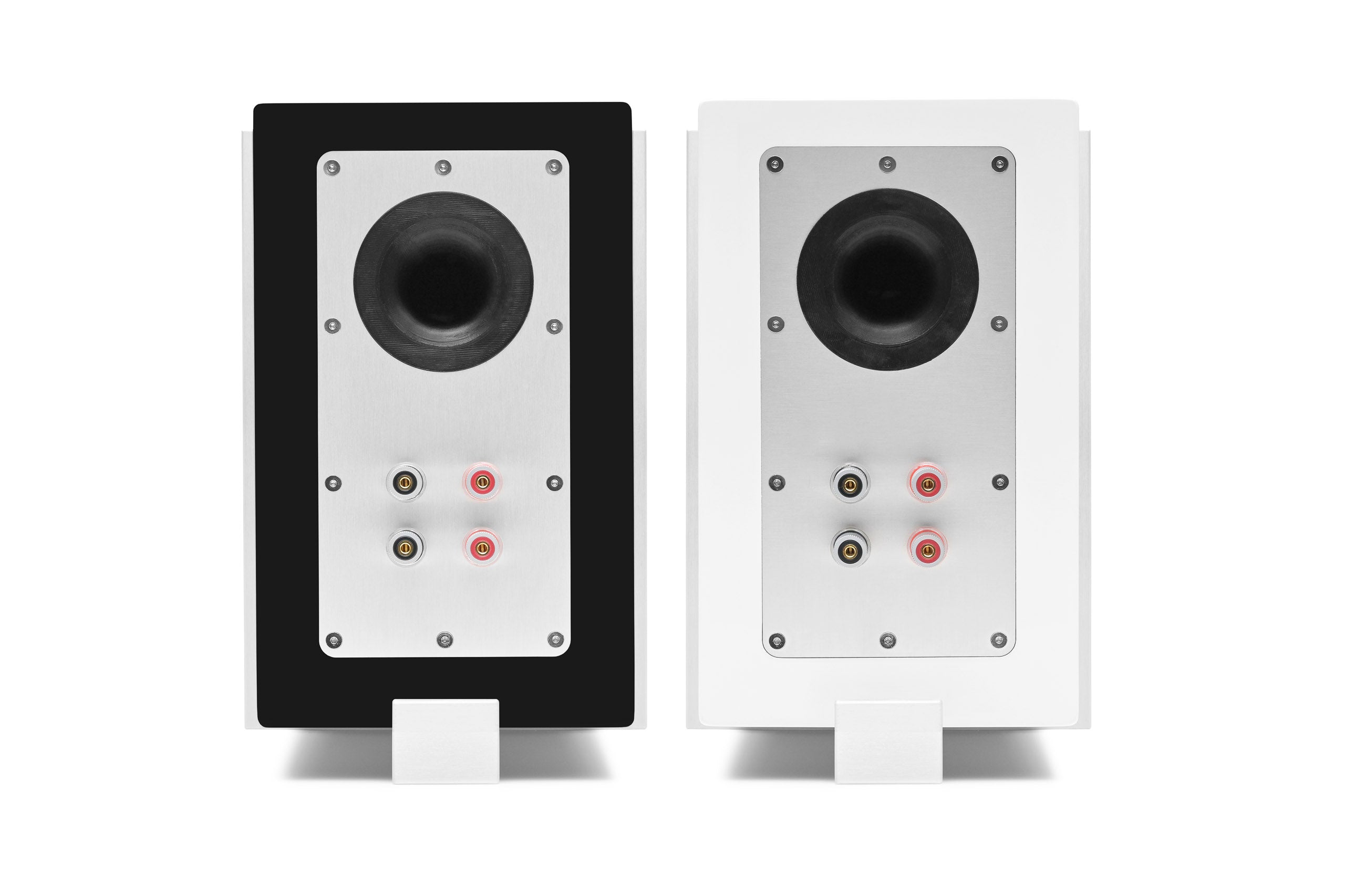

- Bi-wiring connection option
- Optimal for amplifiers with 140 watts of power

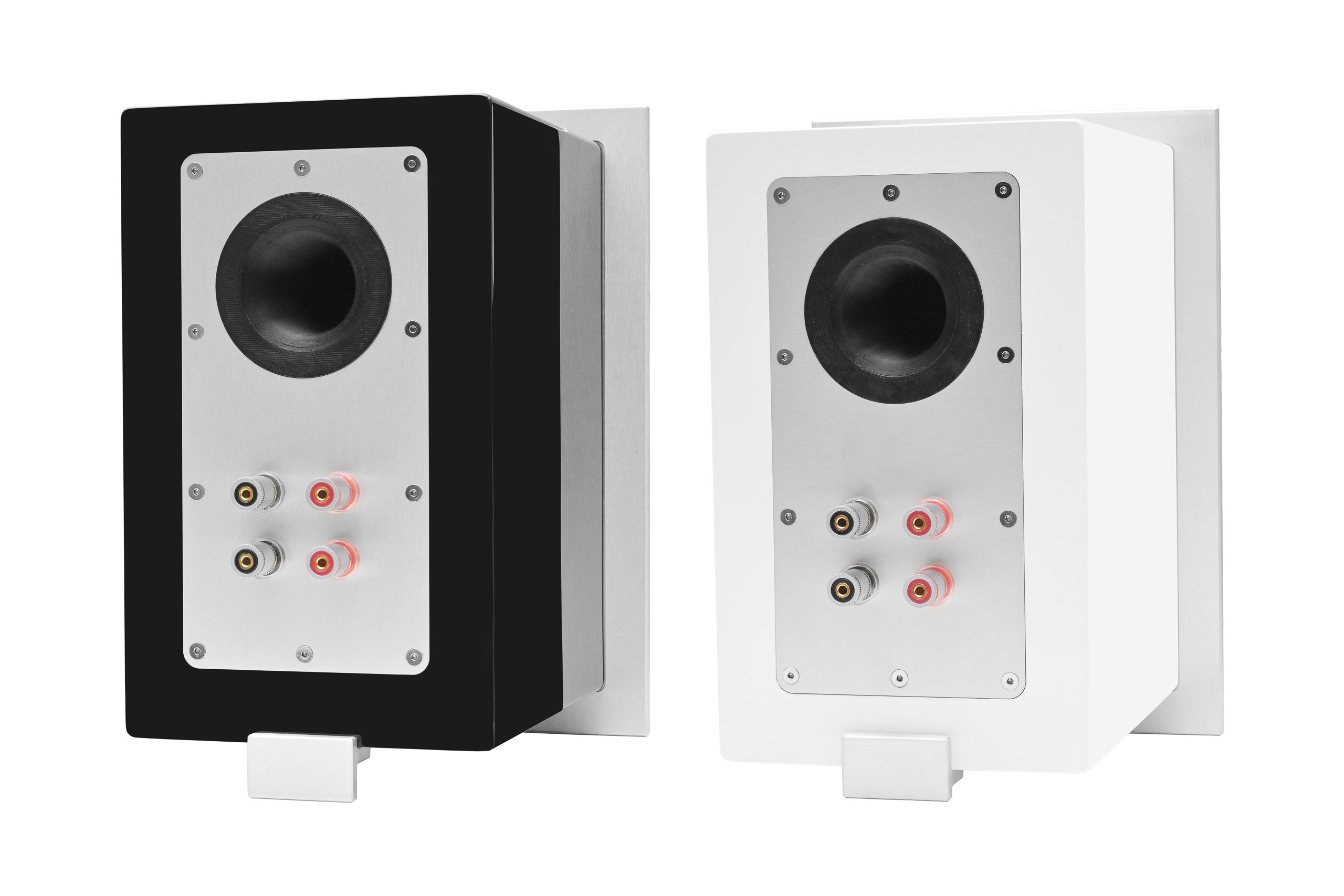

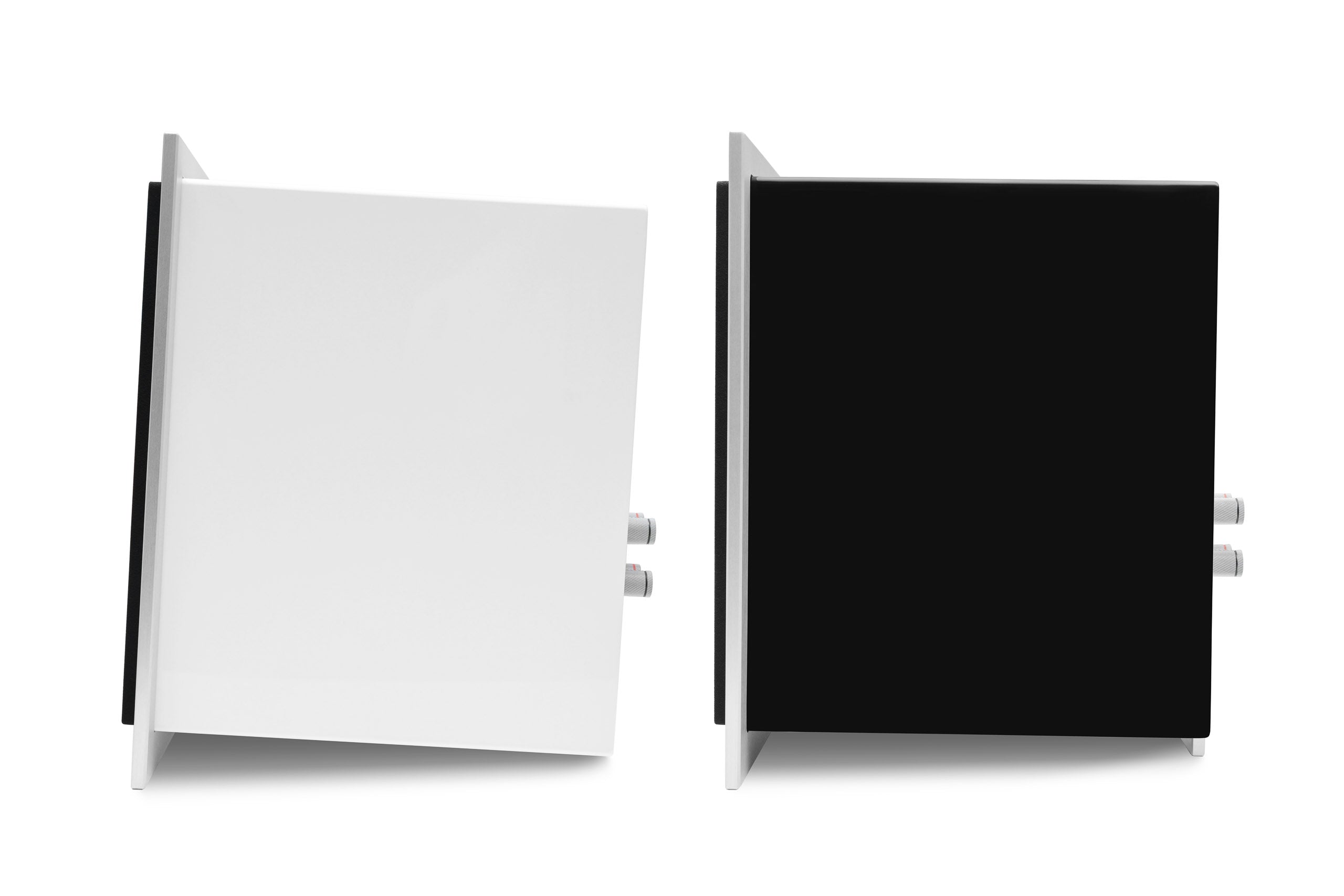

- High-gloss lacquered cabinet (black or white) with silver anodized aluminium front panel

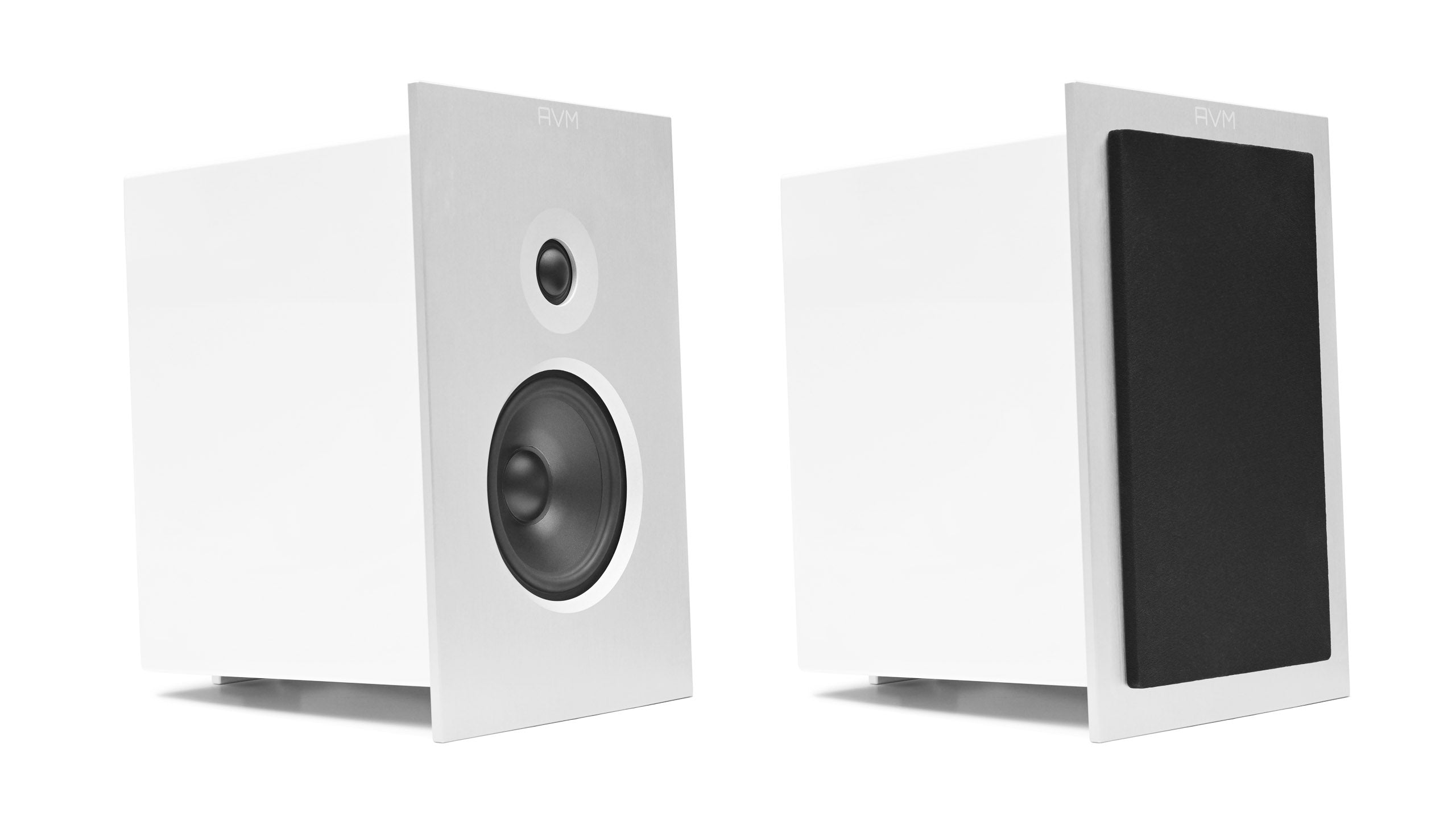

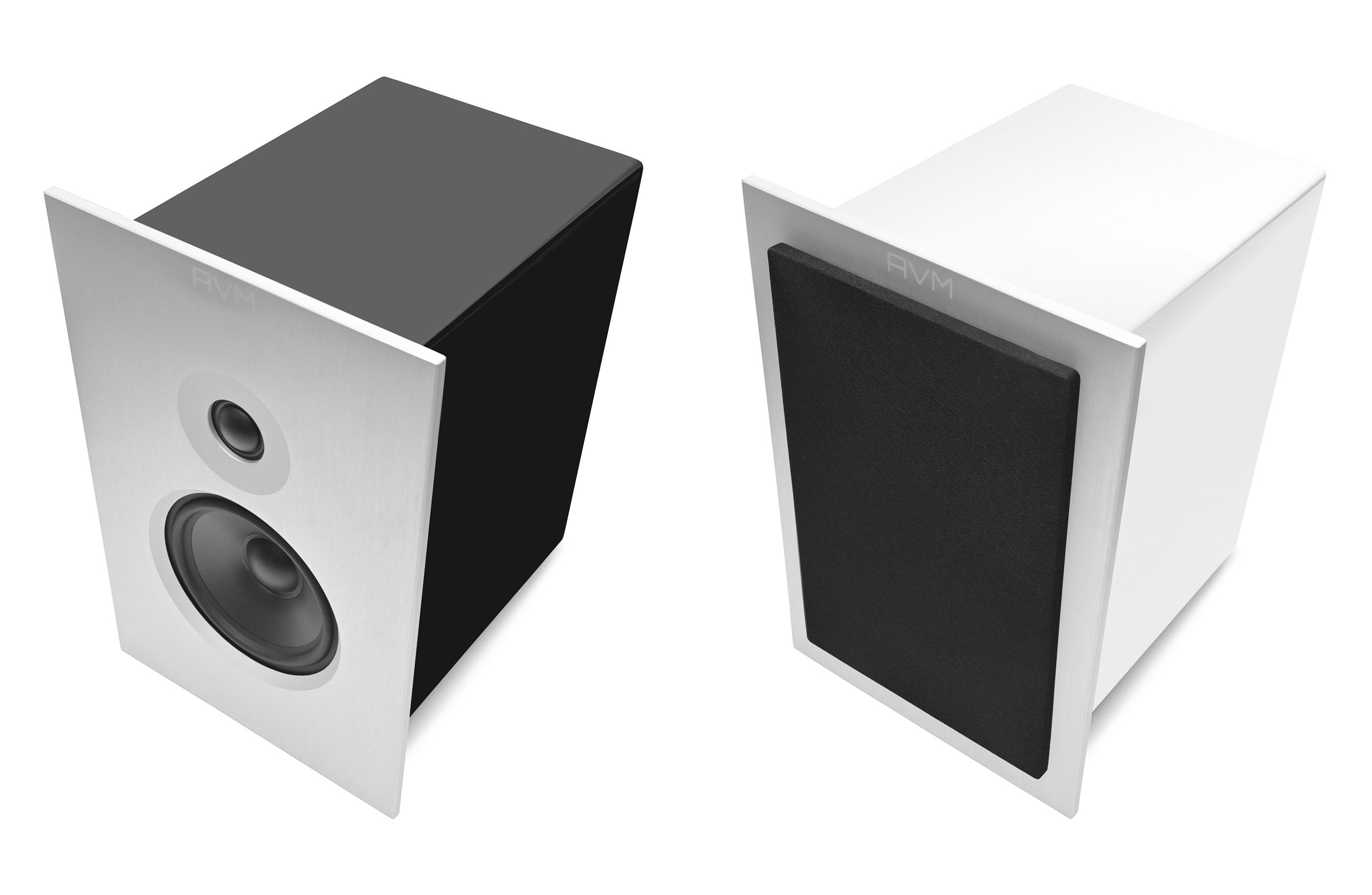

- Speaker cover magnetically fixed
- Tilt mechanism for optimizing the radiation pattern
- Custom versions available upon request
Specifications
| Principle | 2 way bass reflex |
|---|---|
| Bass driver | 160mm sandwich woofer |
| Tweeter | Dome tweeter with fabric diaphragm |
| Crossover frequency | 1850 Hz |
| Power Capacity | 140 Watt |
| Frequency Range | 37Hz-50kHz |
| Sensitivity | 88dB/1W (2,83V) |
| Nominal impedance | 4Ω |
| Minimum impedance | 3,6Ω at 240 Hz |
| Maximum sound pressure level (SPL) | 102dB |
| Finish | High-gloss housing black or white lacquered, silver aluminmium front |
| Dimensions Cabinet | 220 mm x 170 mm x 285 mm (L x W x H) |
| Dimensions Front Plate | 220 mm x 330 mm (W x H) |

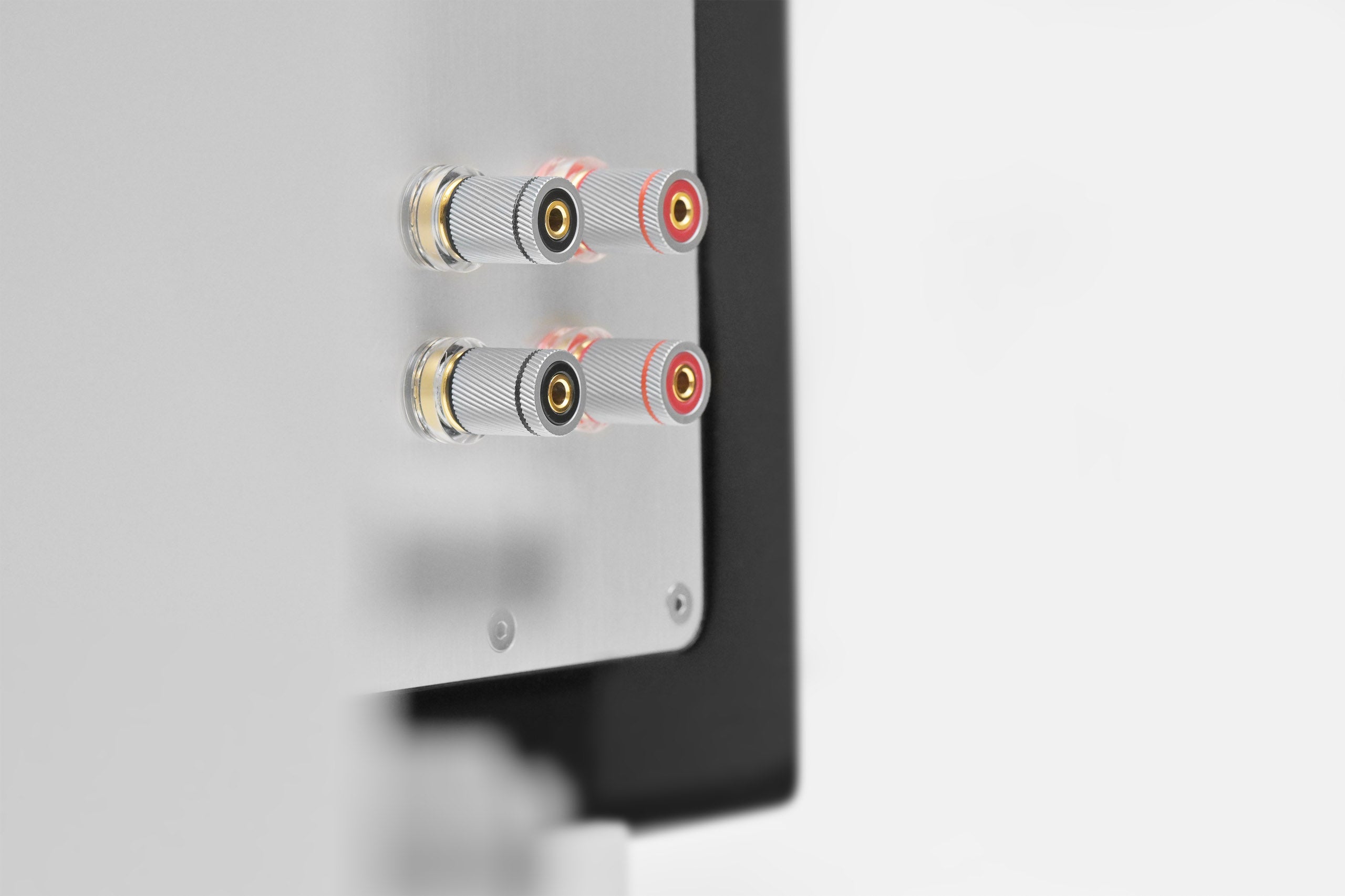

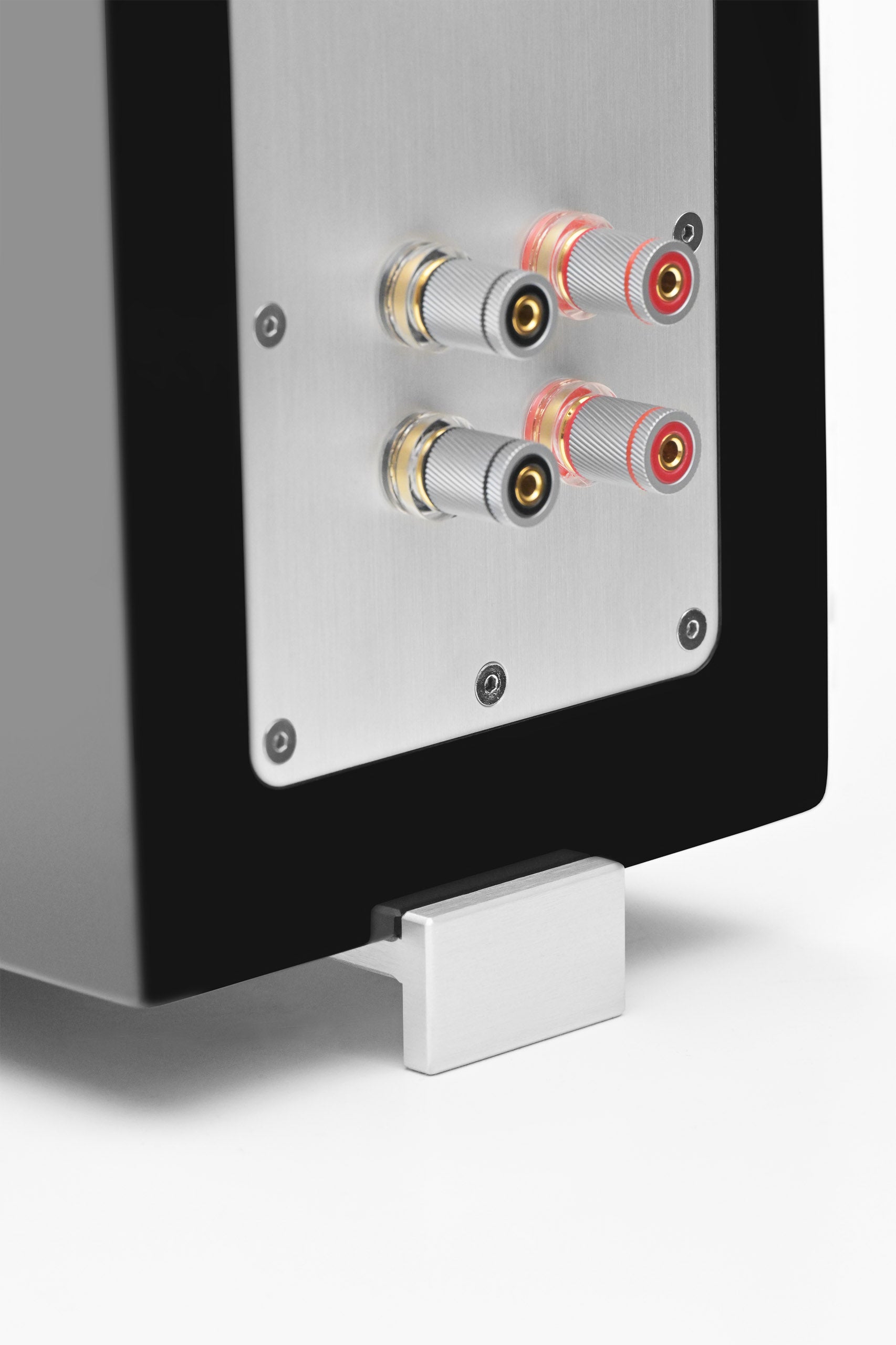

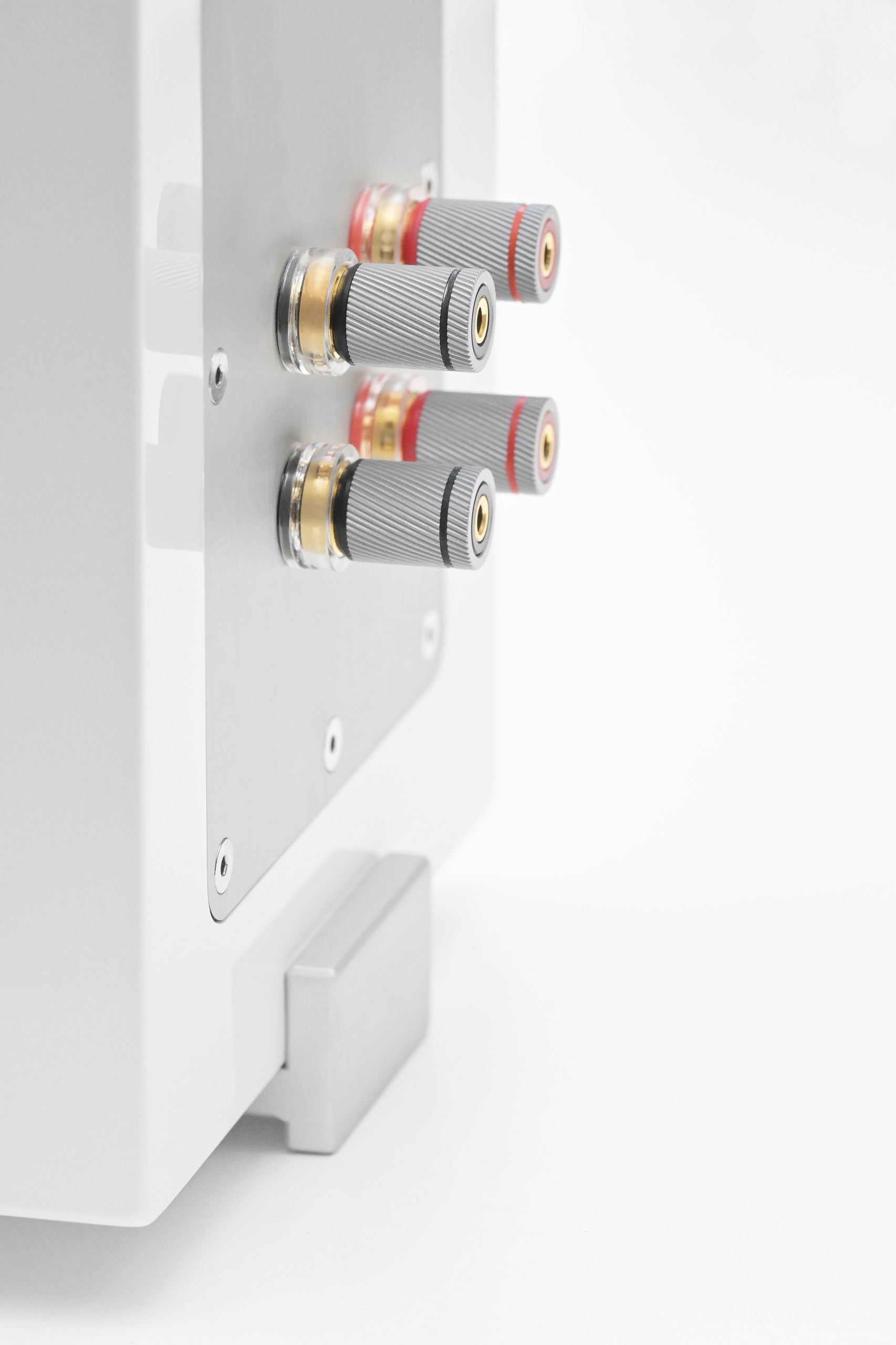

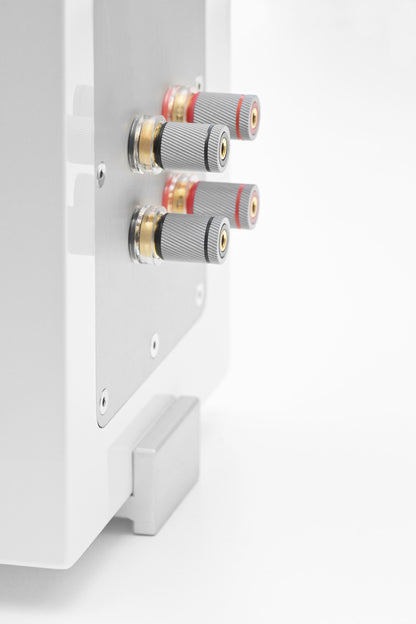

| Connections | Bi-Wiring terminals |
| Dimensions | 238 mm x 230 mm x 345 mm (L x W x H) |
| Weight | Approx. 6 kg (depending on version) |
