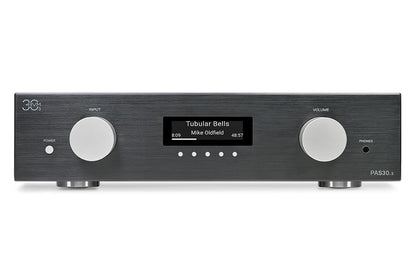

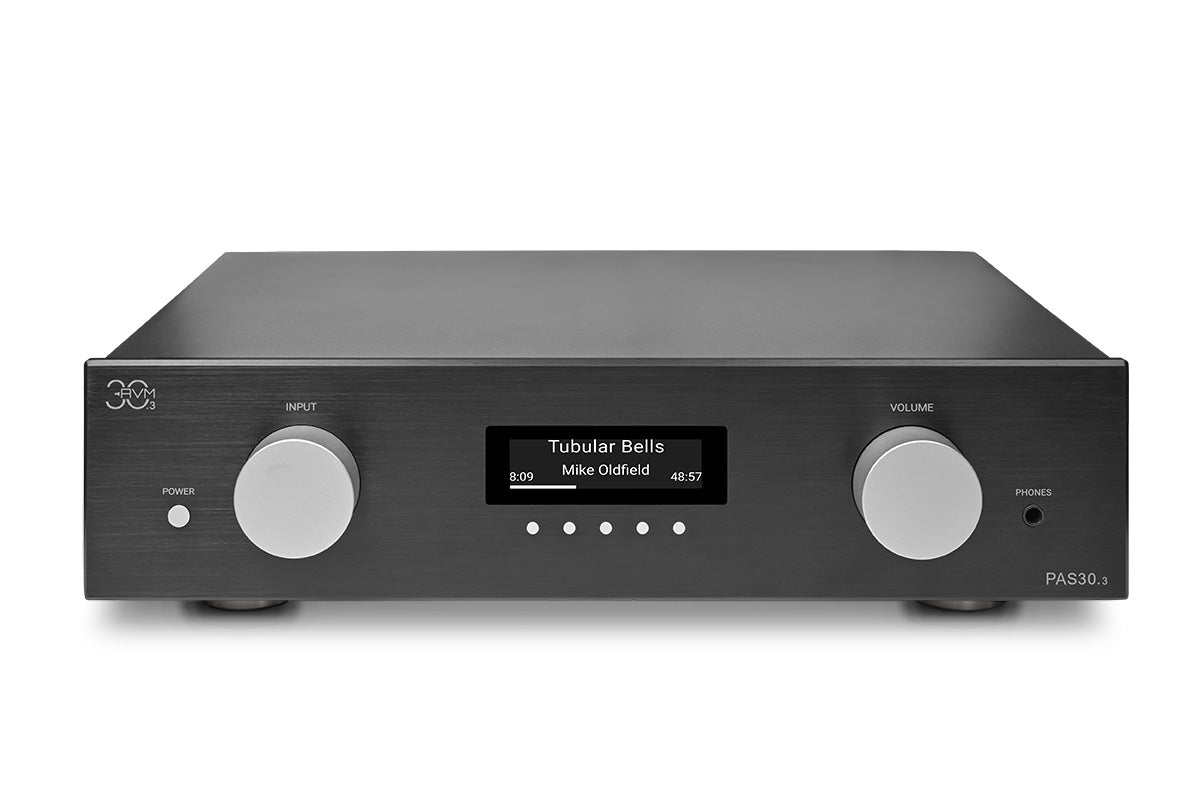

AVM 30 PAS 30.3 Streaming Preamplifier

PAS 30.3: Streaming Preamplifier

SRP: $4499.99 in Black/Silver, $5499.99 in Cellini

Our AVM 30.3 Neo classics in the tradition of our preamps are the modern interpretation of the amplifiers that have been developed uncompromisingly since the early 1990s. Based on the AVM X-STREAM engine®, the new PAS 30.3 preamplifier has been created. Numerous new features have been incorporated and the new RC X APP also controls the PAS 30.3 completely. There is no need for towers of appliances and overflowing cable clutter, and all modern connections are available, so that even a TV can be connected via HDMI ARC. In order to construct one of the most powerful sound in its class, we have miniaturized proven sound technologies and designed them into a compact and slim precision housing.

The main focus was on a completely modernized APP control, the RC X app clearly contains all important functions. The simplest, intuitively learnable operation as well as a clear and nicely designed user interface make the management of even large music collections child’s play. This makes you want to explore new music on numerous streaming platforms. The AVM RC X app is available for iOS (Apple) or Android- controlled devices.

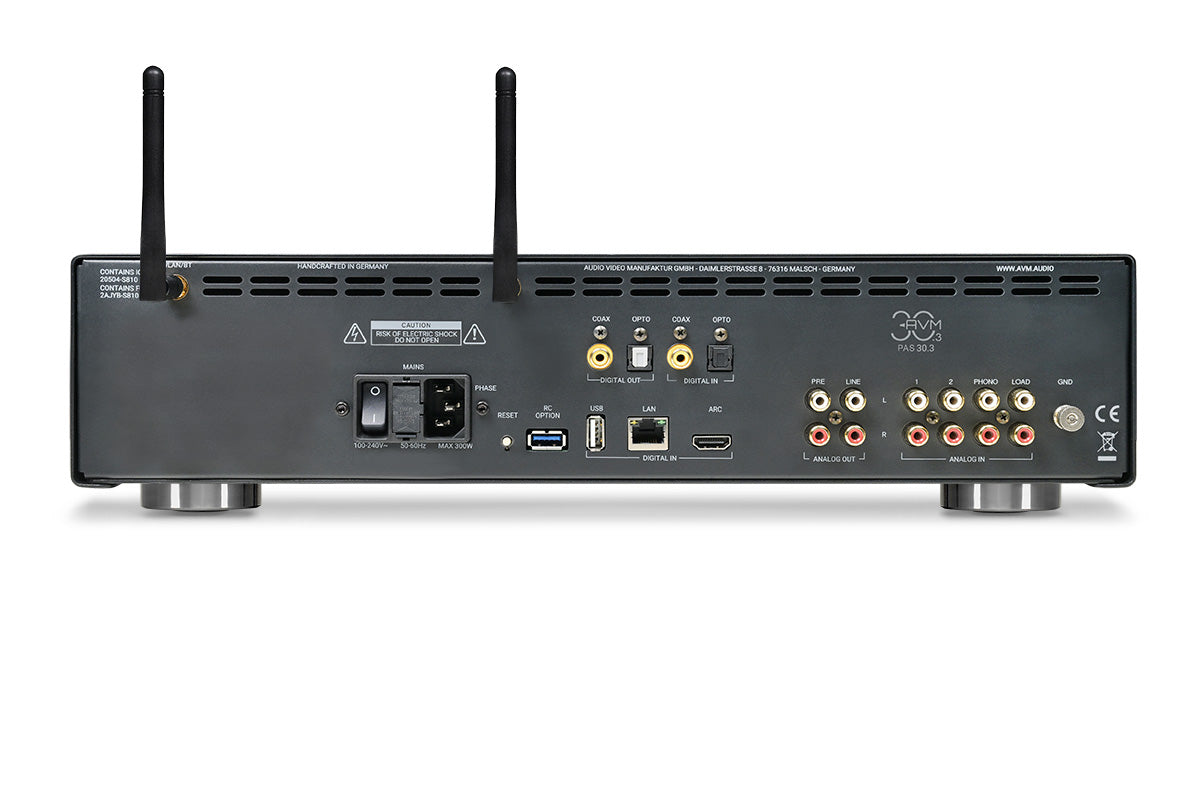

The new AVM X-STREAM engine® can stream all high-resolution formats, including DSD (256). This streaming engine is a complete AVM in-house development and is completely software-based, so it can be updated online in a future-proof manner. An HDMI (ARC) interface is also on board as well as the modern Bluetooth connection, further digital inputs and also a USB A interface are standard. Special attention has been paid to the phono input stage for MM and MC.

This high-precision input stage has been completely redesigned for installation in the compact PAS 30.3. This ensures even better sound, especially in combination with our rotation turntables. Completely new are the digital outputs, which can also be volume controlled. The HDMI ARC input can also be used to easily connect and conveniently control TV sets.
The PAS 30.3 has also made a huge leap in terms of sound. This technological leap is based on the use of AVM amplifier technologies, which we have been constantly refining since the 80s. With its numerous connection options, the PAS 30.3 is prepared for practically any application.

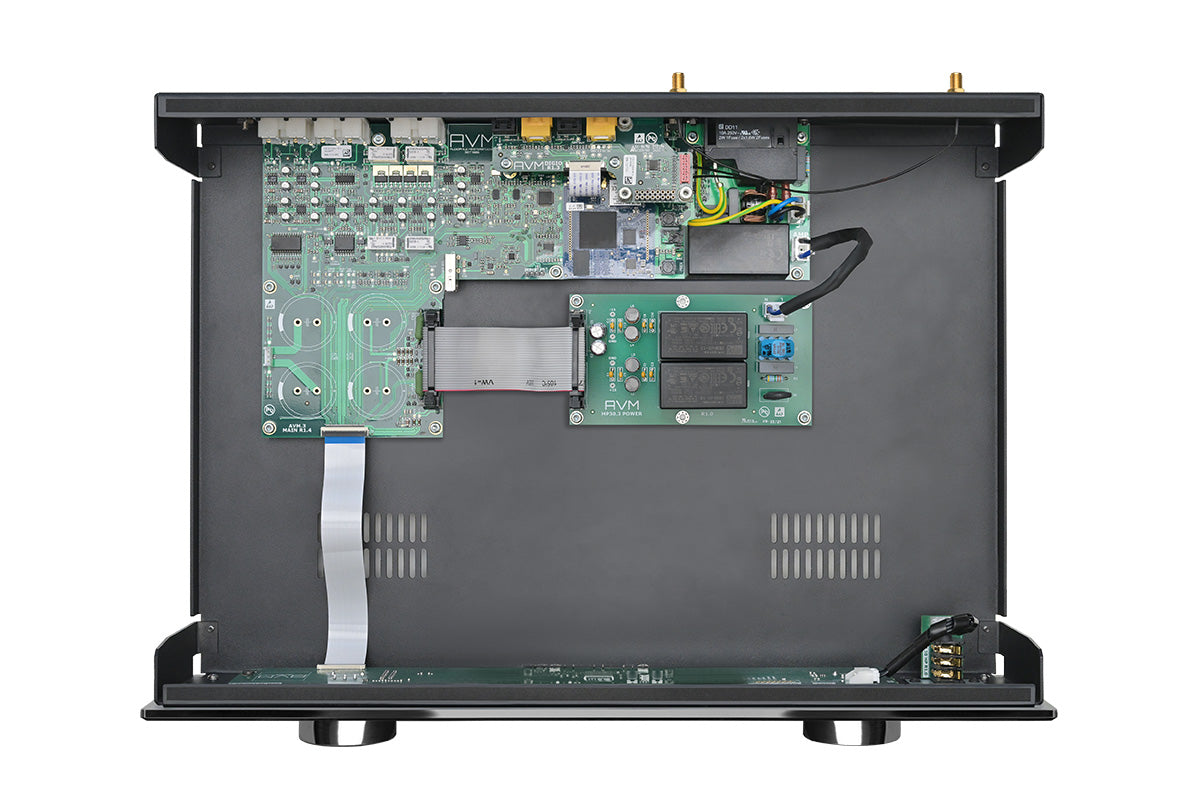

The digital section in PAS 30.3 was redesigned from scratch in the course of the new development, because this crucial part of PAS 30.3 is basically based on our decades of experience. A selected ESS from the new generation (9038 Q 2 M) is now used as a digital/analogue converter, which is also a clear gain in terms of sound, which benefits all digital sources and reproduces all high-resolution formats perfectly and true-to-life.

PAS 30.3 in a nutshell

• Analog Pre-Amp with Streaming
• X-STREAM Engine® for HiRes streaming incl. DSD (256), controllable via RC X APP
• Prepared for Spotify Connect, Qobuz, Tidal Connect, HiResAudio, web radio (expandable)
• 1 phono input for MM & MC (impedance matching via enclosed adapter plug)
• HDMI (ARC) Input
• 2 digital inputs SPDIF (coax., optical)
• USB A for external hard drives (NTFS & FAT)
• 2 high-level inputs (switchable as Hometheatre Thruput)
• Airplay 2, ROON ready, Bluetooth 5.0
• AVM RoomConneXion® Multiroom Function
• 2 digital outputs (SPDIF, optical), volume adjustable
• Headphone output on the front
• Signal processing with upsampling to 192 kHz / 24 bit with selected DAC
• Tone control and parametric loudness with bypass function (also controllable via RCX APP)
• Dimmable OLED Display with proximity sensor
• Extensive menu functions (adjustable input sensitivity, individual entry designation and much more.)
• Includes RC 3 remote control
• Minimal stand-by consumption
• Compact design: 43 cm width, 32 cm depth, 10 cm height

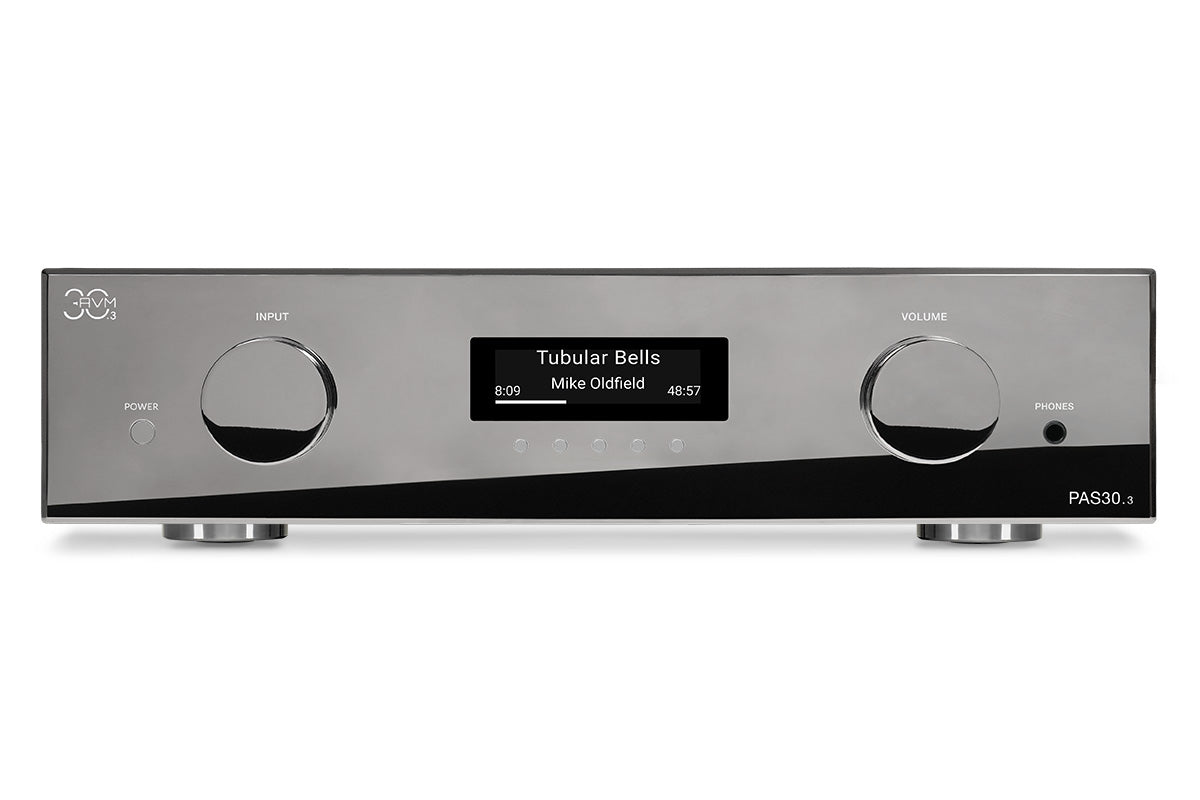

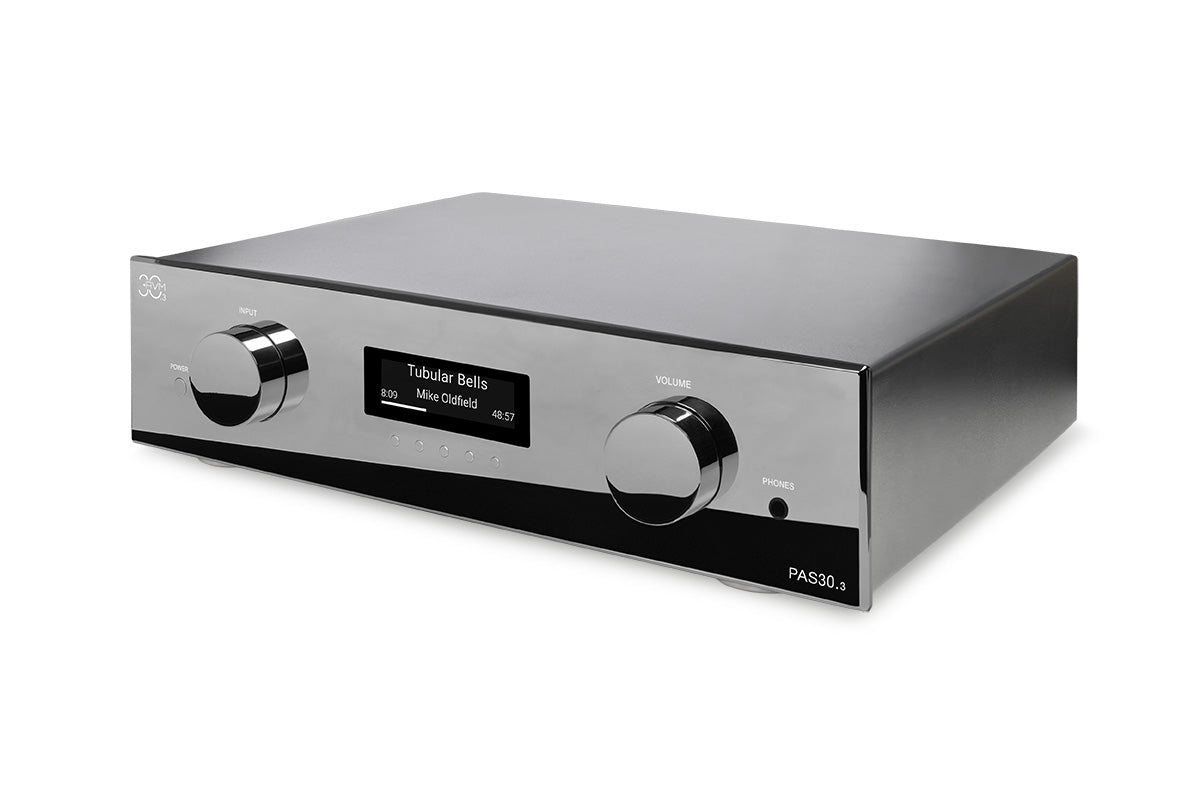

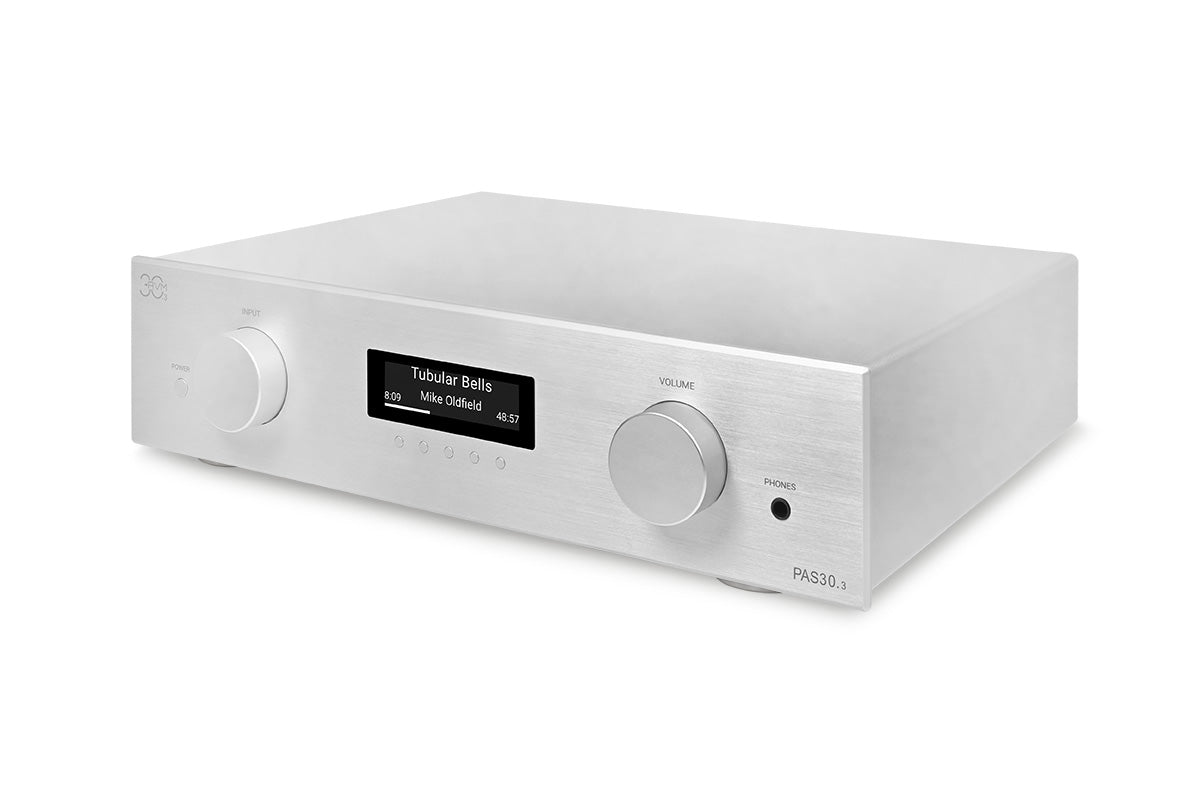

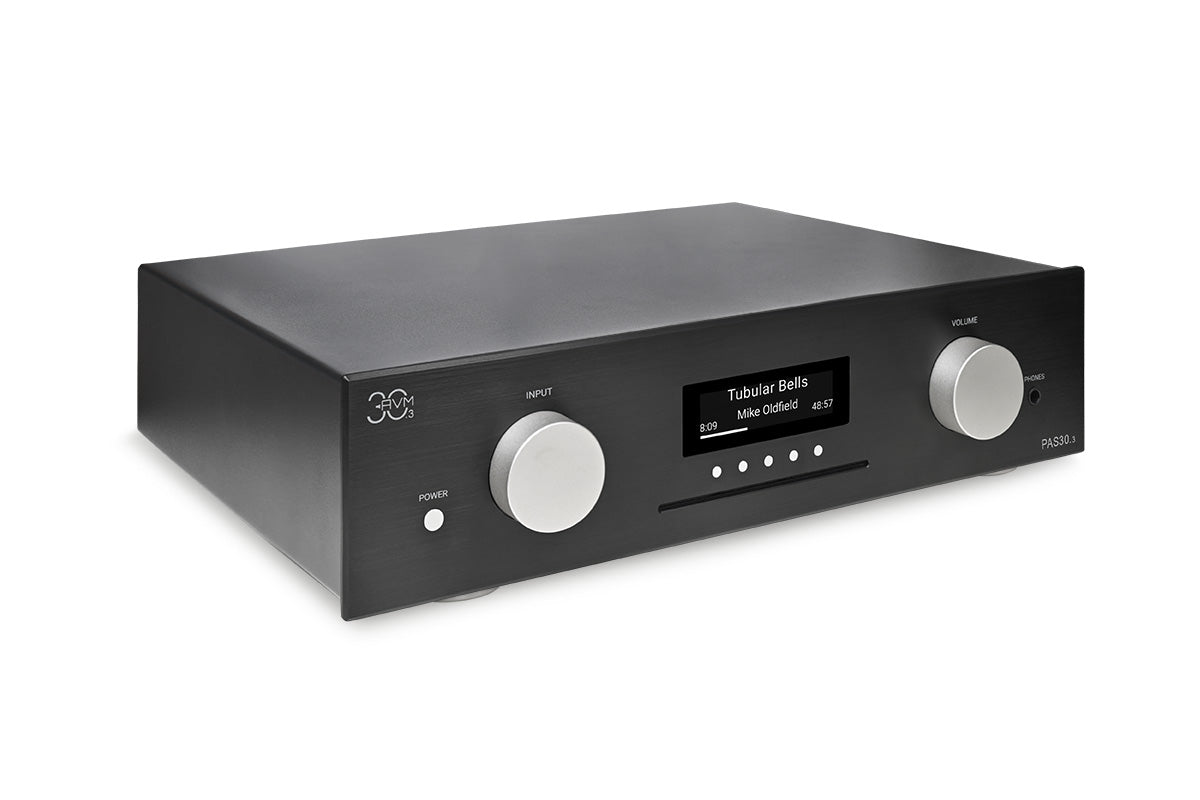

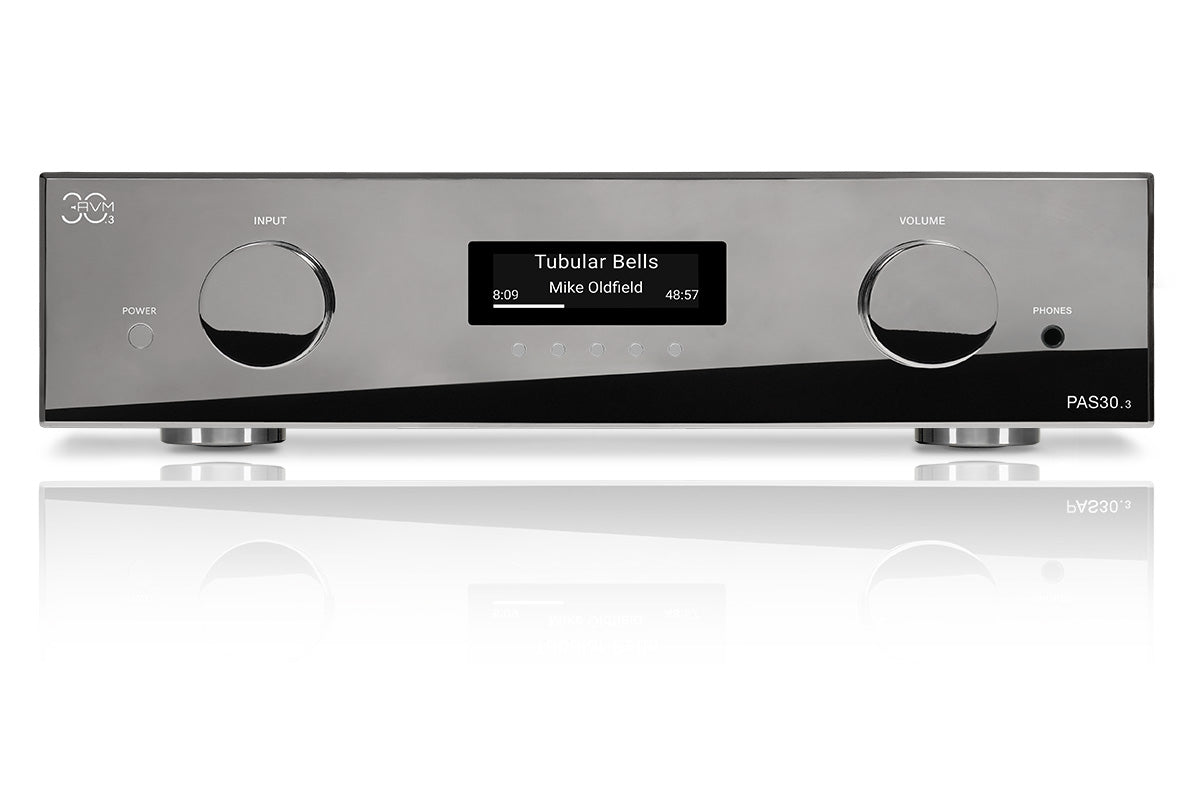

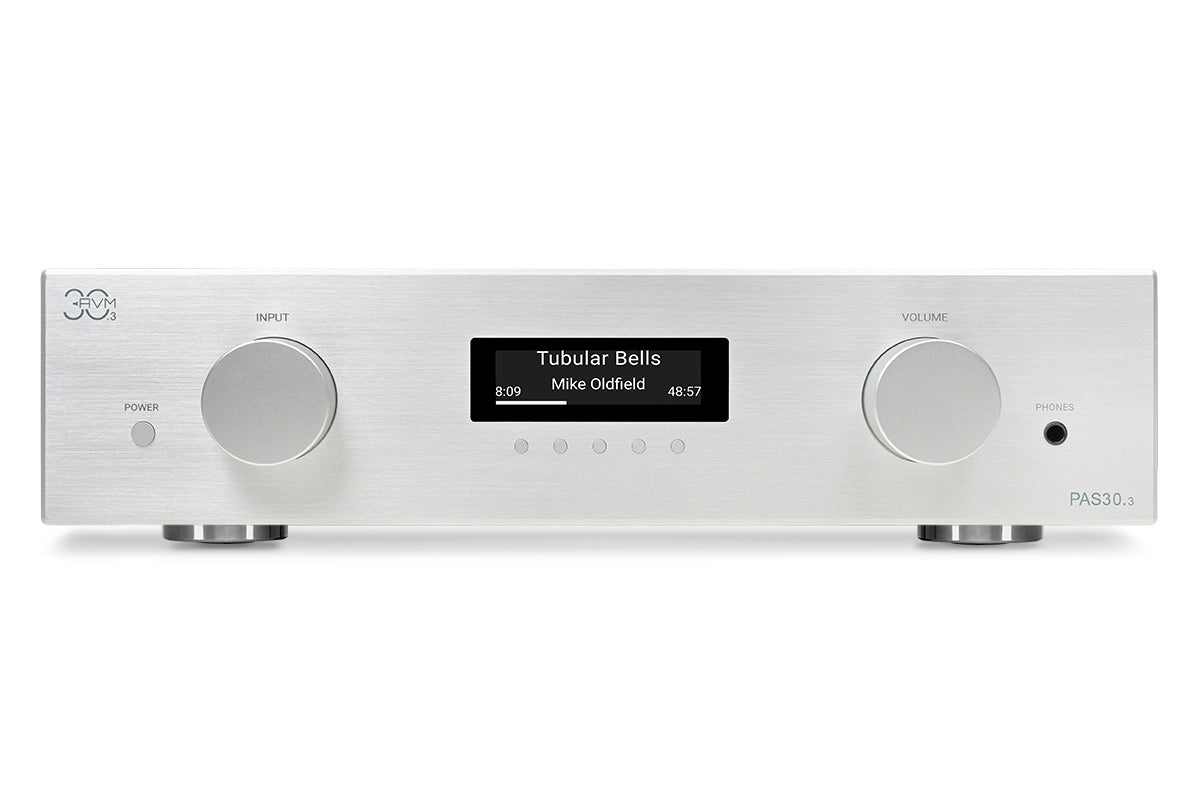

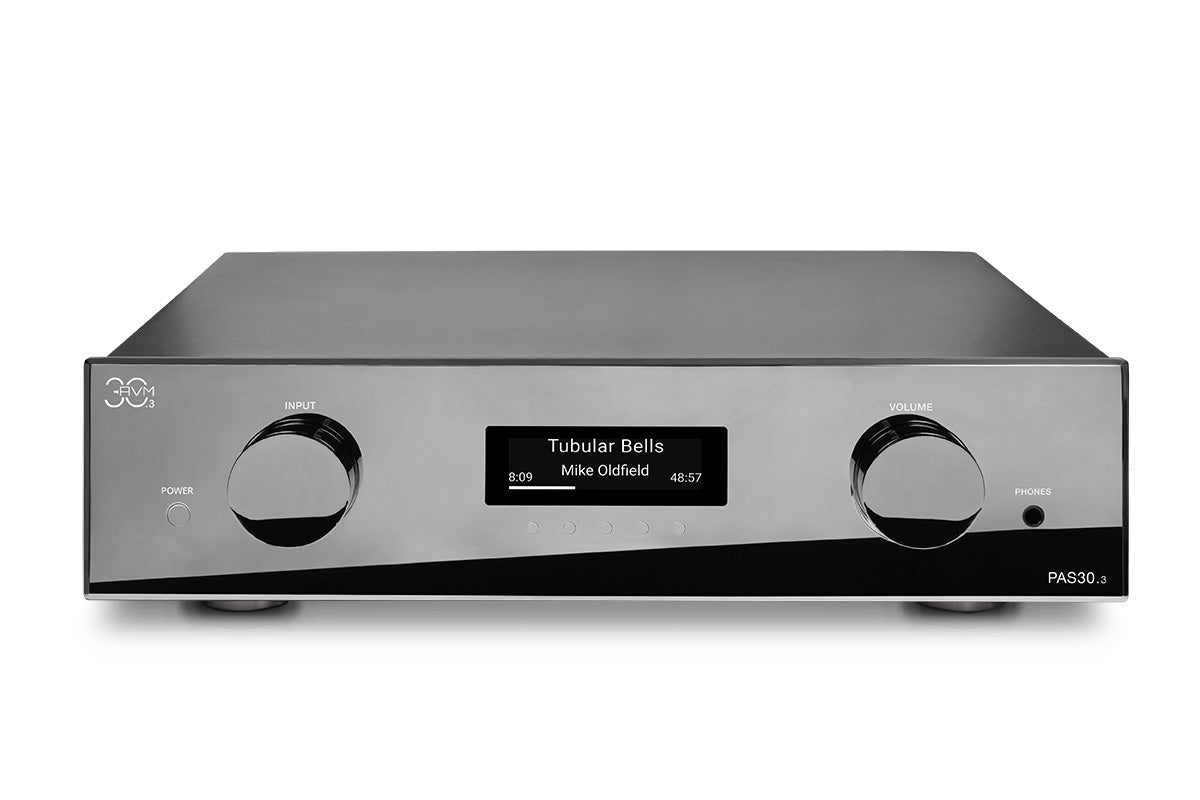

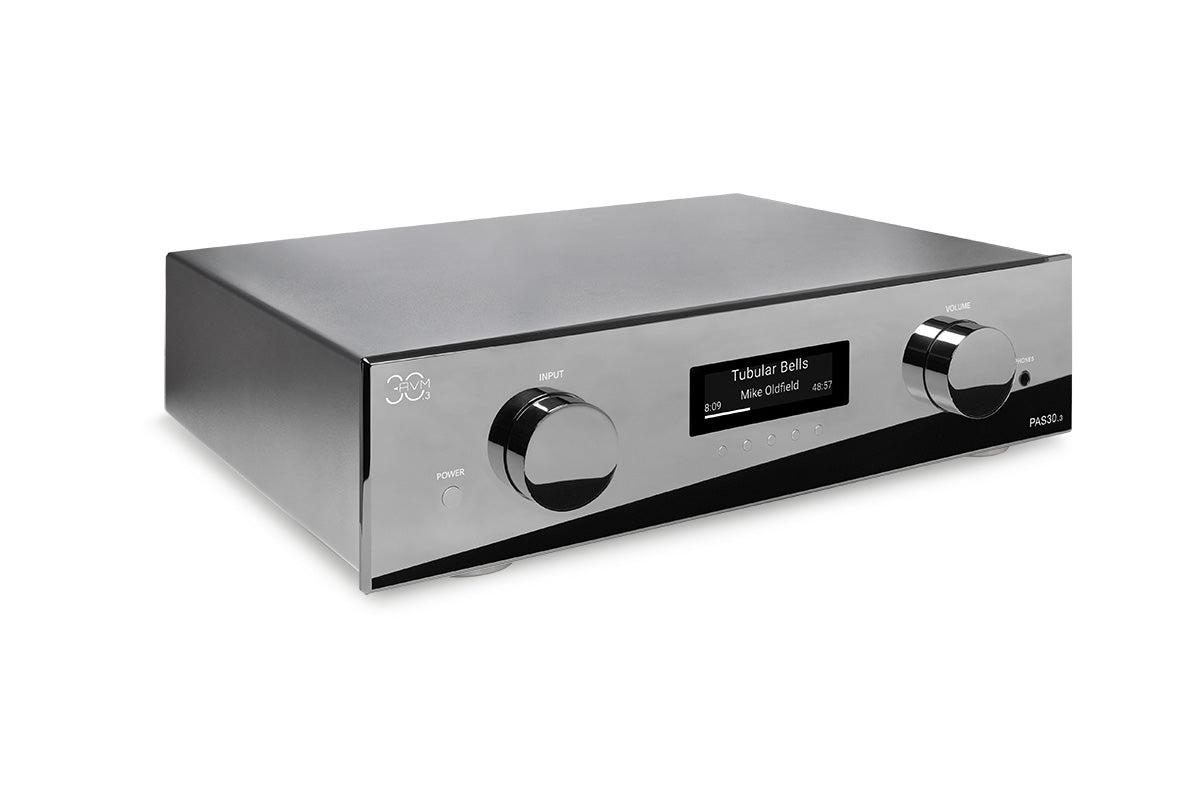

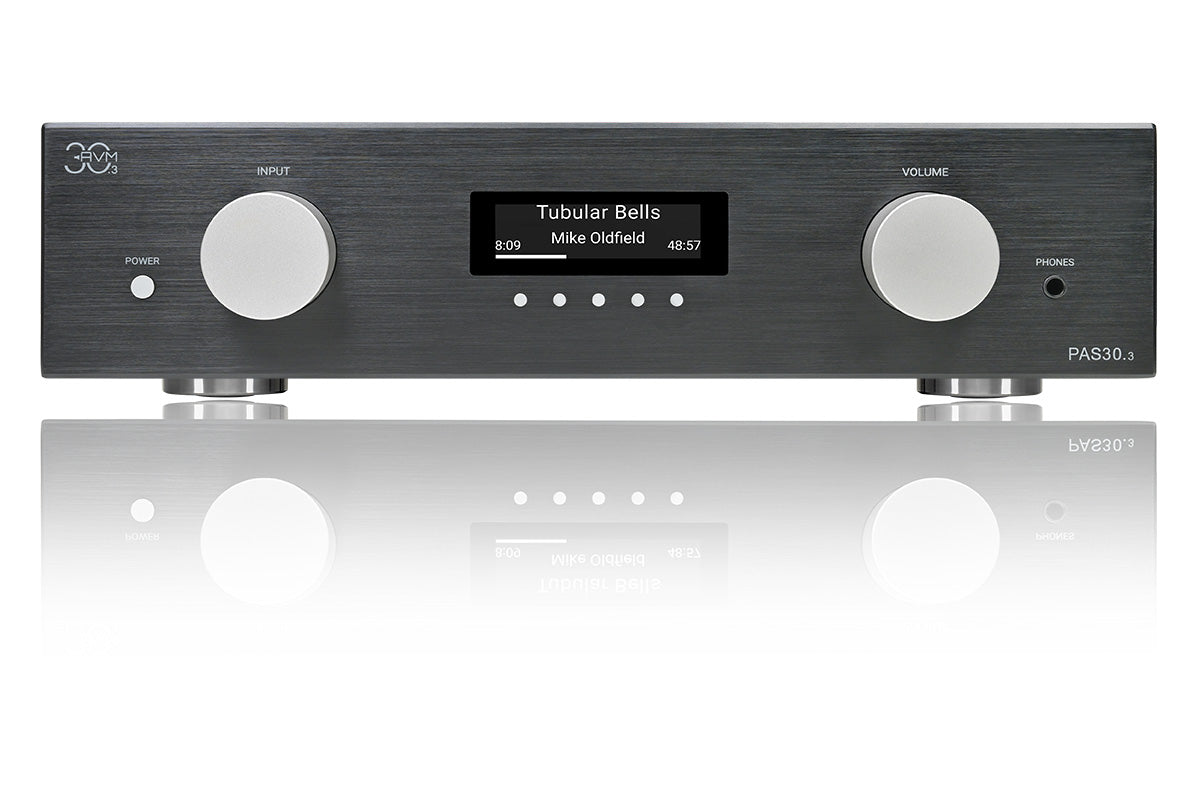

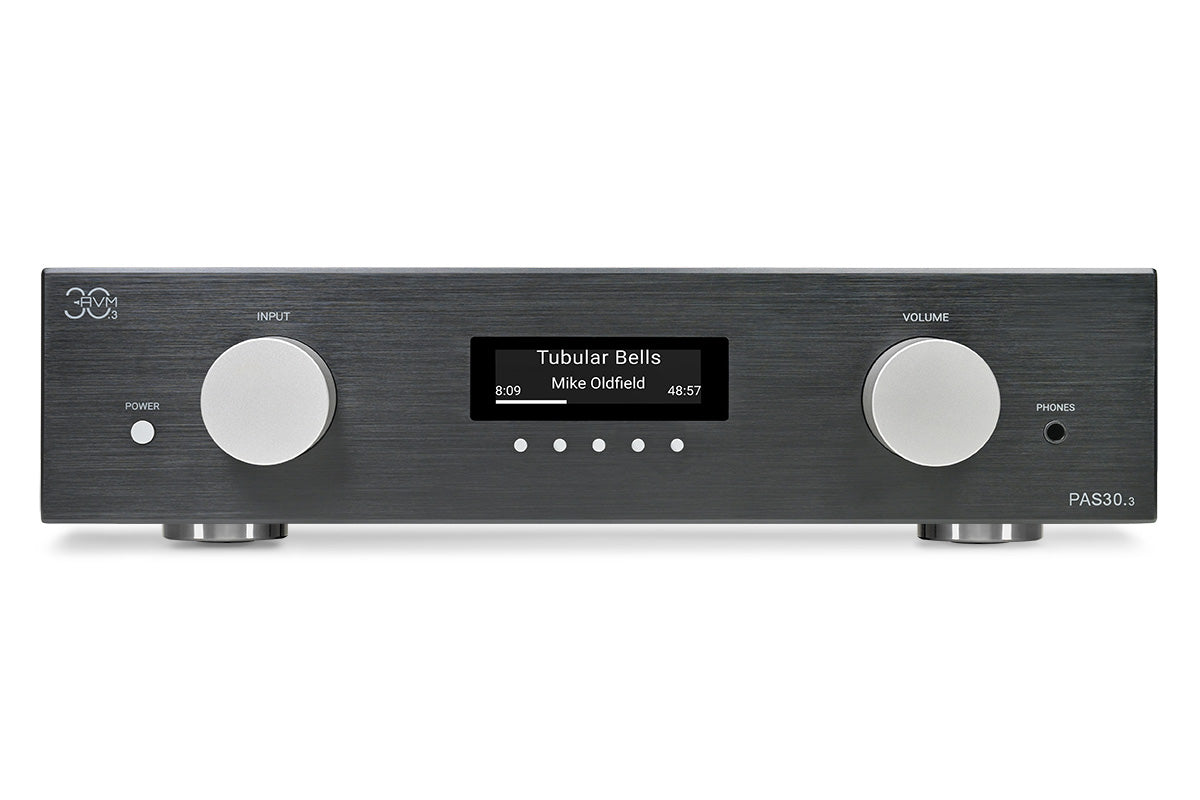

• Housing variants: Aluminium silver or black brushed or as CELLINI version with chrome front (extra charge)

Technical data

PAS 30.3  Pre-Amp (Pre-Out)

Input resistance 470 Ω

Amplification Factor 1

THD < 0.001%

Signal-to-noise ratio > 100dB

Frequency response (at -3dB) < 5Hz to > 80kHz

Crosstalk Attenuation (Channels) > 95dB

Crosstalk attenuation (inputs) > 85dB

Input Output (1% THD) 3.5 V

Output Output (1% THD) 3V  Pre-Amp (Line-Out)

Output resistance 47 Ω

Amplification Factor 1 THD < 0.001%

Signal-to-noise ratio > 100dB

Output Output (1% THD) 3.5 V
