Protection from the bad.

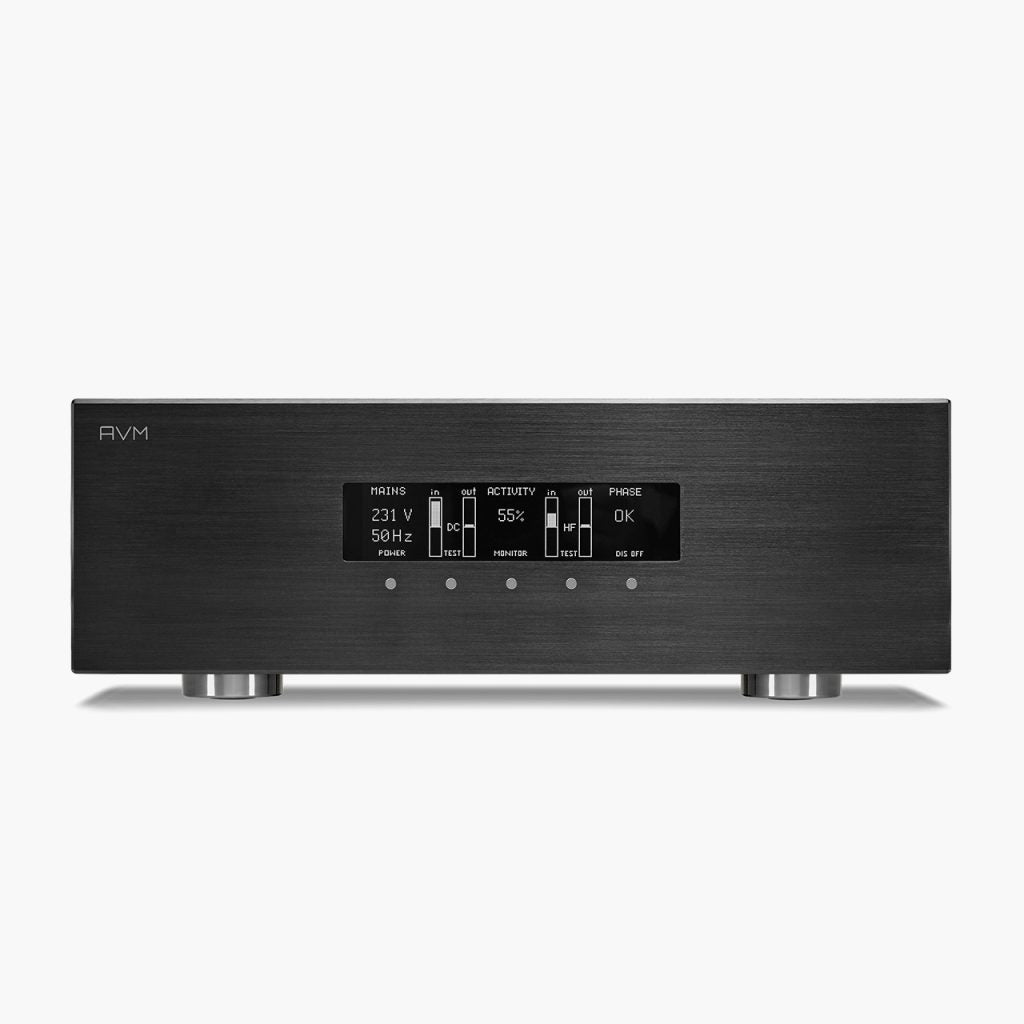

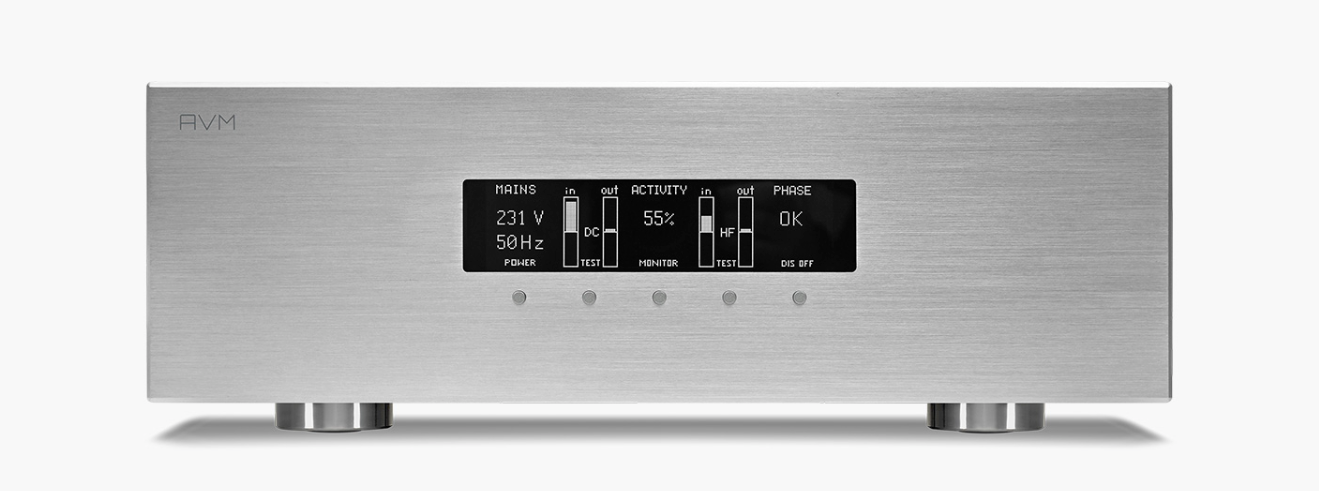

The AVM Power Conditioner PC 3.3 and PC 5.3 are innovative power filter solutions specially designed to eliminate high and low-frequency disturbances from the power grid. This ensures a clean power supply for sensitive audio and video equipment, resulting in improved sound quality. Both models feature a graphical OLED display that continuously monitors and displays the quality of power. The power conditioners also offer numerous safety features, including surge protection and active phase detection, to protect the connected devices.
Clean energy for perfect sound quality.
MAINS CONDITIONING
DC filter directly at the device input of the power conditioner removes unwanted DC components from the mains supply, effectively eliminating mechanical transformer hum.
The individual HF mains filtering with common mode chokes and film capacitors is designed separately for each connection and effectively suppresses mutual interference between the connected devices.
Crosstalk between the connected devices is efficiently suppressed
SAFETY
Active phase detection at the input: Activation of the outputs is only possible if PE (protective earth) is connected and the mains phase is correct, otherwise an error message is shown on the display
Overcurrent protection for N and L against PE (protective earth)
RCD circuit breaker can be operated for resetting on the underside of the device (residual current protection, overcurrent protection), if triggered, the message appears on the display)
Low power outputs for source devices are additionally protected by externally accessible fuses
Overvoltage protection against up to 6000 A in 30 msec
OPERATION
Conditioner activity is shown in the display (0-100%)
Conditioner activity is also displayed acoustically when a button is pressed
The applied power quality is continuously analyzed and displayed (mains voltage & frequency, DC offset, HF)
Operation of all functions via 5 buttons below the display
ON / STANDBY can be operated via AVM RC3 or RC 5: Connected devices are switched on with a time delay. The IR sensor can be deactivated if the remote control option is not required
Power down sequence via remote control: Power down is delayed so that settings of the connected devices can still be saved
Resettable RCD (residual current device) under the device (easy to feel)
Main power switch on the rear panel (mains switch)
OUTPUTS
Outputs are switched sequentially (Low-Power / Power1 / Power2) to limit inrush currents, this prevents unintentional tripping of the house fuses
DISPLAY
256 x 64 white graphic OLED, can be switched off
Mains phase OK / NOT OK
Mains frequency 50/60Hz
Continuous measurement and display of the mains voltage
Continuous monitoring of the power quality on DC in/out, displayed as a bar graph
HF components are measured and continuously displayed (bar graph)
Numerical display of conditioner activity (0-100%) shows the current load on the correction circuit
Acoustic display of the activity via a sound transmitter (acoustiliser), can be activated as required for control purposes
Demo buttons for DC and HF: Bridges DC filter and HF filter for direct listener comparison
TECHNICAL DATA
Outputs 4+8
Dimensions (B x H x T) 430 x 150 x 380 mm
Weight 13 kg
| Supply voltage | 210 – 260 V, 50 / 60 Hz |
| Power consumption (in operation) | < 7W |
| Power consumption (standby) | < 0.3W |
| Max. output power (total) | 3680 W |
| Max. output current (Source Out) PC 3.3 | 2 A (total of all outputs) |
| Fuse PC 3.3 (rear panel) | 2 A T (slow-blow) |
| Max. output current (Source Out) PC 5.3 | 2 x 2 A (total of all outputs) |
| Fuse PC 5.3 (rear panel) | 2x 2 A T (slow-blow) |
| Max. output current (POWERAMP Out) PC 3.3 | 16 A (total of all outputs) |
| Max. output current (POWERAMP Out) PC 5.3 | 16 A (total of all outputs) |
| Note: | The total output current (sum of SOURCE and POWERAMP outputs) is limited to 16 A |
| Output voltage | 15 V DC +/- 2% |
| Max. output current | 4 A DC |
| Dimensions (PC 3.3)(WxHxD) | 430 x 115 x 390 mm |
| Dimensions (PC 5.3)(WxHxD) | 430 x 149 x 390 mm |
| Warranty | 2 years |
