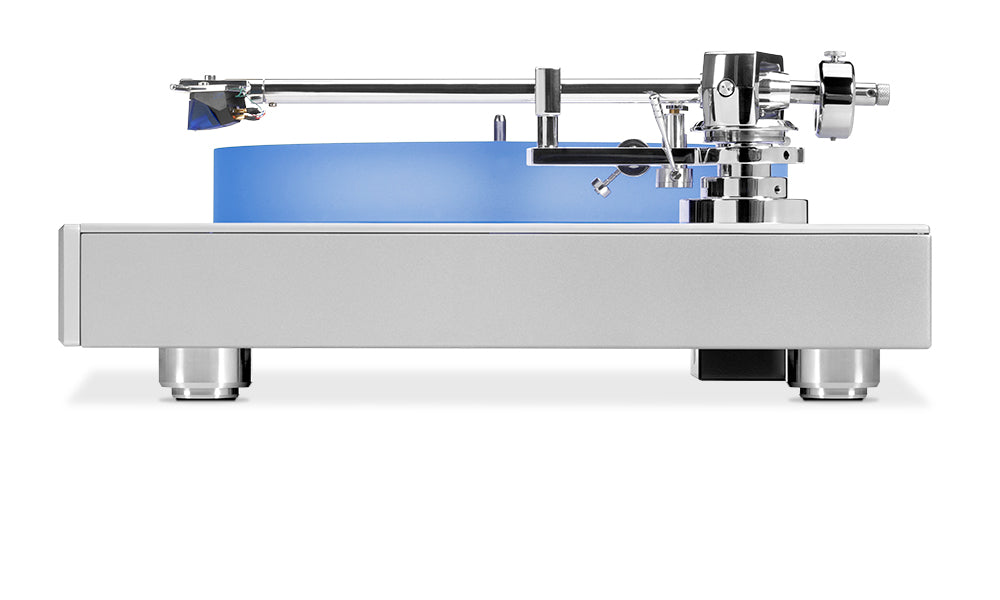

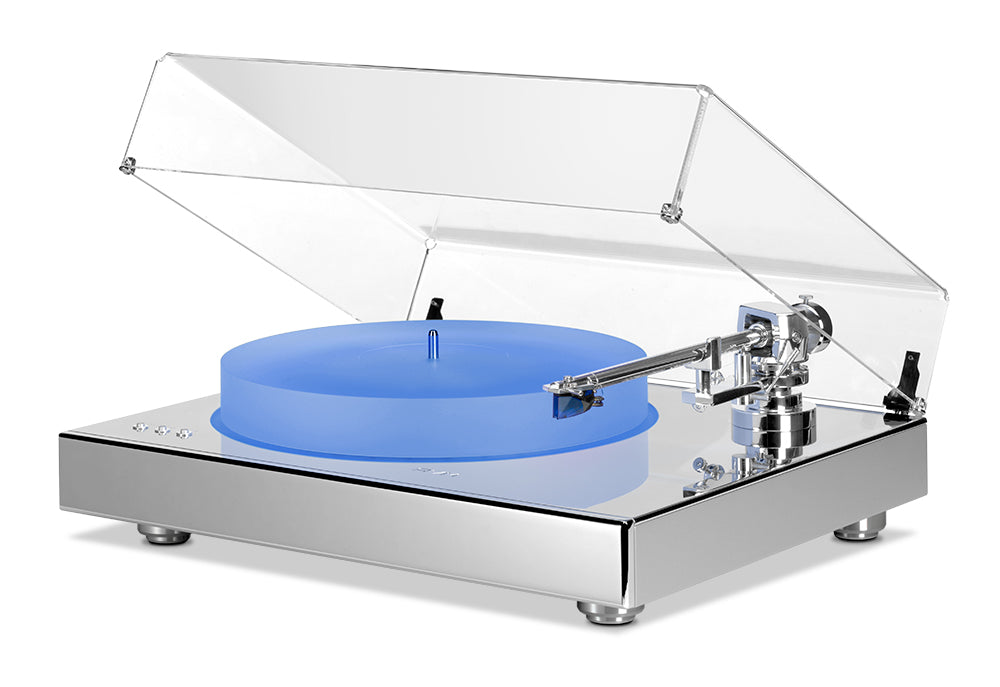

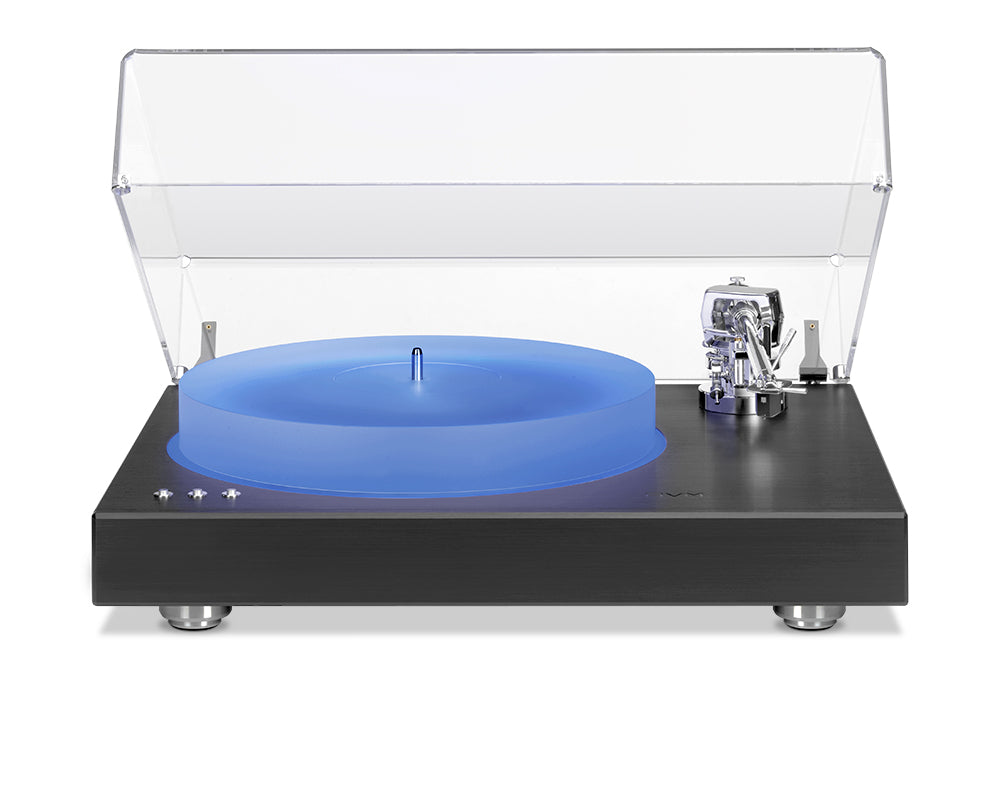

The R 5.3 MK2 is an audiophile high-end turntable with a specially designed AVM tonearm and an AVM Elipso Centric Belt Drive for real vinyl connoisseurs.

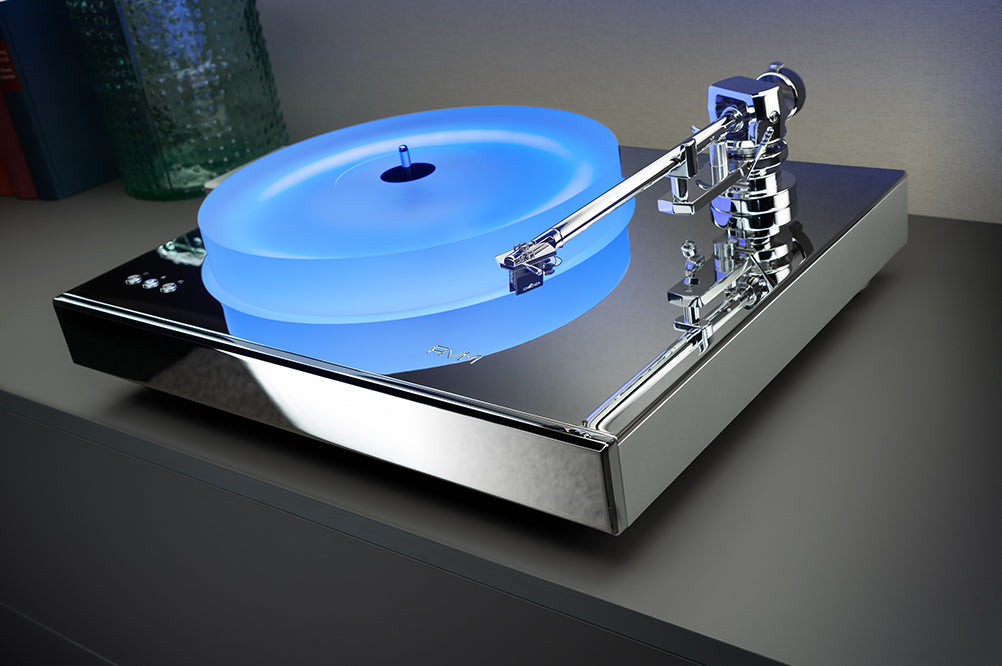

Equipped with a specially designed AVM 10″ tonearm, the ROTATION R 5.3 MK2 features an Elipso Centric Belt Drive with zero tilting moment on the axle. The ROTATION R 5.3 MK2 further sparks a cocktail of cleverly designed and well-built solutions combined with an aesthetically unique appearance where the illuminated acrylic platter and the aluminum-enforced composite frame are only the most striking details.

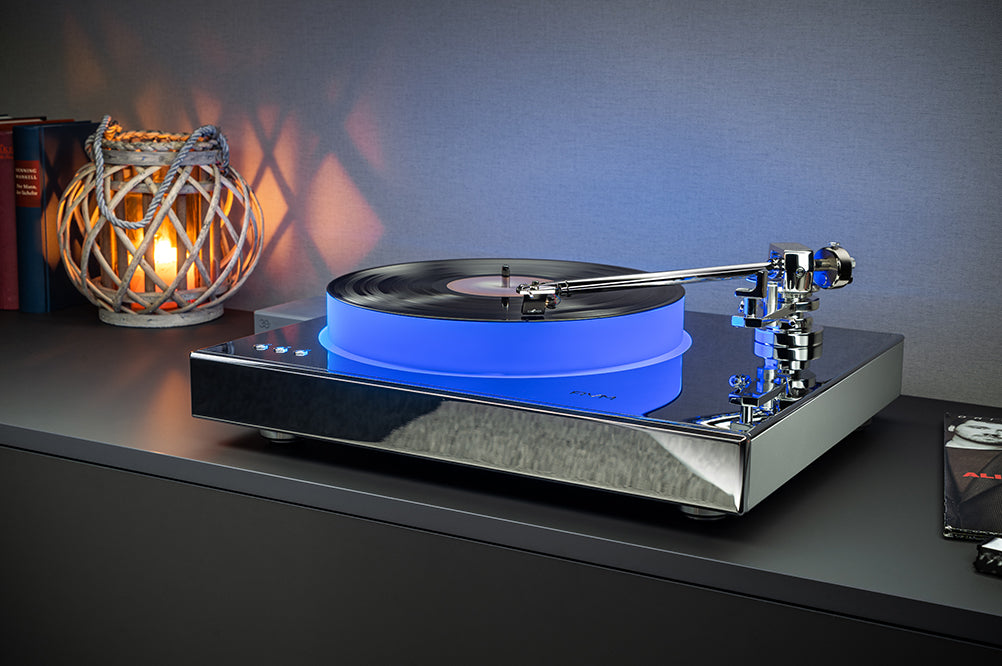

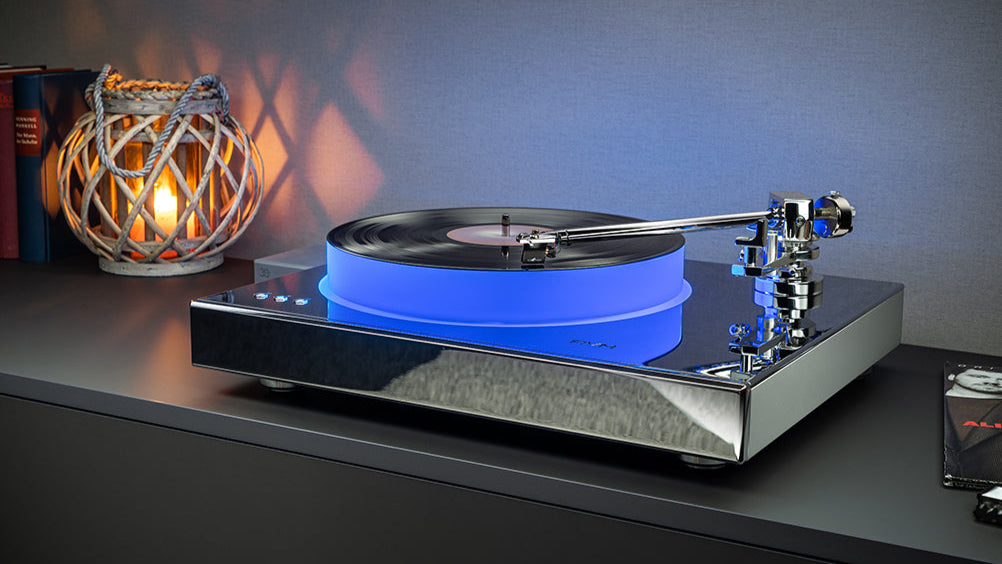

Enhance your listening space with the ROTATION R 5.3 MK2’s brand-new RGB turntable lighting. The included remote gives you complete control over the ambiance, allowing you to easily set the perfect color, dim the light, or turn it off for the ultimate personalized listening experience.
The first record players in the history of AVM are a contribution to the rebirth of the beloved vinyl record’s success.
Creating a purely analog source based on AVM’s in-house developments by meeting the highest demands was already a long-cherished dream and from the very beginning a matter for AVM owner & managing director Udo Besser. The development of these two purely handcrafted turntables was accompanied by a new, more sophisticated, and purely phono preamplifier: The compact P30 Phono Stage or the modular OVATION PH 8.3 Flagship Phono Stage. Simultaneously, AVM introduces upgrades already for all the renowned phono stages in various AVM products. Both the ROTATION R 2.3 MK2 and the ROTATION R 5.3 MK2 flagship model feature completely own tone arms exclusively designed by AVM.
The ROTATION R 5.3 MK2 turntable at a glance
- Elipso-Centric Belt Drive

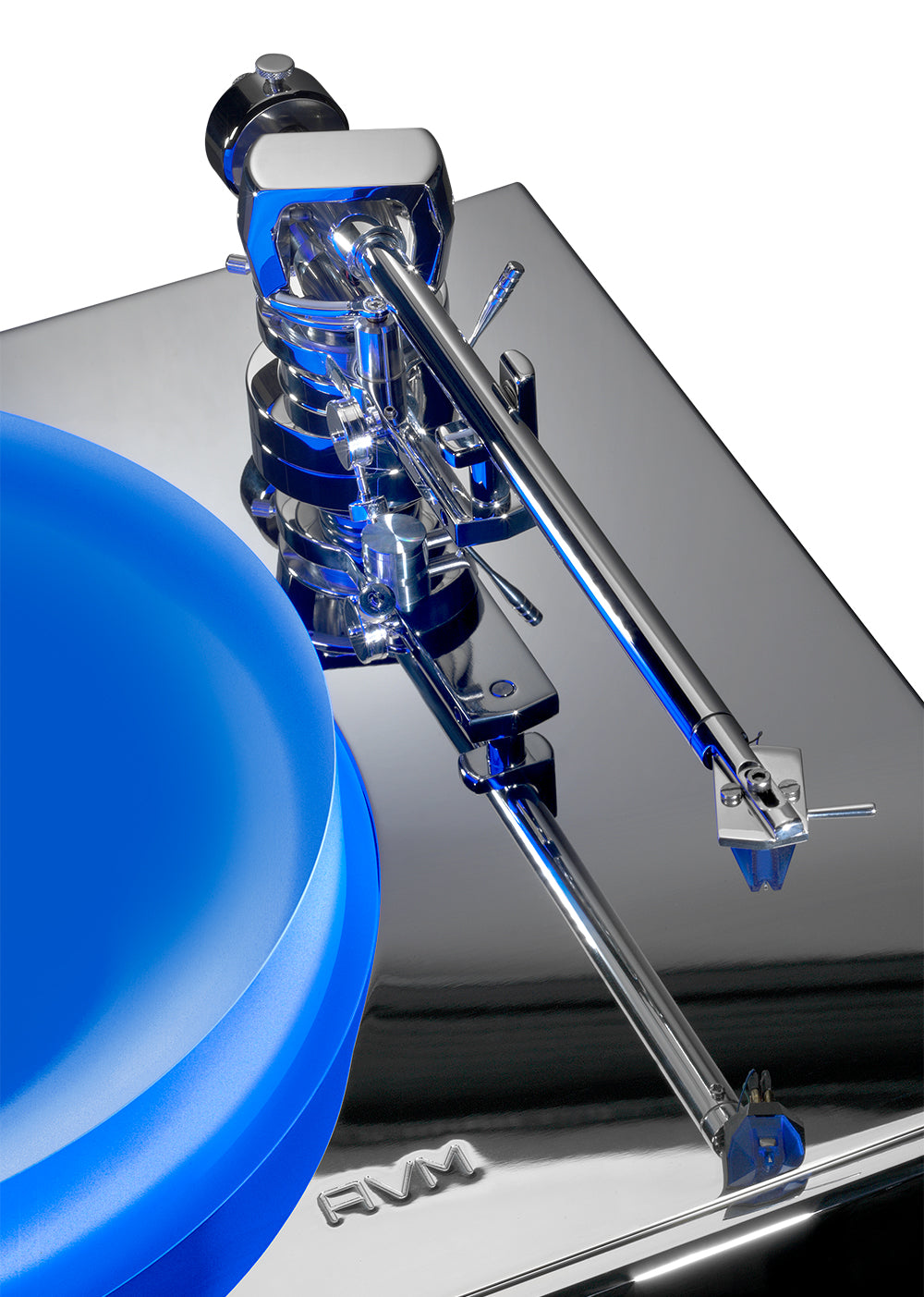

- 10″ aluminium polished AVM tone arm (gimbal-mounted)
- Tilting moment in the platter axis 0,0
- Massive 60 mm HDF composite frame with aluminum cover
- Spring-mounted drive on height-adjustable damper feet
- 33/45 RPM look forward servo control

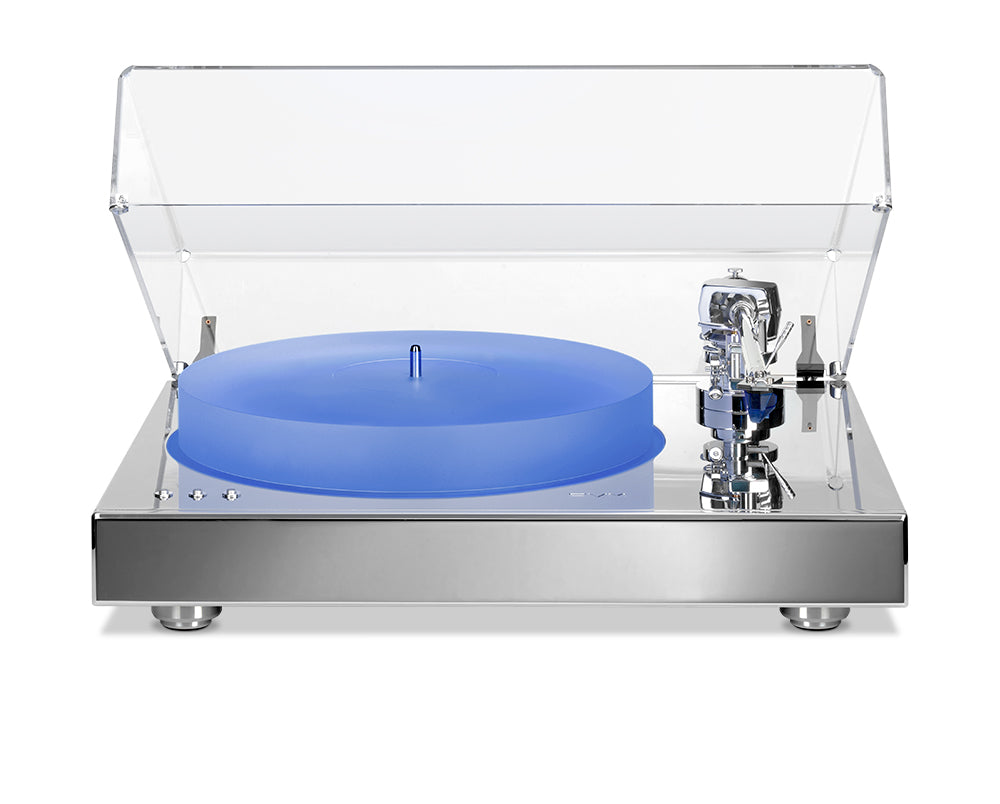

- Resonance-free dust cover made of curved acrylic glass
- Dimmable and switchable RGB platter light (all colors)
- Comes without cartridge
- Recommended cartridge system: AVM Cadenza Black (made by Ortofon)
- External power supply

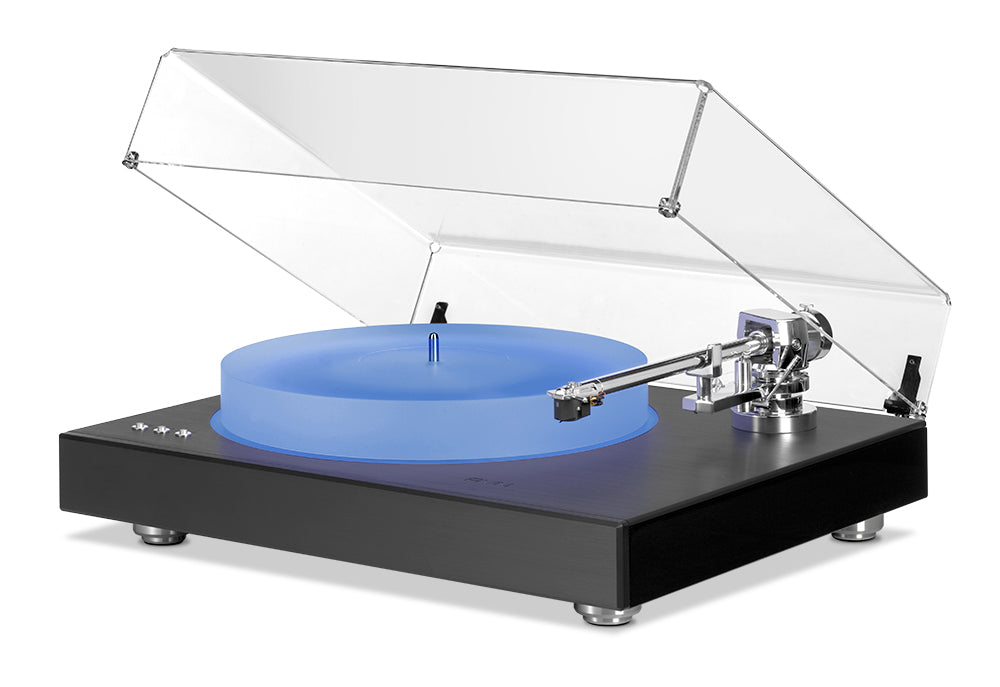

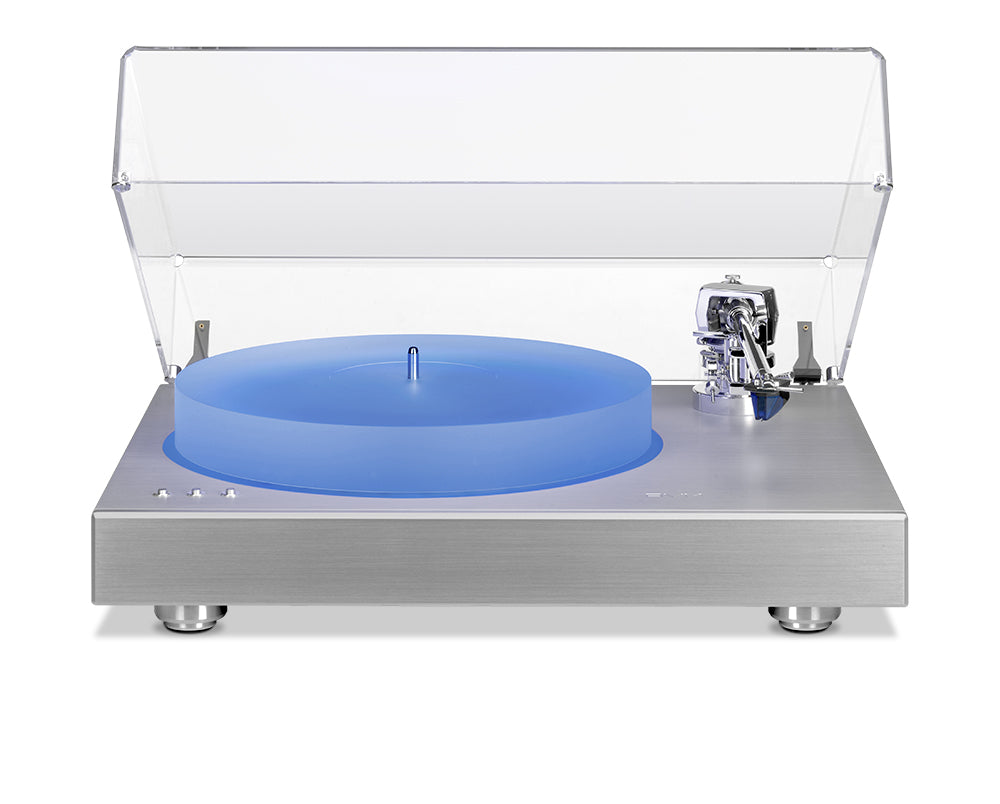

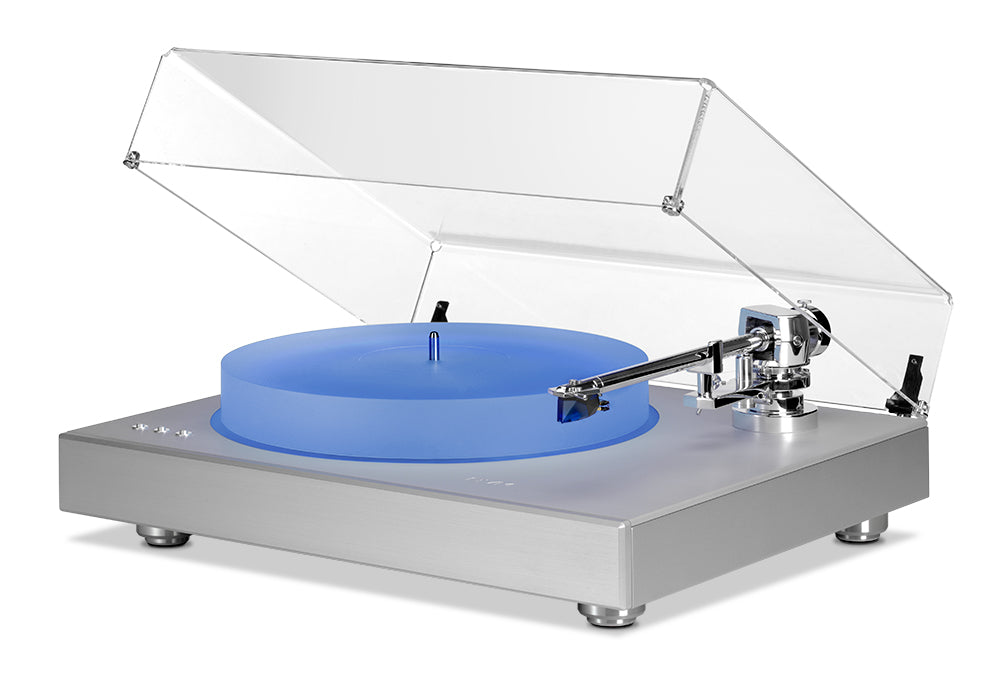

- Standard versions: silver & black
- Warranty: 2+2 years with online registration (cartridges are excluded from warranty)
Specifications
| Analog Outputs |
1 x RCA |
|---|---|
| Effective Tonearm Mass |
15 g |
| Effective Tonearm Length |
254 mm |
| Signal to Noise |
-72 dB |
| Overhang |
16 mm |
| Downforce Range |
0 – 35 mN, 0 – 3.5 g |
| Supplied Counterweight |
For cartridges 6 – 16 g |
| Headshell |
0,5‘‘ (12,7 mm) Standard |
| Speed Variance |
33rpm: ± 0.12 % max, 45rpm: ± 0.10 % max |
| Wow and Flutter |
33rpm: ± 0.10 % max, 45rpm: ± 0.09 % max |
| Mounting Distance |
238 mm (Platter – Tonearm Base, Linn Standard Mount) |
| Nominal Speed |
33/45 rpm, electronic speed change (microprocessor-controlled) |
| Power Consumption |
15 V DC/1.6 A (100-240 V AC, 47 – 63Hz) |
| Finish |
Aluminium Black + Ortofon Cadenza Black MC Cartridge, Aluminium Silver + pre-mounted Cadenza Black MC Cartridge, CELLINI Chrome + Ortofon Cadenza Black MC Cartridge, Aluminium Silver, Aluminium Black, CELLINI Chrome |
| Product Dimensions |
390 x 470 x 175 mm (L x W x H) |
| Product Weight |
17 kg (Chassis: 12 kg, Platter: 5 kg) |
| Product Line |
ROTATION |
