Perlisten Audio D3is In Wall/On Wall Subwoofer with Amplifier
SRP $5995 each in Matte Black
Exceptionally Good-Looking
Dynamic, accurate, fast, minimal, and exceptionally good-looking. This is the little sibling to the D8is subwoofer, which is perfect for music and movie lovers and can be used on-wall, or in-wall.
Overview

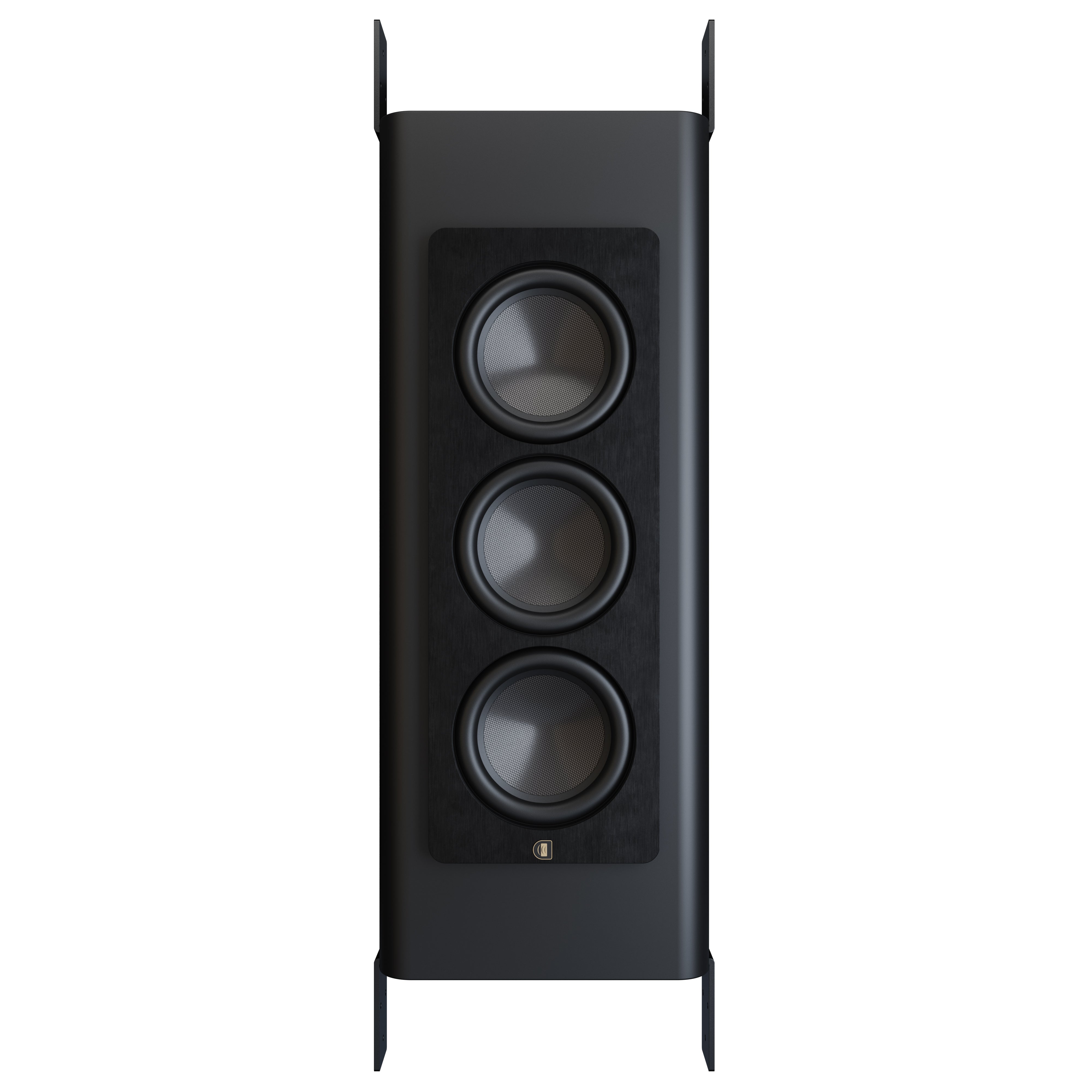

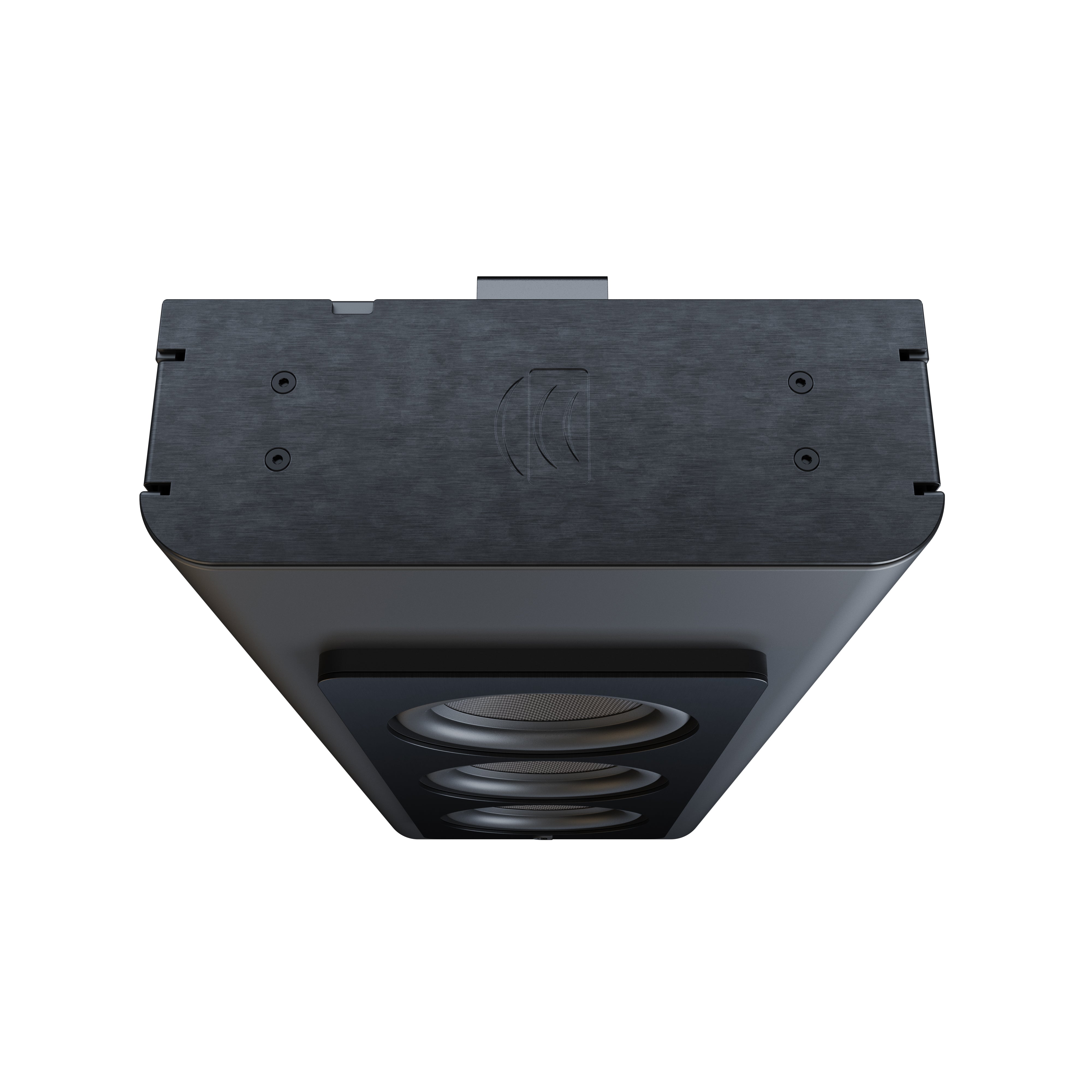

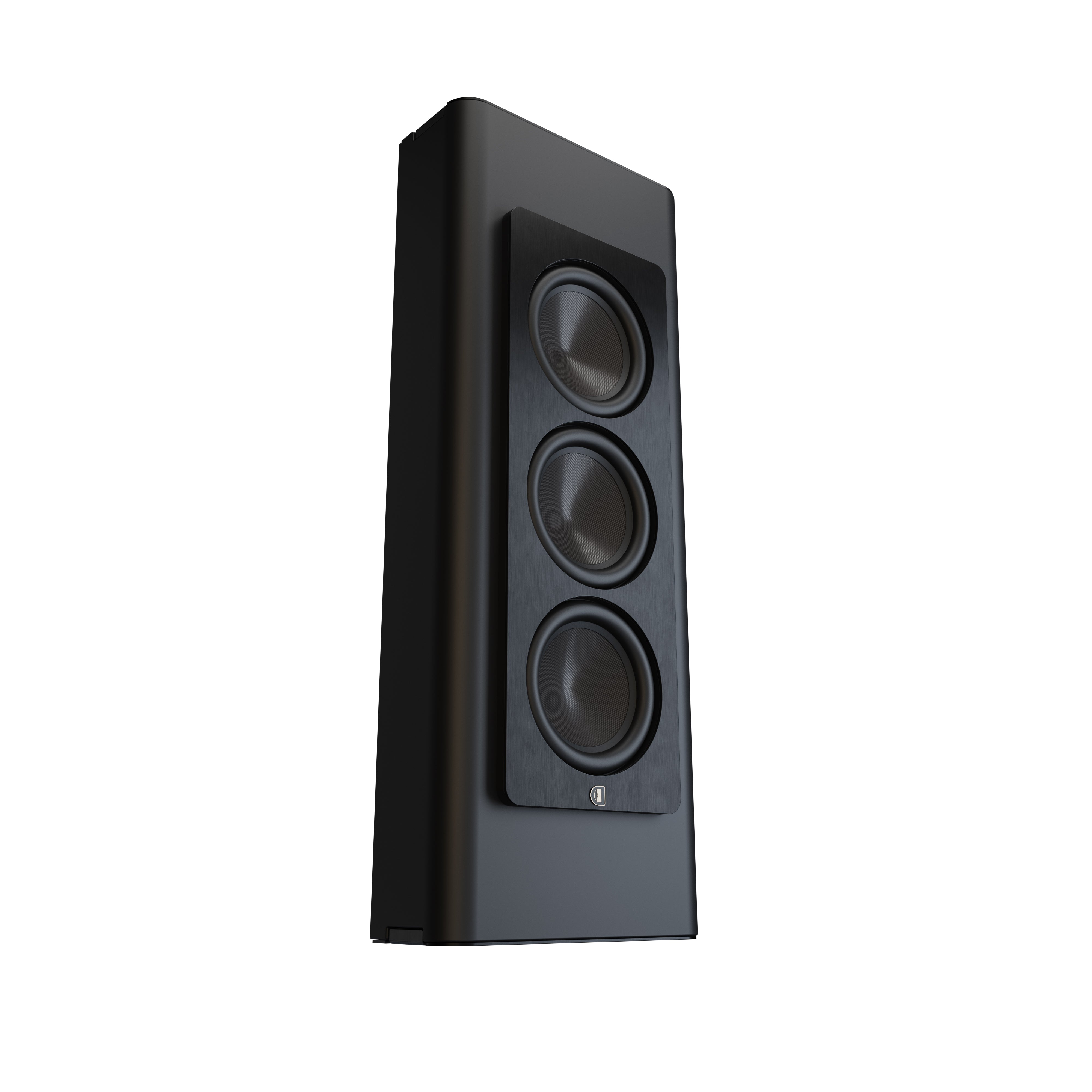

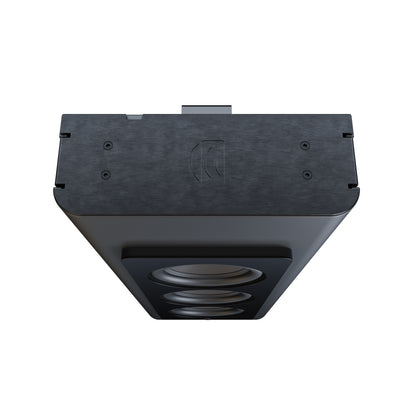

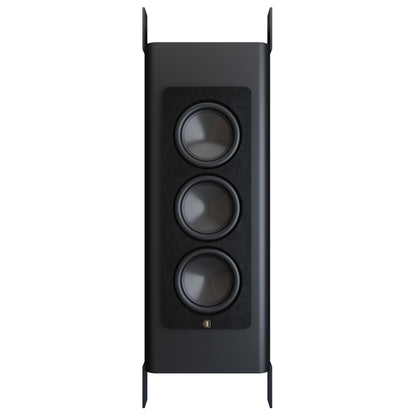

The D3is is a beautiful subwoofer made from extruded aluminum, which houses three 203mm (8″) woofers with glass fibre cones. The D3 comes with brackets to mount it on a wall or within a structure. The D3 also comes with an external DSP-controlled 1,500-watt amplifier and rack ears if you desire to mount it into a standard 403mm (19″) equipment rack. Don’t be fooled by its diminutive size. This is a highly capable and aesthetically pleasing subwoofer.
Standard finishes
Grills are optional but included.
Piano black
It's all in the details

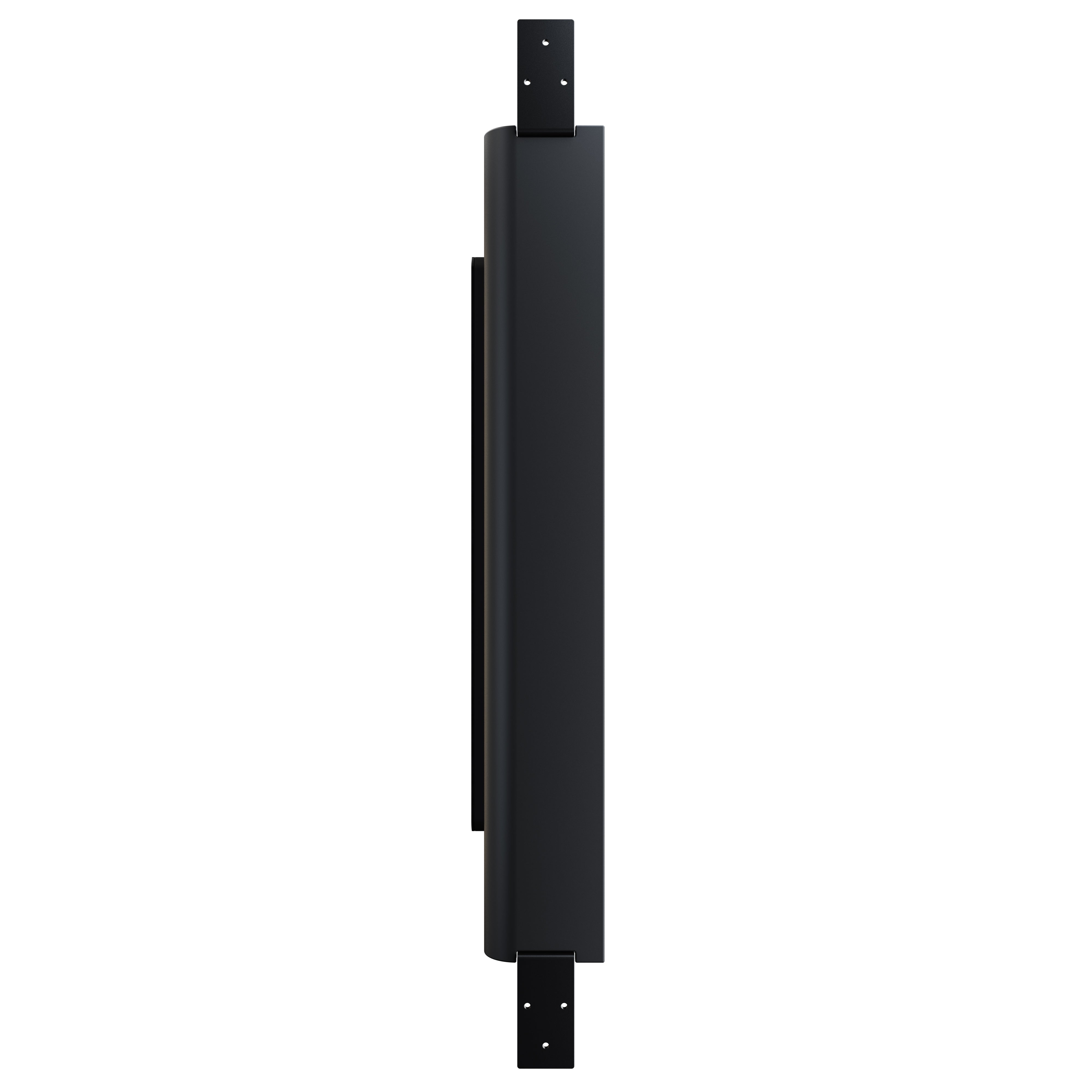

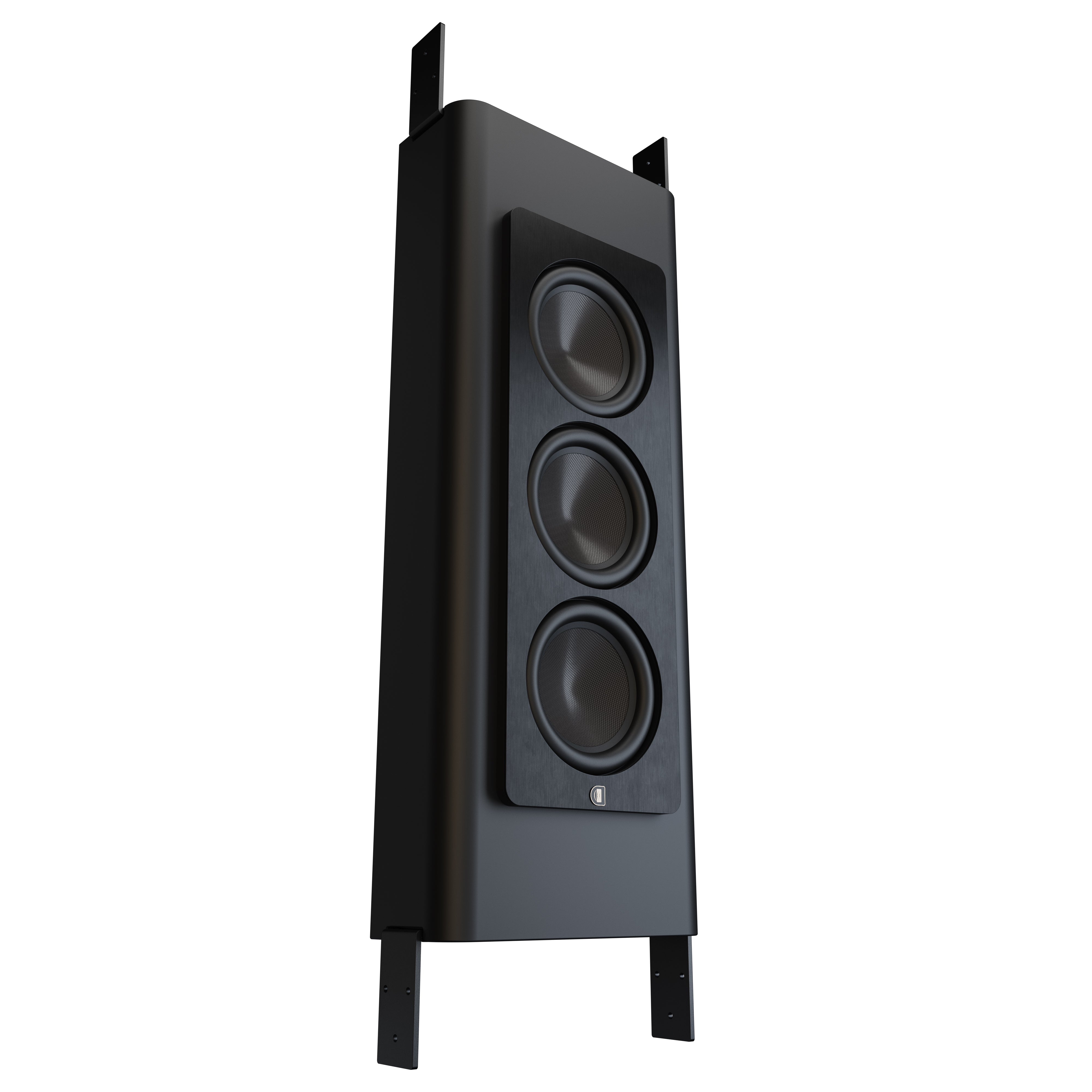

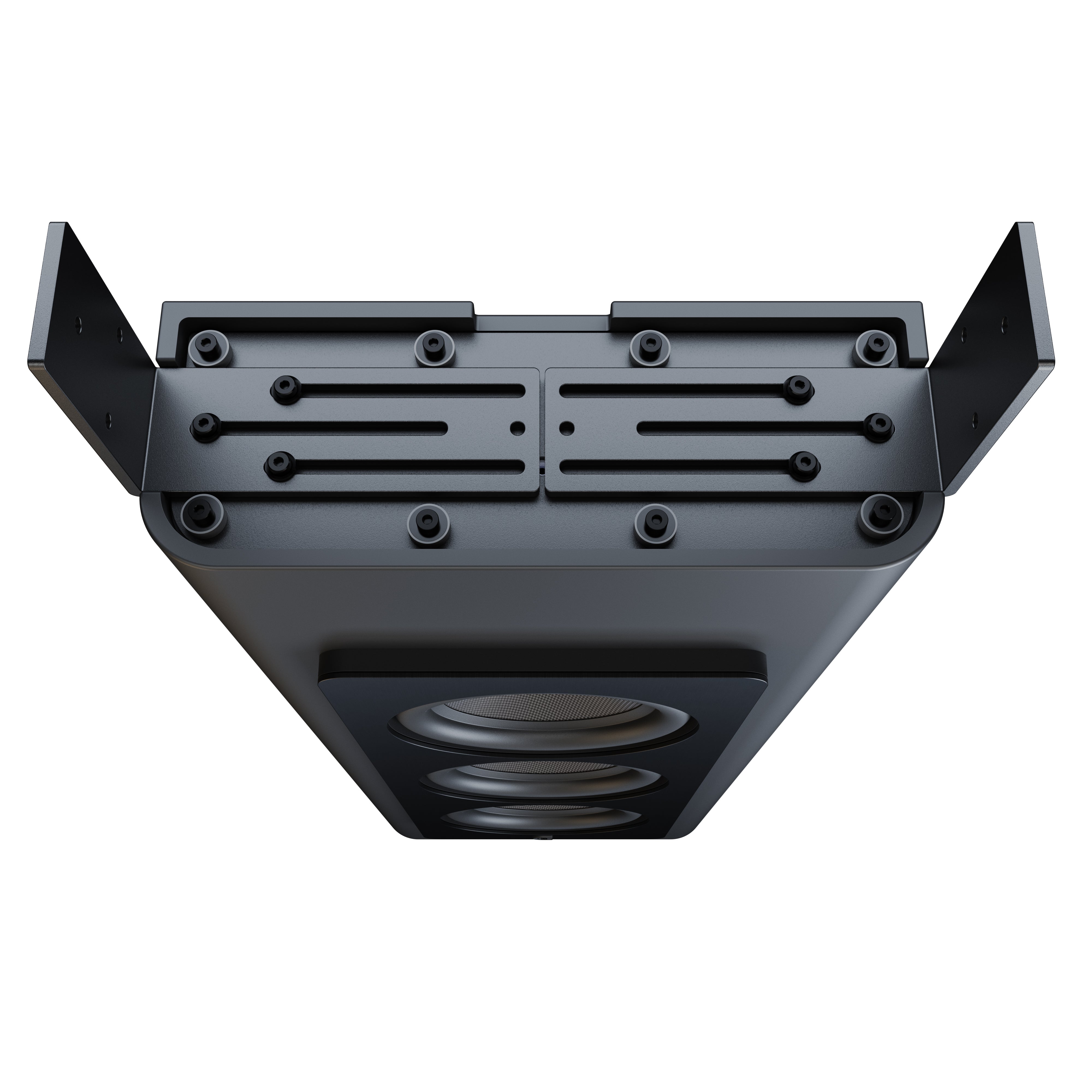

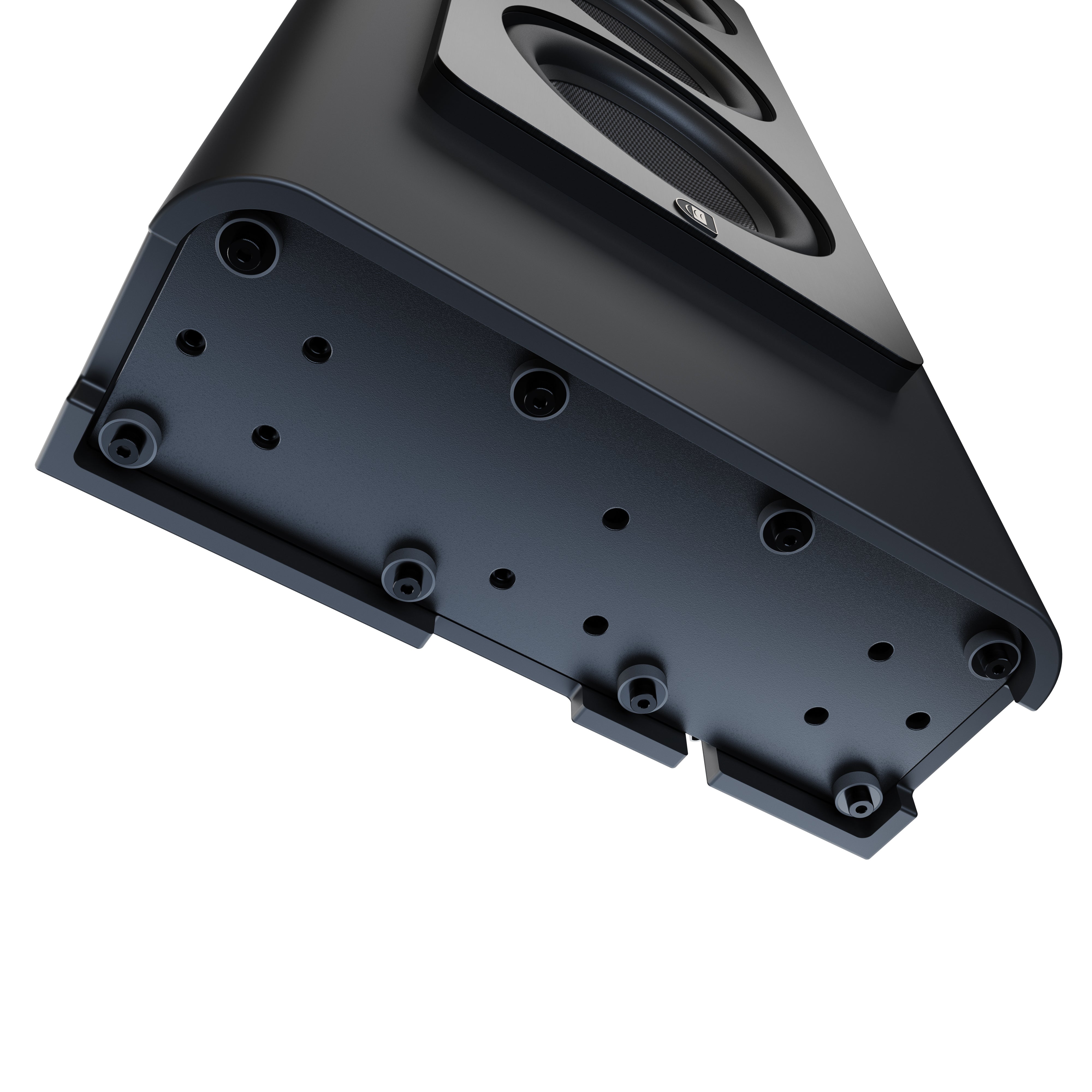

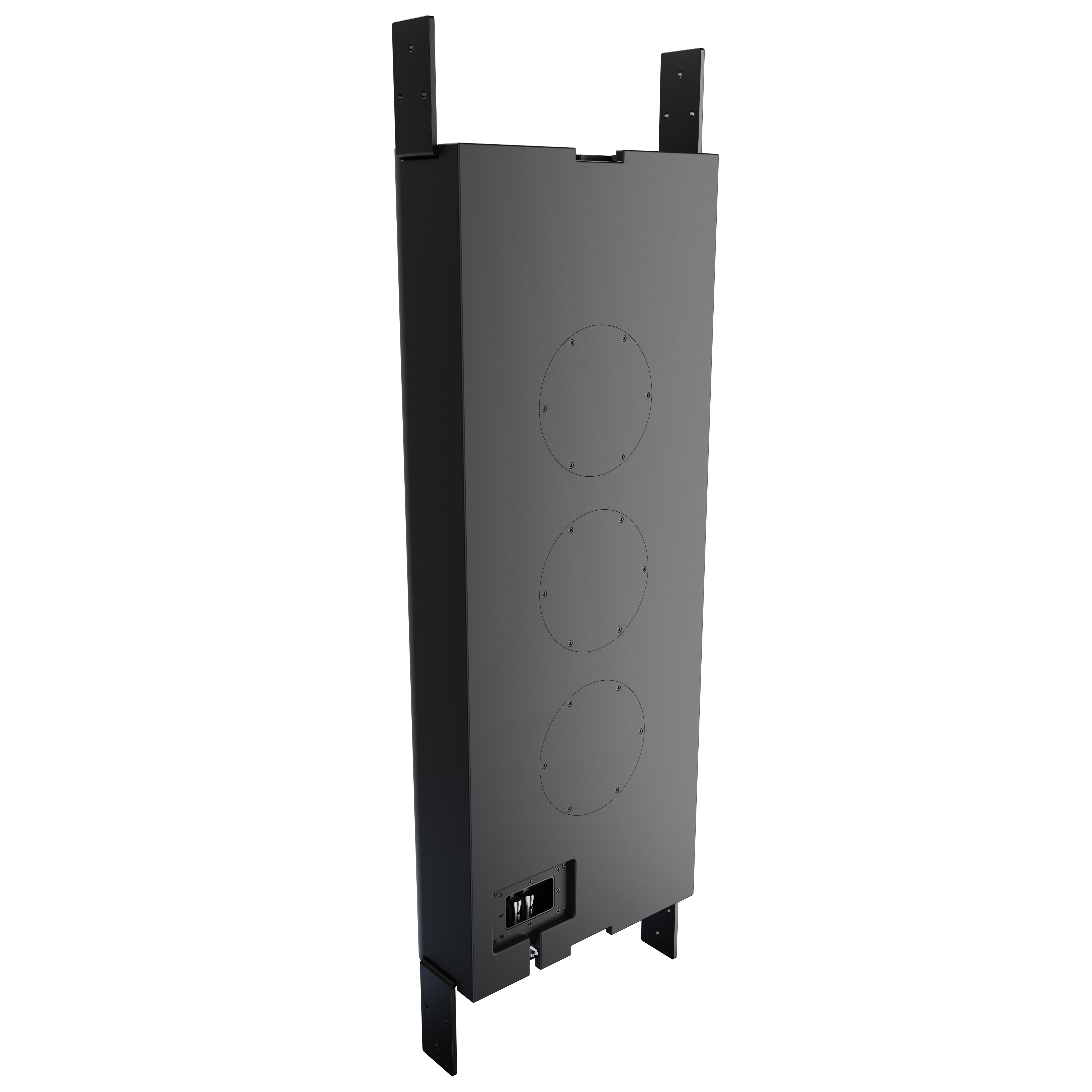

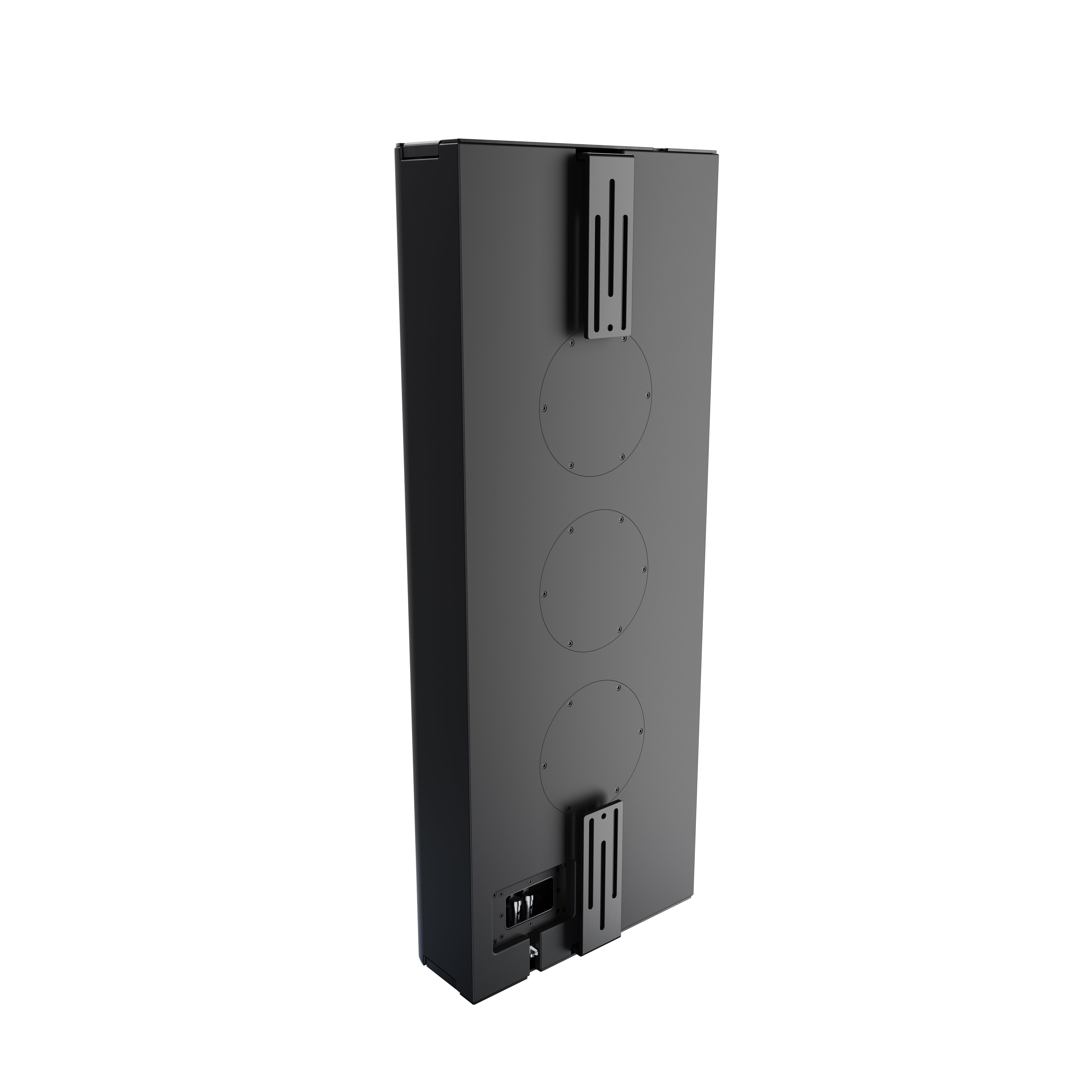

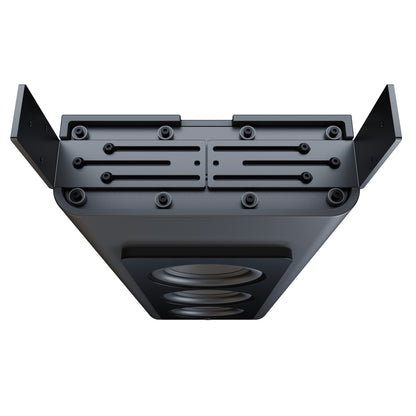

D3is – Designed for applications where space is a premium. The D3is works equally well mounted in-wall or on-wall. Proprietary isolation mounts
and brackets are designed into the enclosure to reduce overall vibration and noise from transmitting to the adjancent wall. The sub was designed
using proprietary nonlinear modeling techniques that allow us to simulate and then optimize for real world driver performance – free air and in

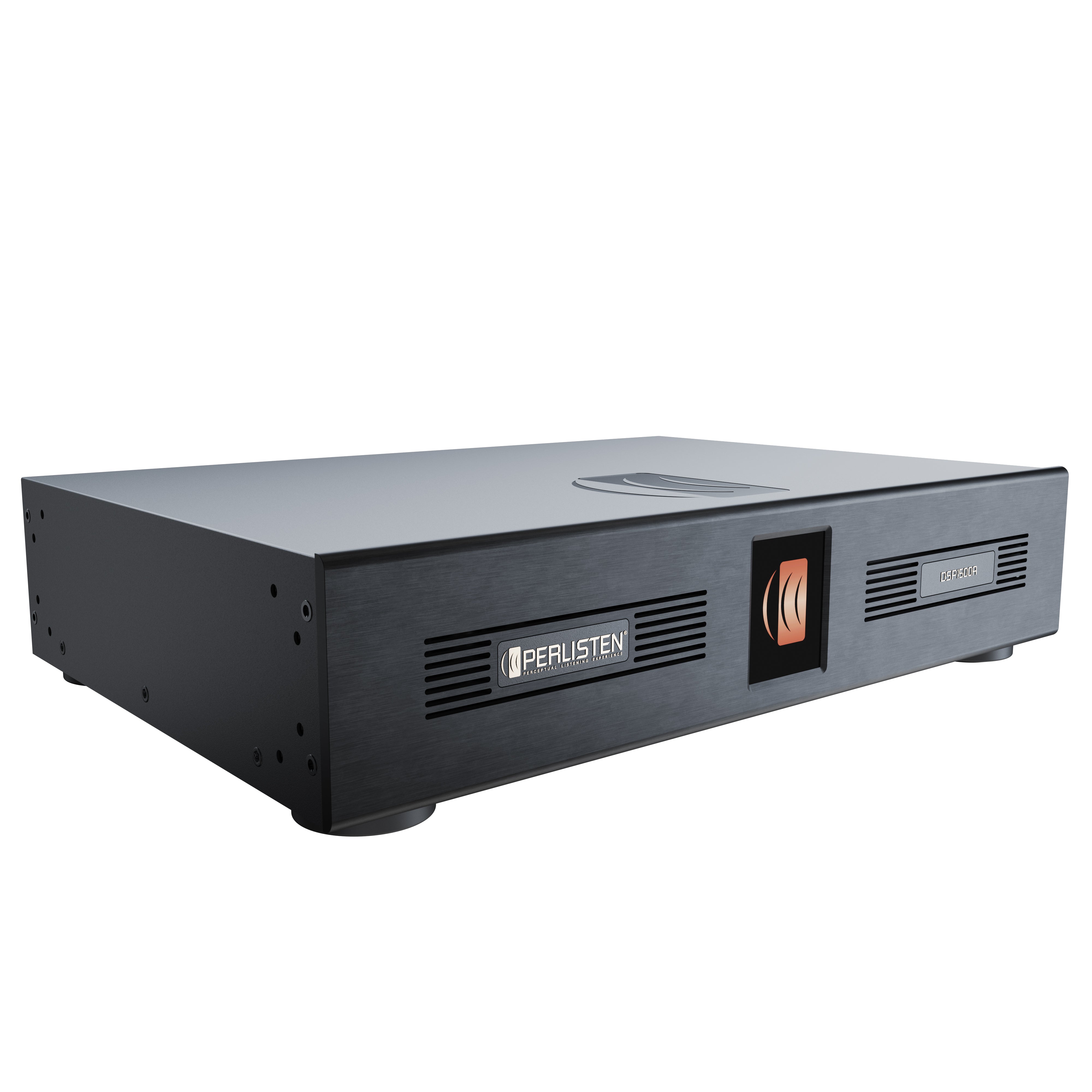

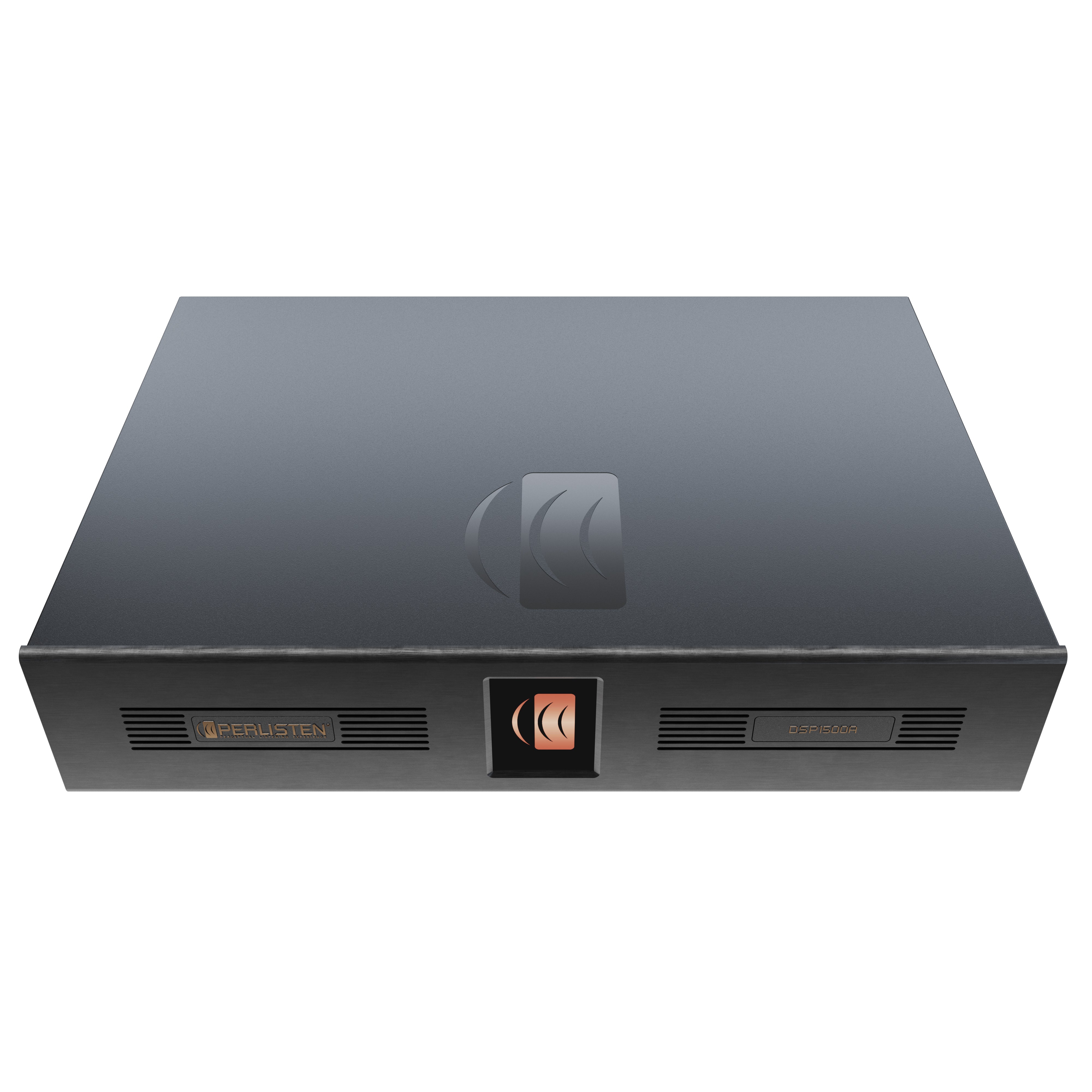

box. Further refinement is done with the aid of our Klippel laser measurement system to dial things in. Powered by our 1500W amplifier now in

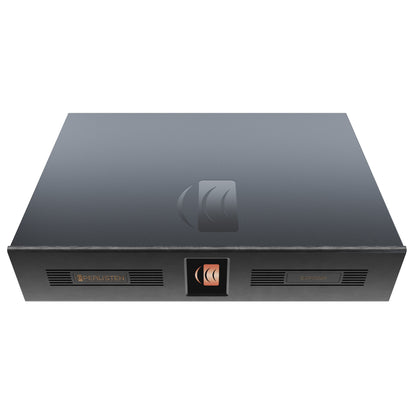

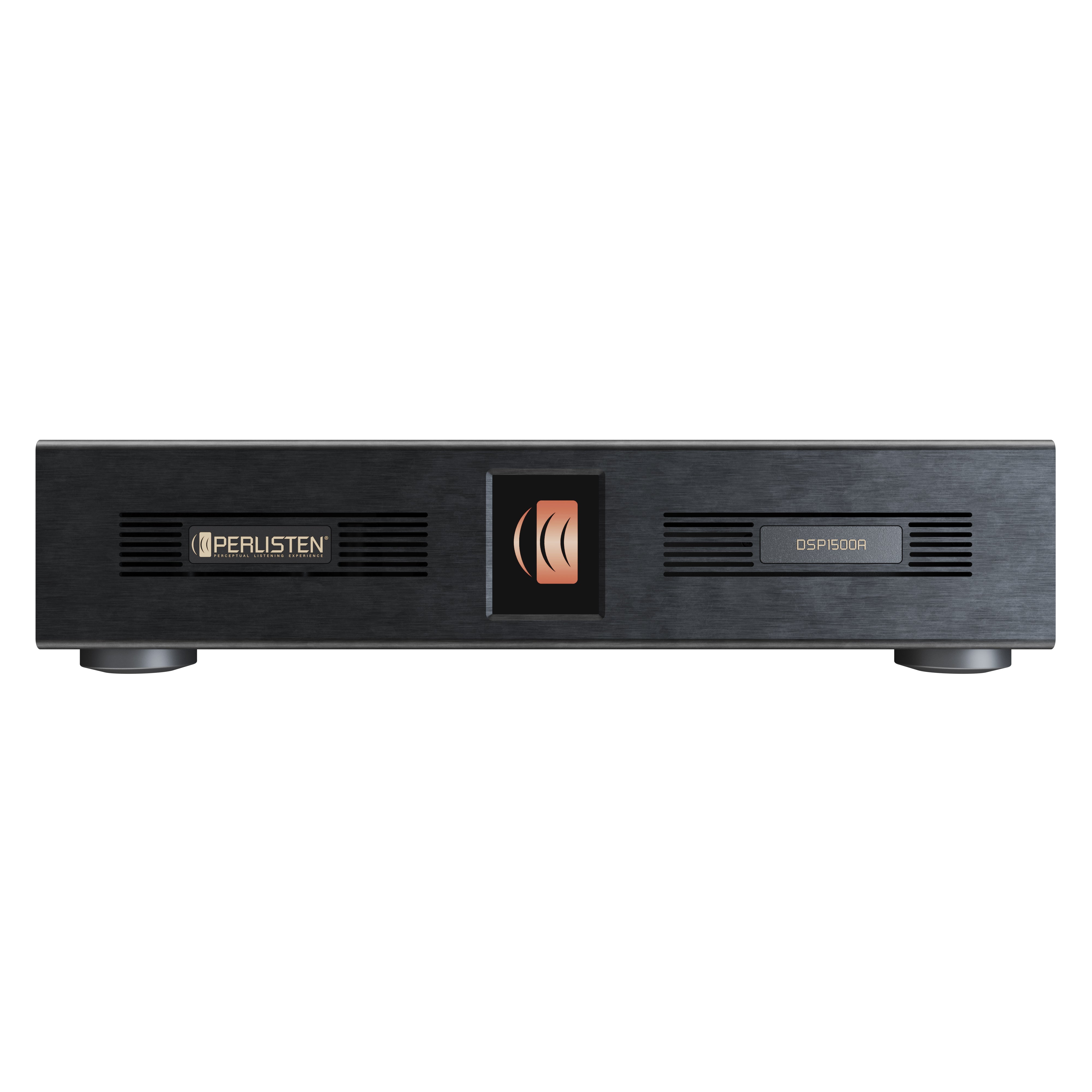

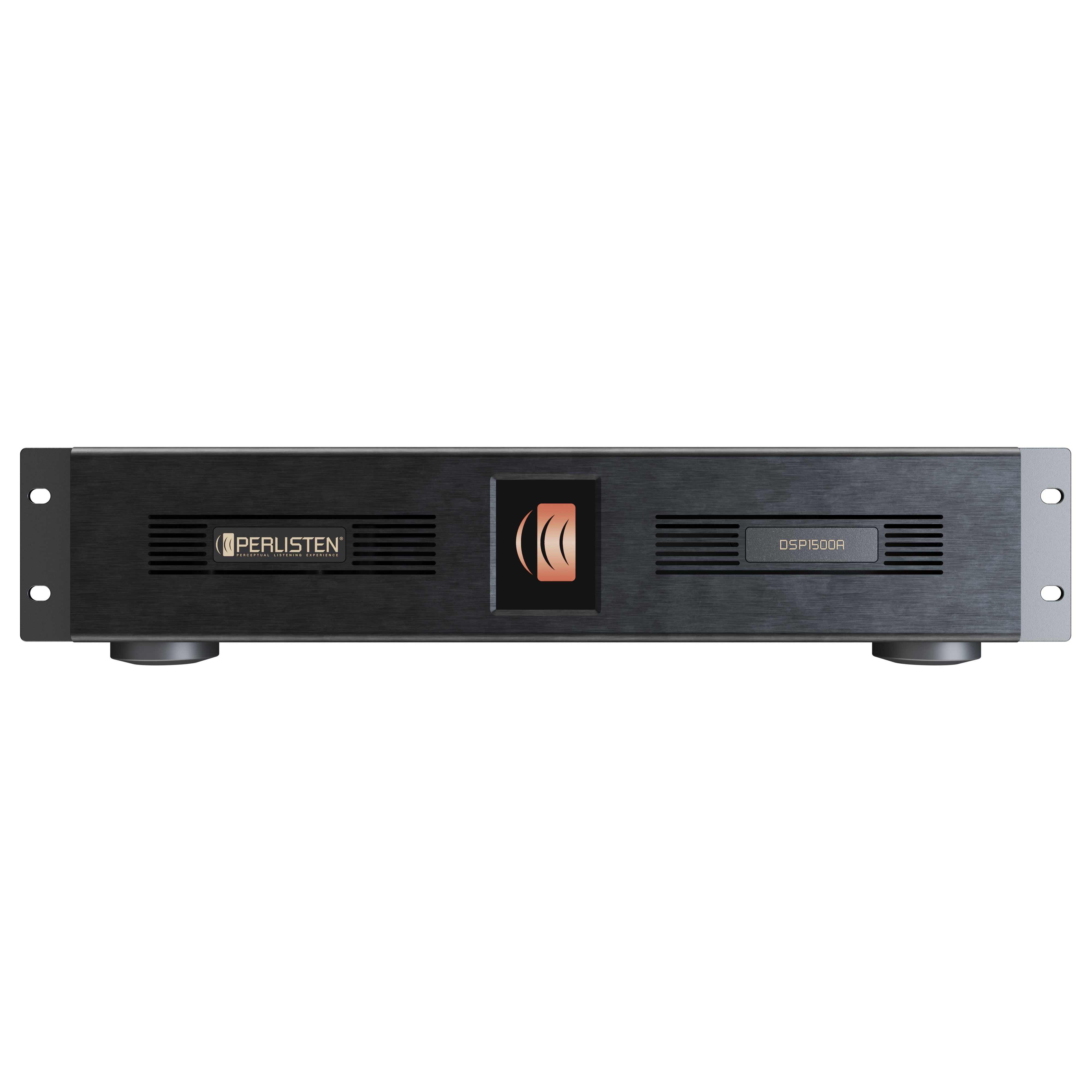

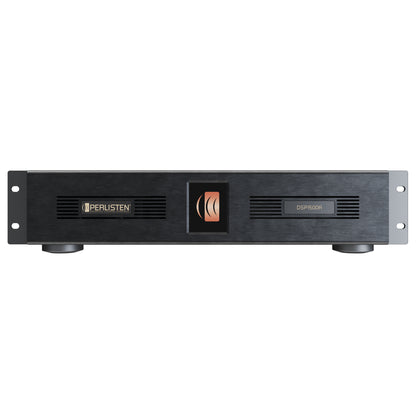

its own chasis, utilizing a larger 2.8” LCD touchscreen display. Rack mounting hardware is included. Common to all Perlisten subs, all functions
and safeties are controlled by a 48-bit data path DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds ensuring sonic accuracy
Technical specifications
See the data sheet link in the Data sheet column
| Alignment | Acoustic suspension |
| Amplifer | 1500W rms |
| Display Interface | 2.8" LCD color touchscreen |
| App | iOS and Android |
| Processor | 32-bit ARM Cortex M4, double precision floating point math |
| DSP Engine | Ti DSP 48-bit data paths |
| Driver compliment | (3)215mm (8.5"), Carbon fiber diaprhragm +/-16.9mm linear excursion |
| Reference sensitivity | 89.5 dB /150mV/ 1.0m |
| Frequency Response THX EQ Boost (Large Room) EQ Cut (Small Room) EQ |
20-290Hz (-6dB) / 16-350Hz (-10dB) 17-290Hz (-6dB) / 15-350Hz (-10dB) 31-290Hz (-6dB) / 23-350Hz (-10dB) |

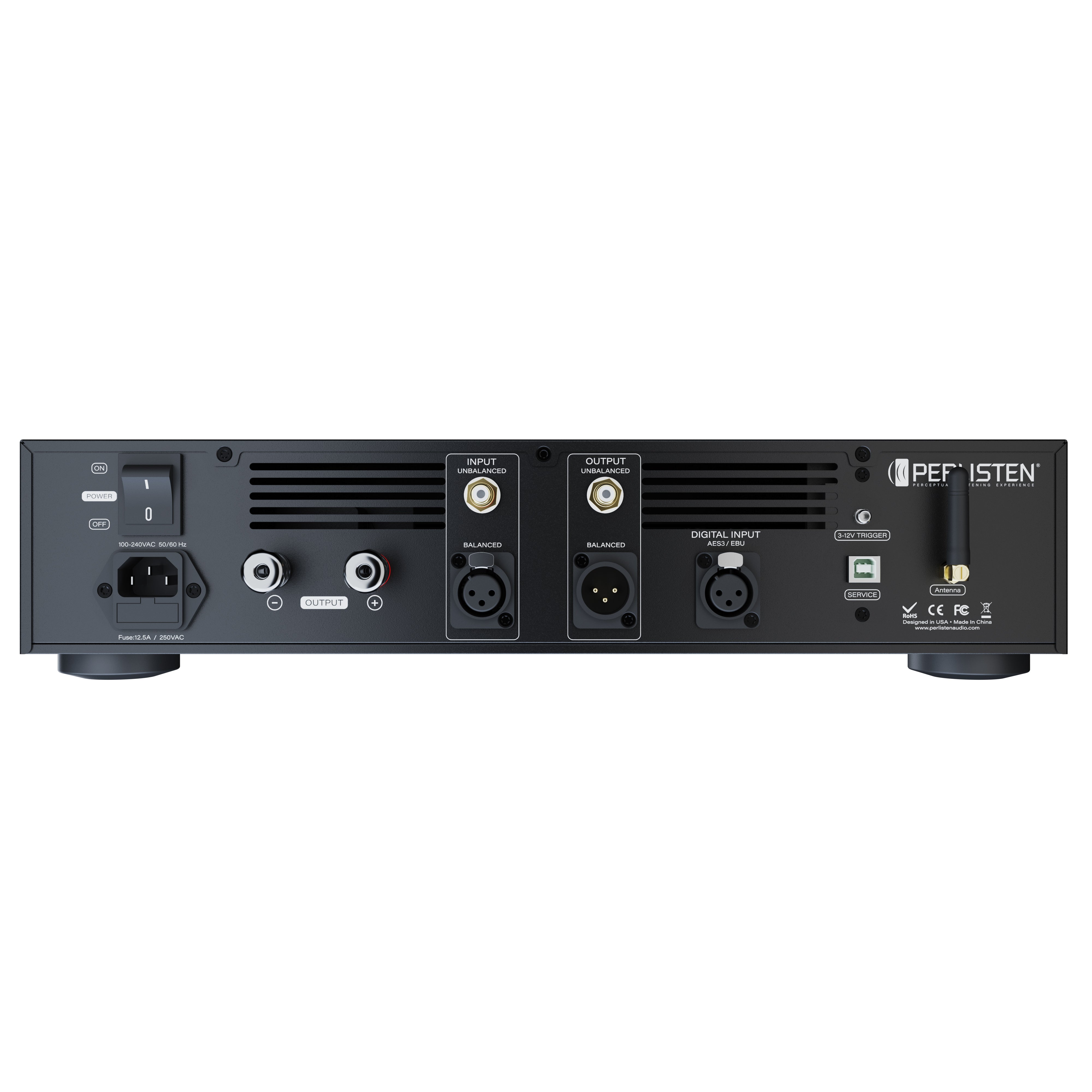

| Inputs | (1) Balanced XLR (1) Unbalanced RCA |
| Outputs | (1) Balanced XLR unbuffered (1) Unbalanced RCA unbuffered (1) Digital AES/2 |
| Parametric EQ | 10-Band PEQ with 3 user presets |
| Low Pass filter | bypass, 30-160Hz, slope 6,12,18,24dB/oct |
| Phase | variable 0-270o |
| Polarity | normal / inverted |
| Configurable Auto turn-on and 12v Trigger | XLR, RCA |
| Subwoofer Dimensions overall (HxWxD) *see architectural drawing |
920.8 x 355.6 x 146.1mm (without brackets) 36.3 x 14.0 x 5.8" |
| Amplifier Dimensions overall (HxWxD) *see architectural drawing |
89.0 x 429.2 x 322.4mm 3.5 x 16.9 x 12.7" |
| Weight NW subwoofer NW amplfier GW packaged |
39.7 kg (87.3 lbs) 6.1 kg (13.4 lbs) 53.4 kg (117.5 lbs) |
| Available Finishes | Matte black |
