Perlisten Audio D8is Subwoofer with Amplifier - In Wall/On Wall/In Room
SRP $21995 each in Matte Black
On wall - In wall - in room sub, 8x8" woofers W/DSP3000W Amp

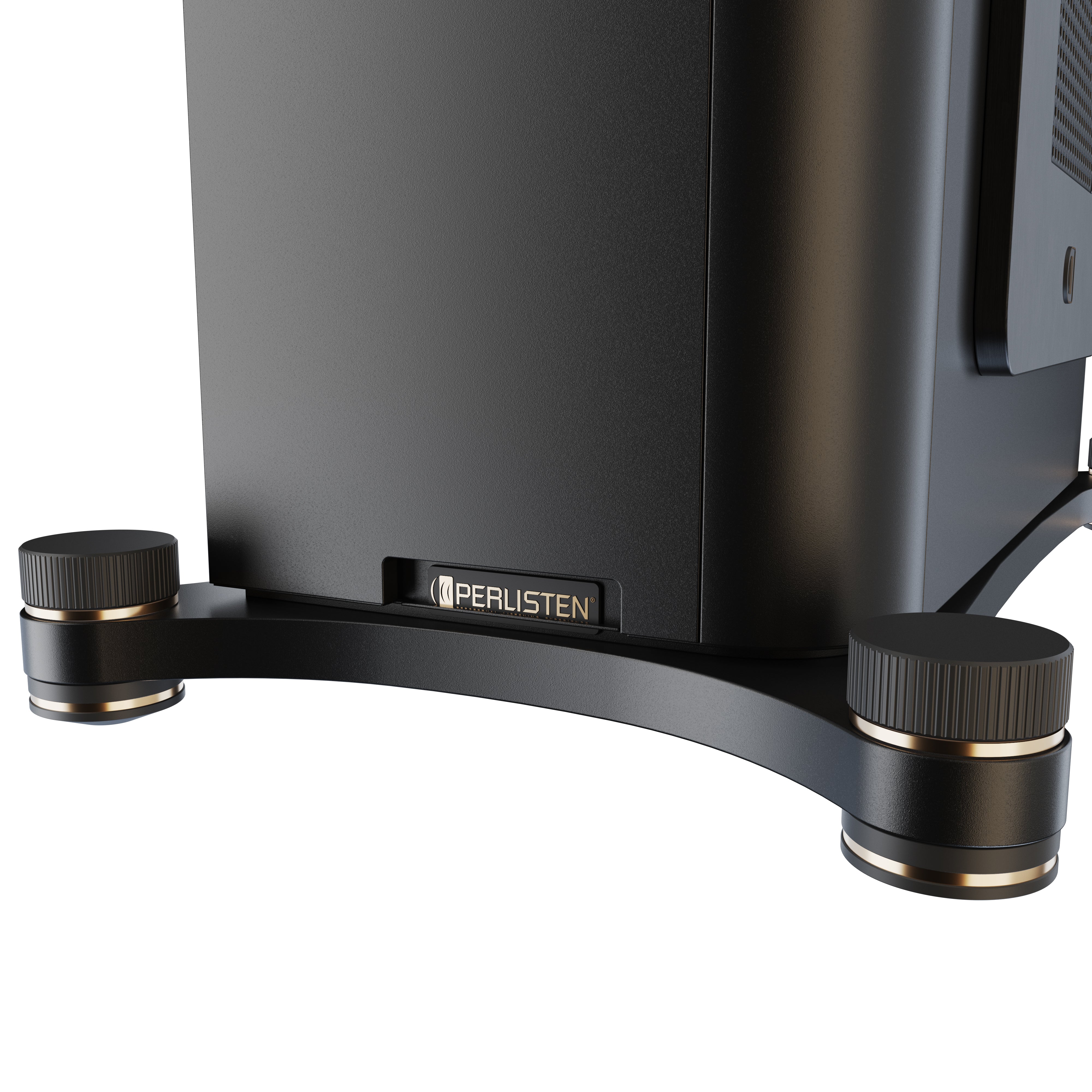

(Floor Standing Base sold separately)
D8is subwoofer
Dynamic, accurate, fast, slim, beautiful, and massive bass with minimal distortion and zero vibrations. This flagship subwoofer is perfect for music and movie lovers and can be used freestanding, on-wall, or in-wall

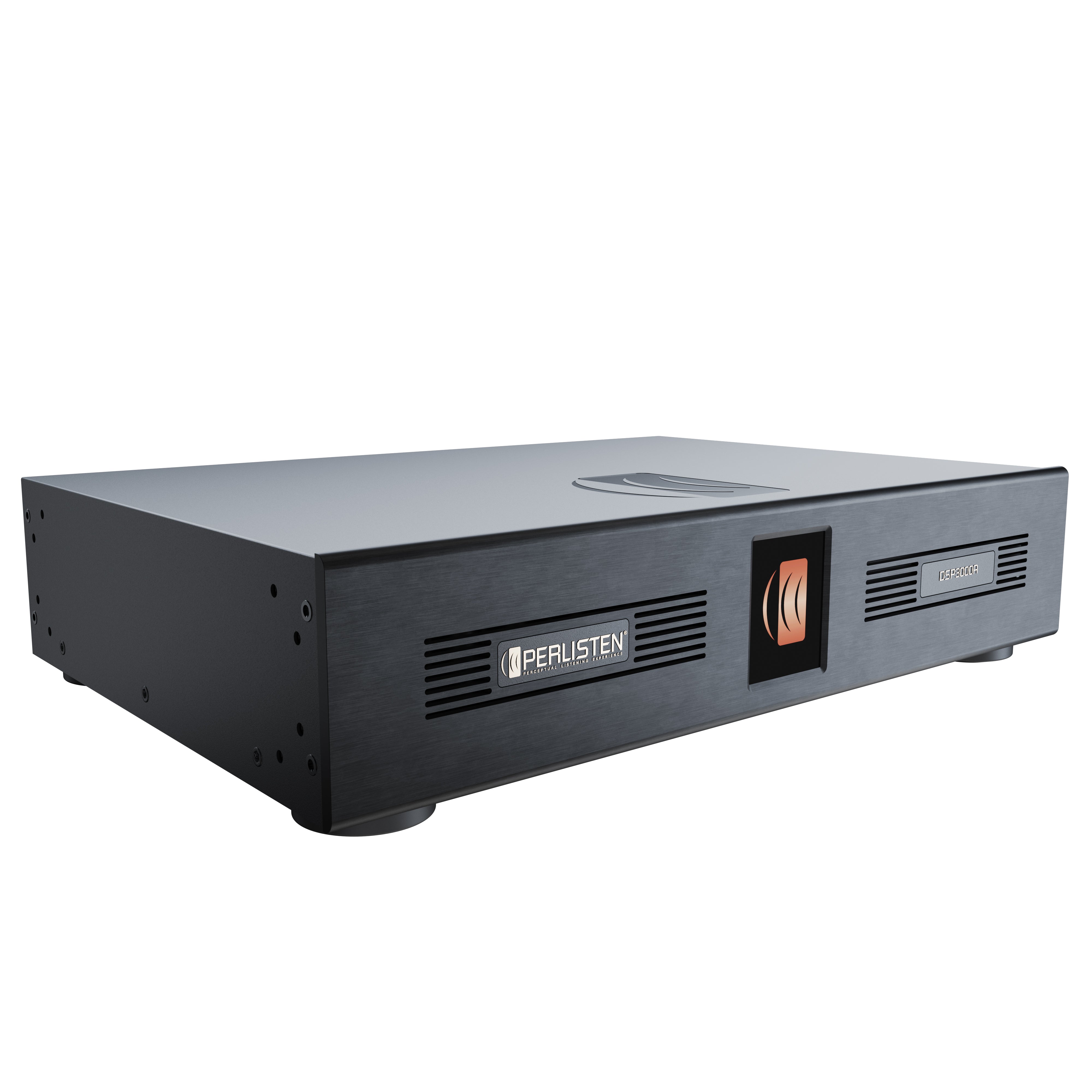

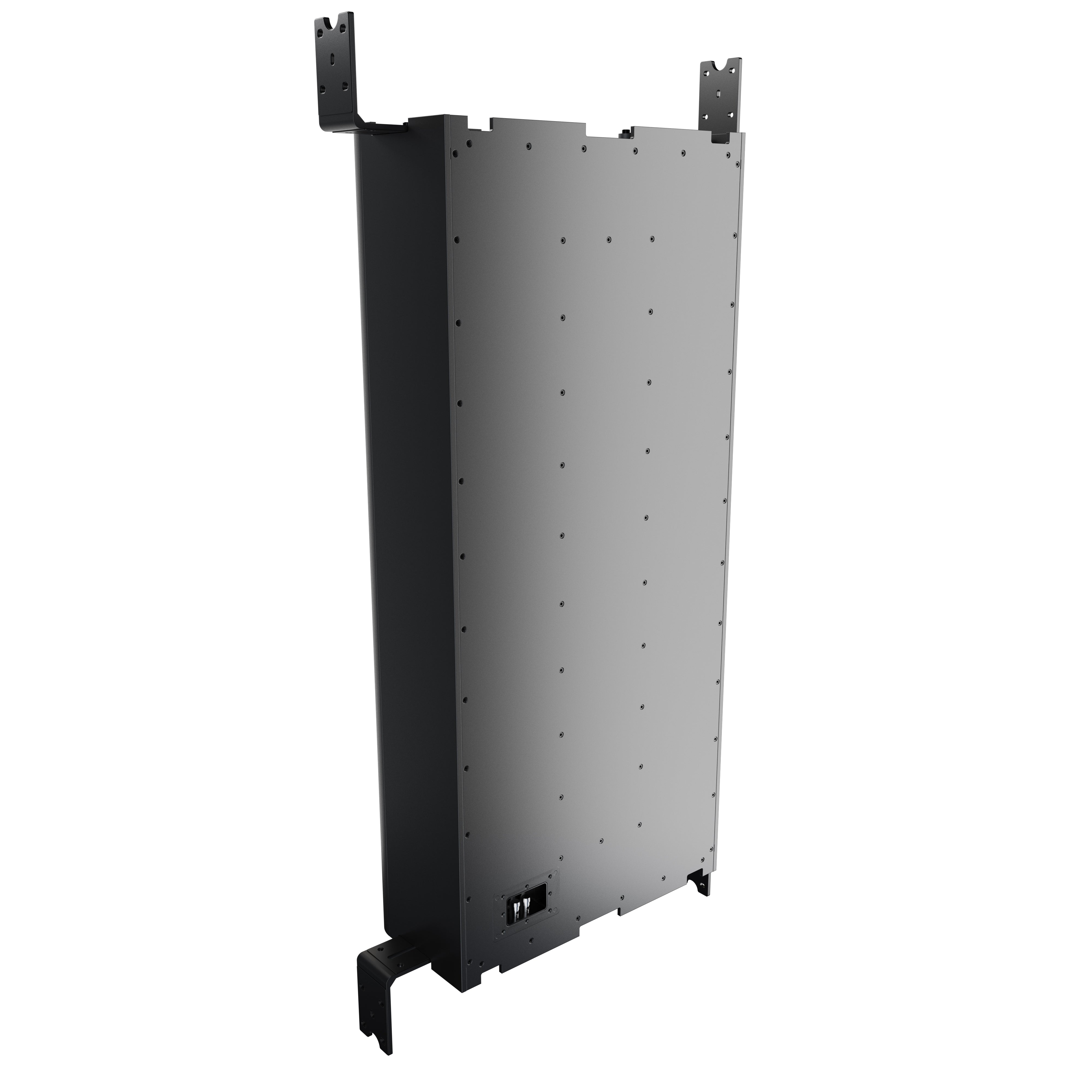

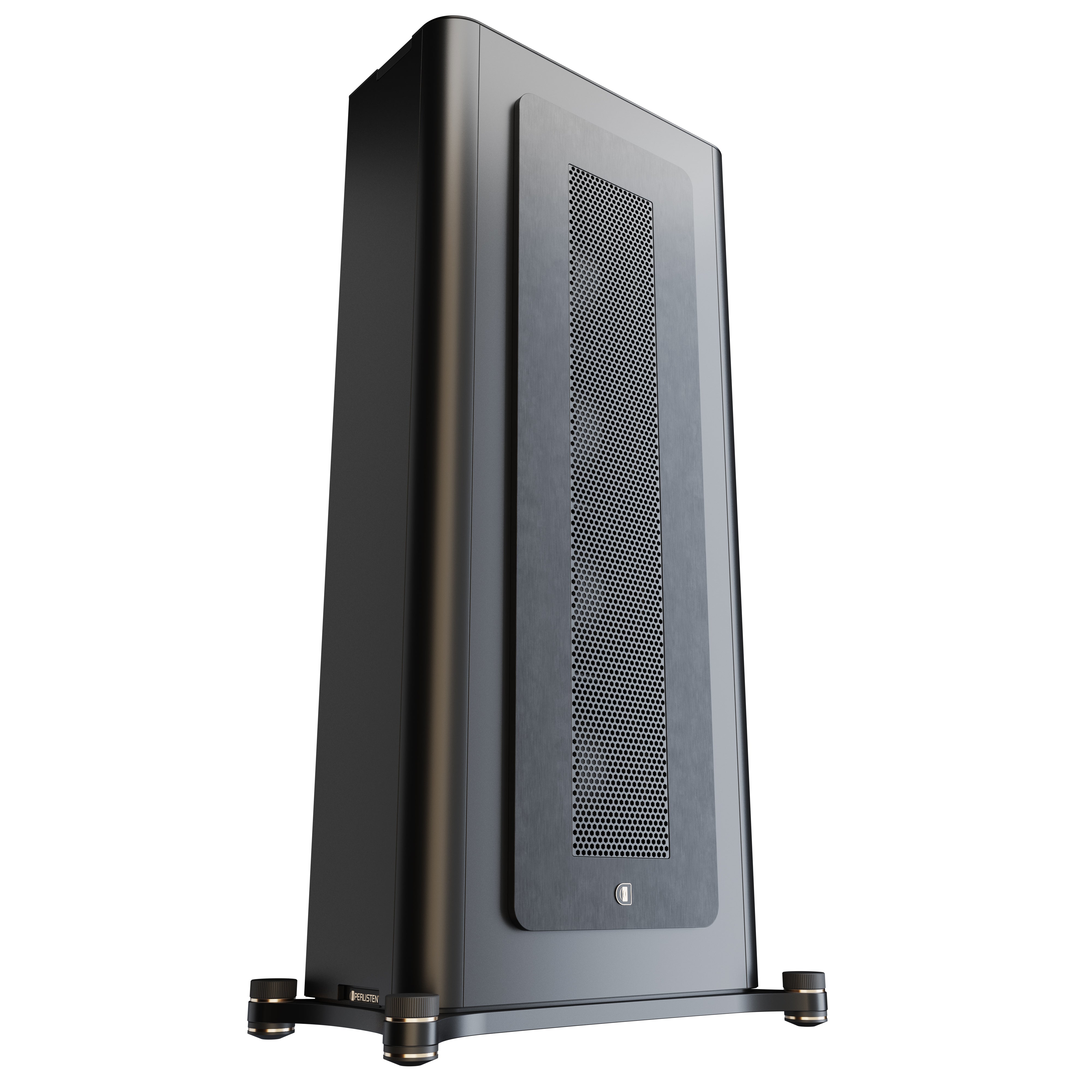

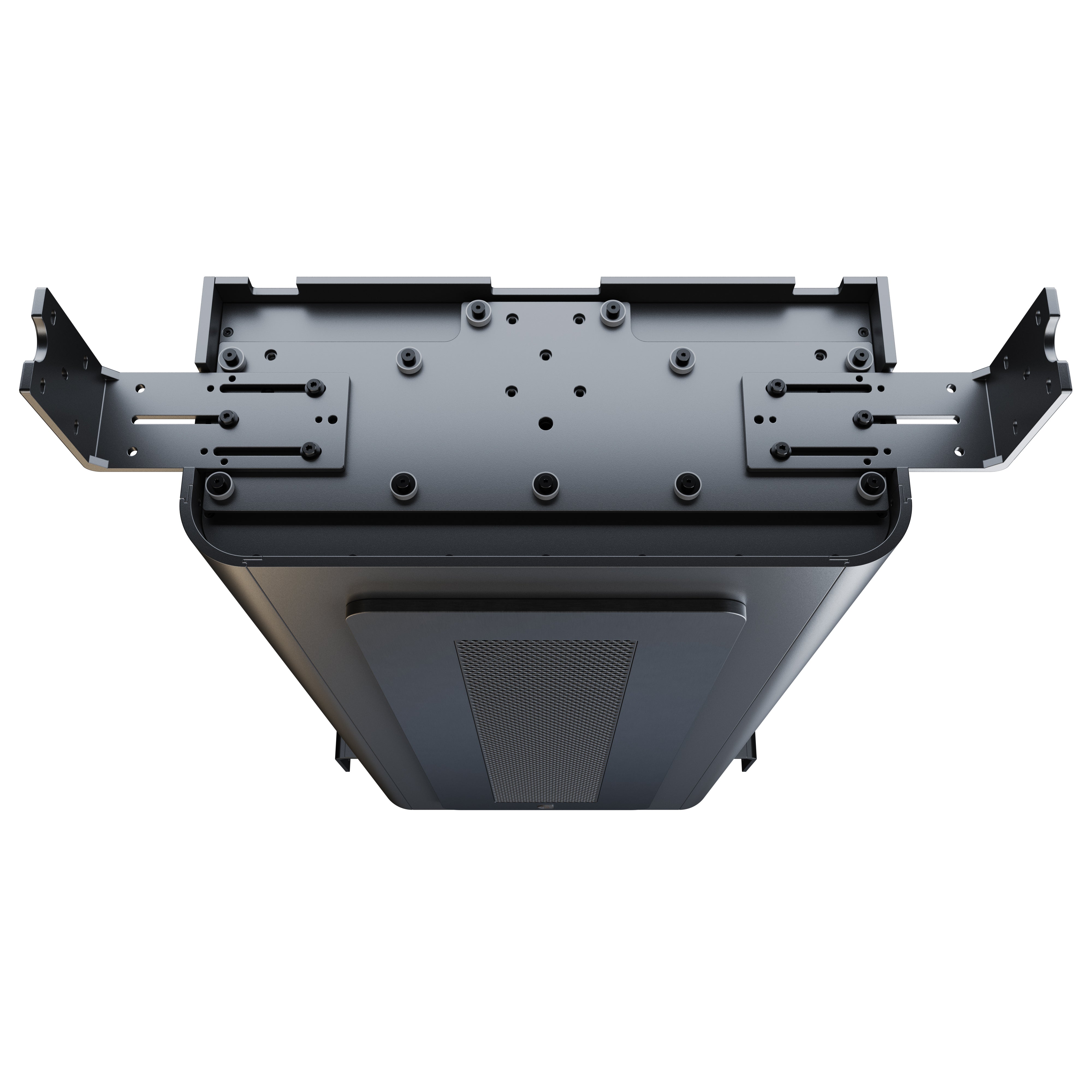

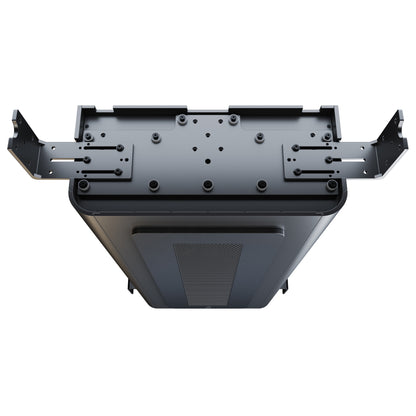

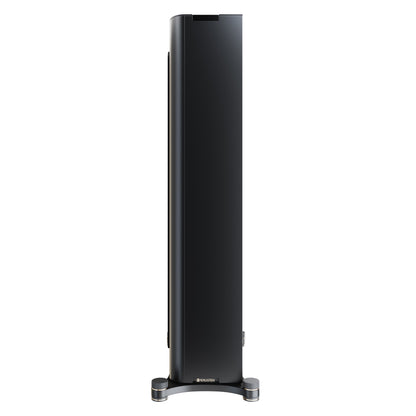

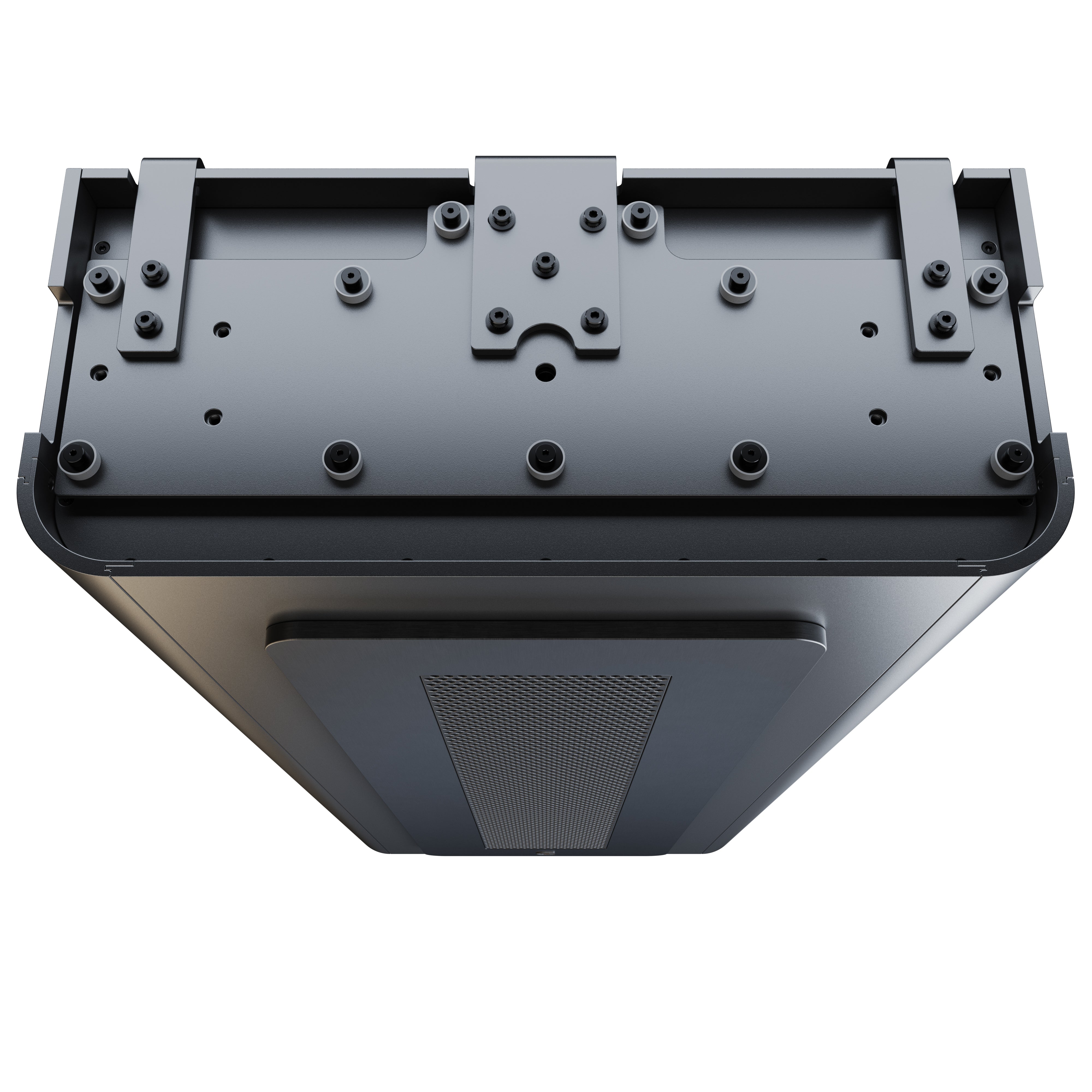

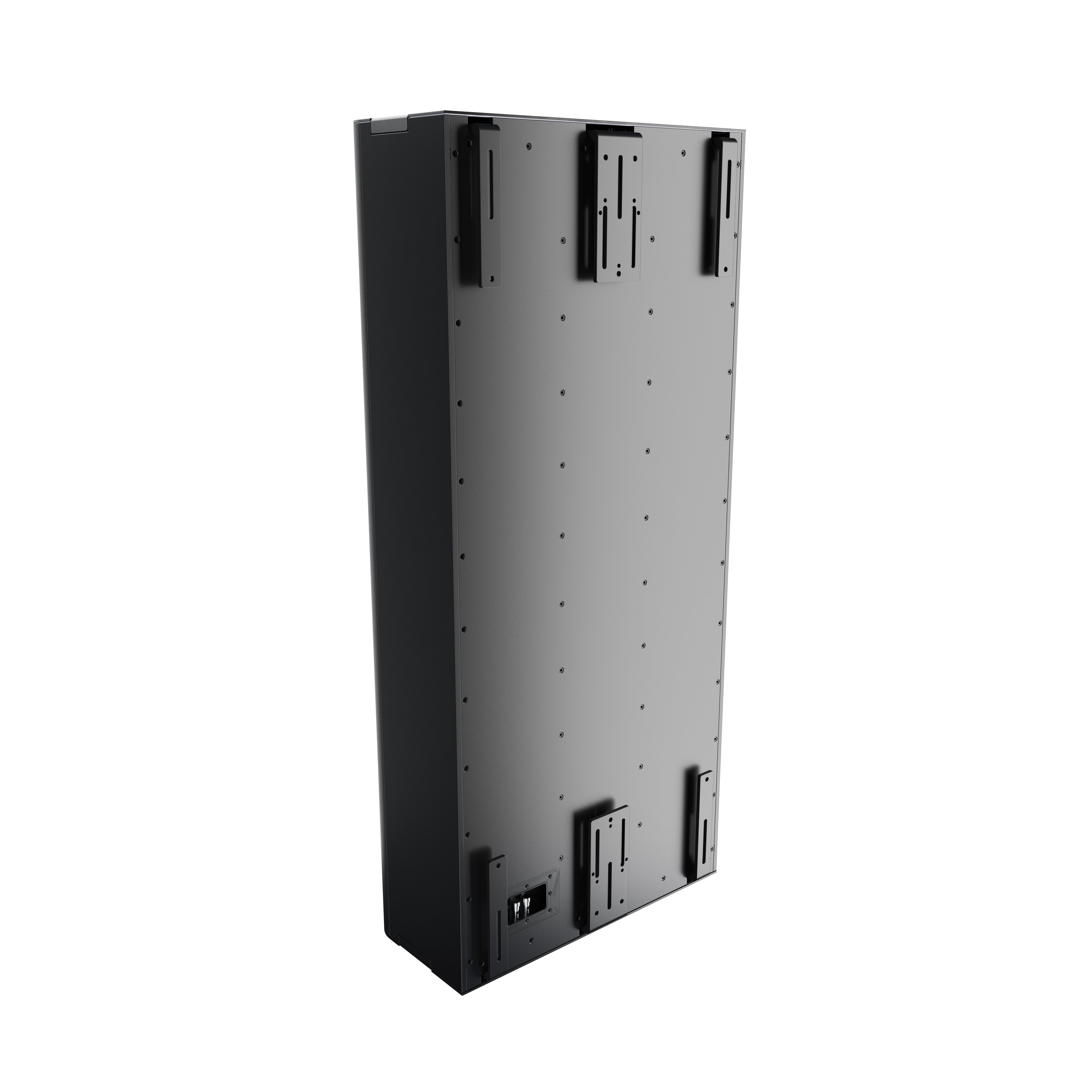

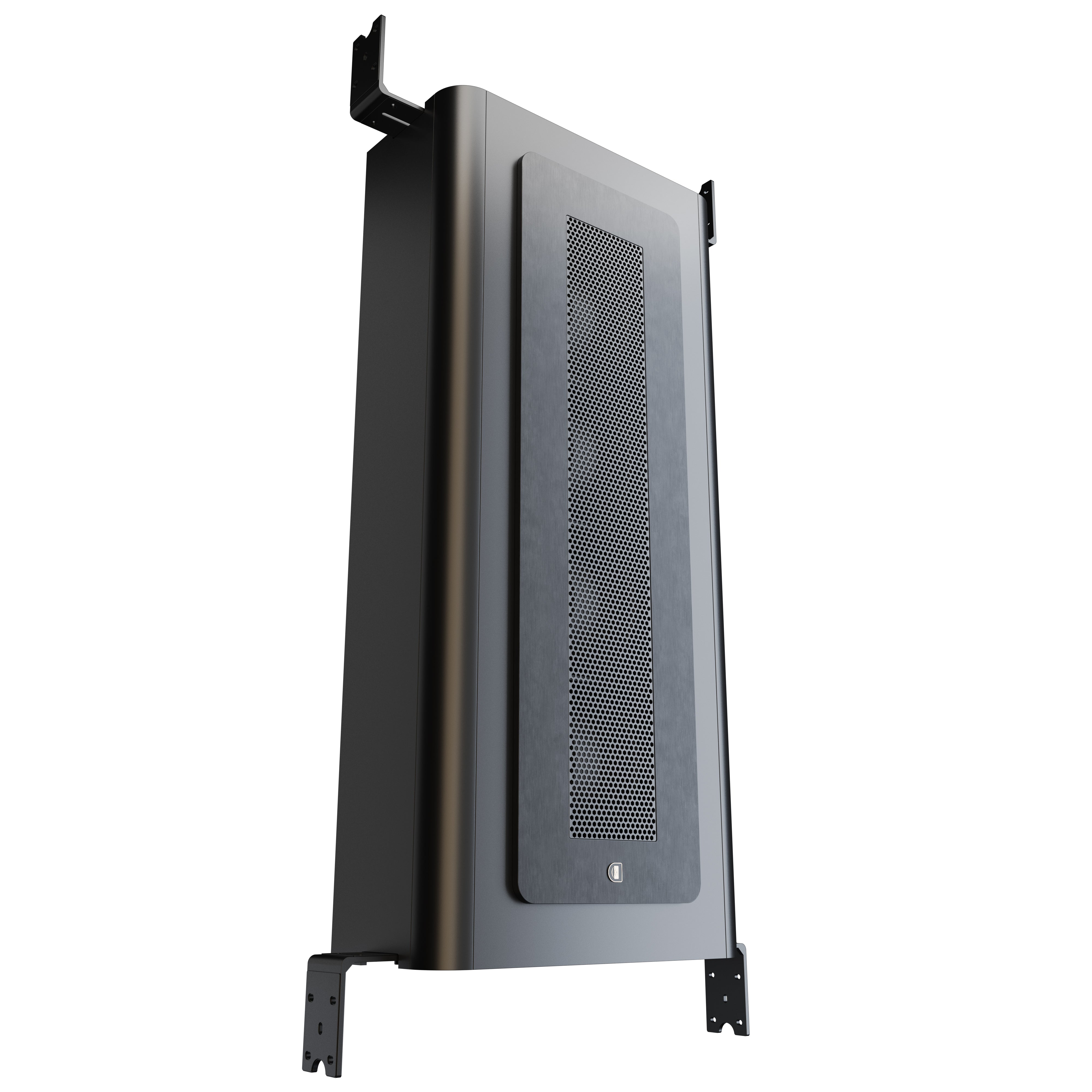

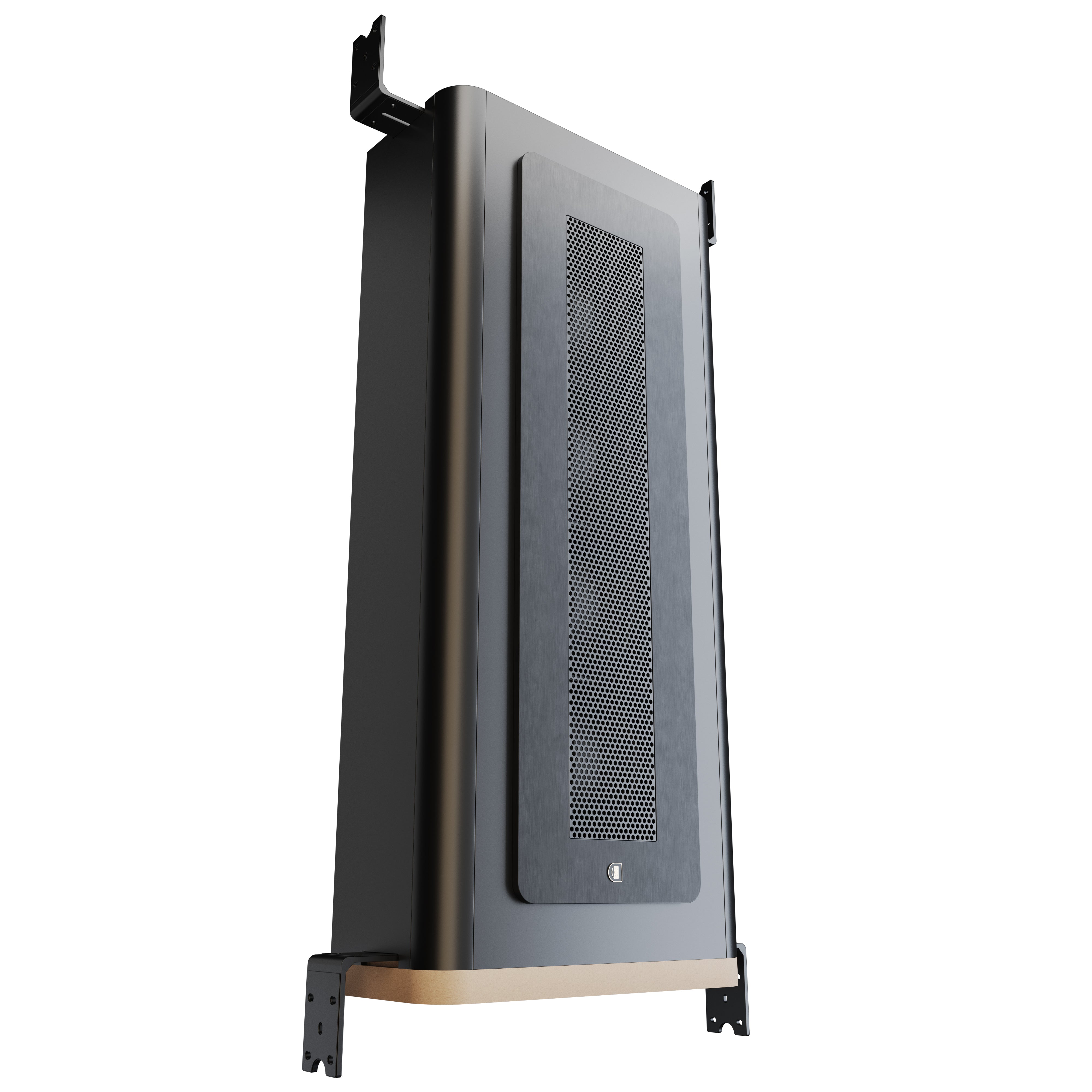

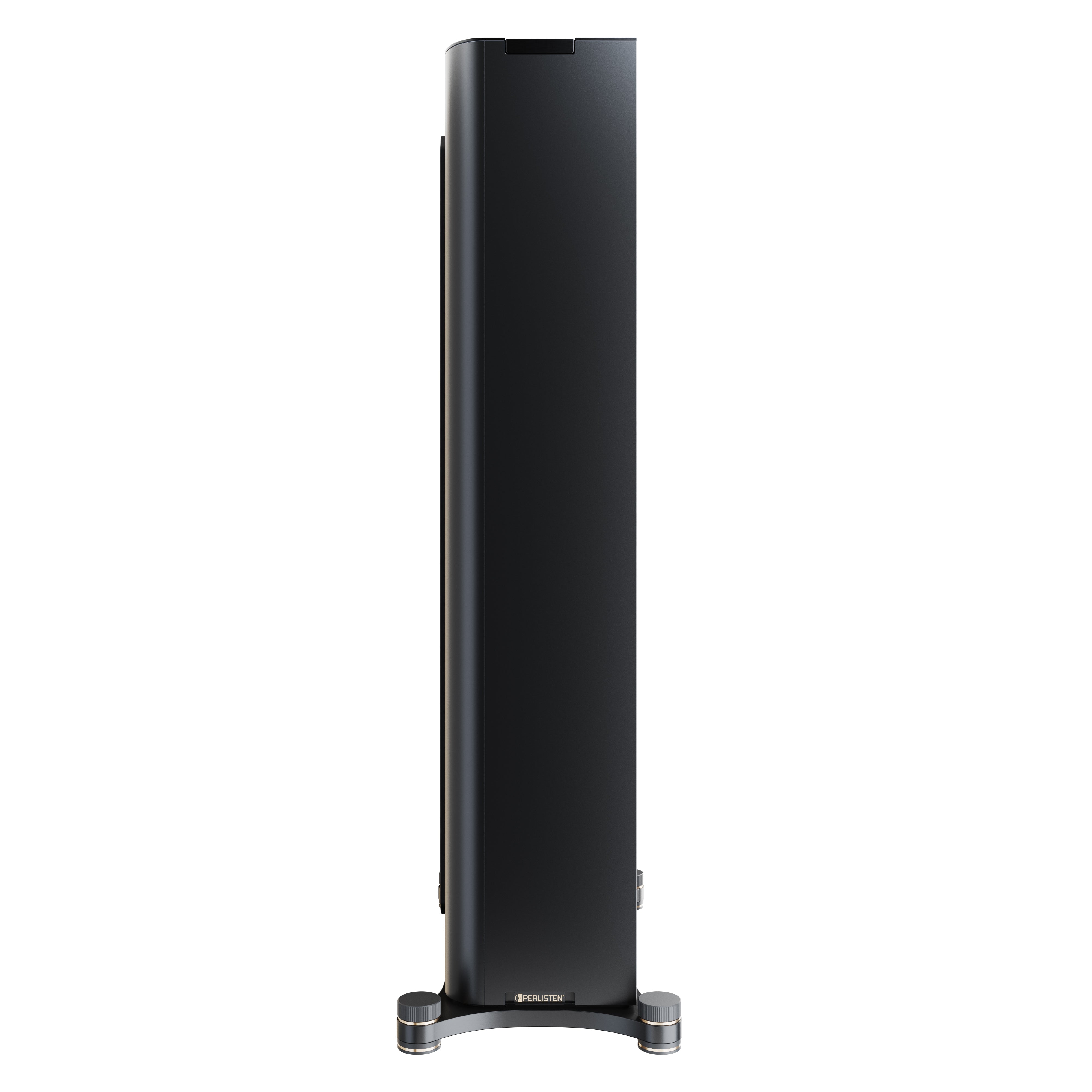

The D8is is a beauty to behold, both from its elegant full-aluminum extruded enclosure and incredible engineering design. The D8 houses right 203mm (8″) woofers with glass fibre cones in a push/pull force-cancelling configuration.. The D8 comes with brackets to mount it on a wall or within a structure. There’s also an optional base to deploy this piece of sculpture in a free-standing mode. The D8 comes with an external DSP-controlled 3,000-watt amplifier and rack ears if you desire to mount it into a standard 403mm (19″) equipment rack. Don’t be fooled by its tall, slim appearance. This is a highly capable and aesthetically pleasing subwoofer.
Technical specifications
| Alignment | Acoustic suspension |
| Amplifer | 3000W rms |
| Display Interface | 2.8" LCD color touchscreen |
| App | iOS and Android |
| Processor | 32-bit ARM Cortex M4, double precision floating point math |
| DSP Engine | Ti DSP 48-bit data paths |
| Driver compliment | (8)215mm (8.5"), Carbon fiber diaprhragm +/-18.0mm linear excursion |
| Reference sensitivity | 97.0 dB /150mV/ 1.0m |
| Frequency Response THX EQ Boost (Large Room) EQ Cut (Small Room) EQ |
20-290Hz (-6dB) / 16-330Hz (-10dB) 16-290Hz (-6dB) / 14-330Hz (-10dB) 25-290Hz (-6dB) / 19-330Hz (-10dB) |

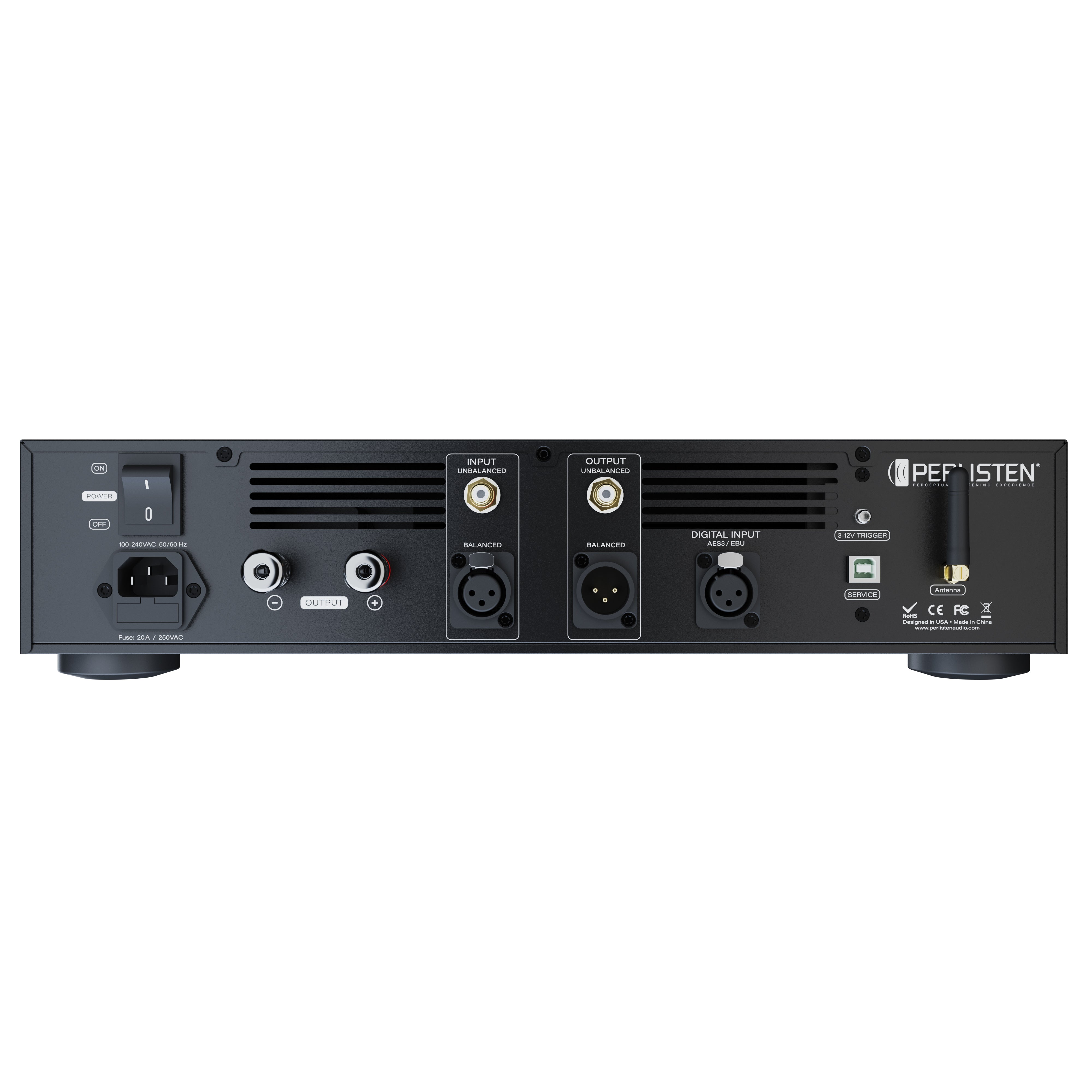

| Inputs | (1) Balanced XLR (1) Unbalanced RCA |
| Outputs | (1) Balanced XLR unbuffered (1) Unbalanced RCA unbuffered (1) Digital AES/2 |
| Parametric EQ | 10-Band PEQ with 3 user presets |
| Low Pass filter | bypass, 30-160Hz, slope 6,12,18,24dB/oct |
| Phase | variable 0-270o |
| Polarity | normal / inverted |
| Configurable Auto turn-on and 12v Trigger | XLR, RCA |
| Subwoofer Dimensions overall (HxWxD) *see architectural drawing |
1137.6 x 508.0 x 238.6mm (without brackets) 44.8 x 20.0 x 9.4" |
| Amplifier Dimensions overall (HxWxD) *see architectural drawing |
89.0 x 429.2 x 322.4mm 3.5 x 16.9 x 12.7" |
| Weight NW subwoofer NW amplfier GW packaged |
103.8 kg (228.4 lbs) 6.1 kg (13.4 lbs) 191.1 kg (422.2 lbs) |
| Available Finishes | Black anodized aluminum matte black |
