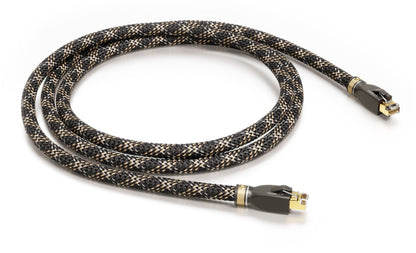

VIABLUE EP-7 CAT6A Ethernet Cable with T6s Terminations
SRP: 0.5m $229.95, 1m $249.95, 1.5m $279.95, 2m $299.95, 3m $349.95, 4m $399.95, 5m $449.95, 7.5m $549.95, 10m $669.95, 12m $769.95, 15m $899.95, 20m $1149.95, 25m $1379.95
VIABLUE™ EP-7 Silver RJ-45 CAT6A network cables guarantee full protection of sensitive data of external confounding effects and distortion. They provide an optimal gigabit high speed networking, leading to an extremely efficient and complete streaming of HD audio and UHD video formats.
For professional patch-cable applications
- 8 conductors of tinned pure OFC copper strands
- Soft banding
- Satin matt sheath: highly flexible and ultra resistant
100% shield coverage by a total of 5 layers
- Silver-plated OFC braided shield
- 4 aluminum foil shields
- To prevent any distortion such as mobile phone signals
- Jitter-free, no matter which frequency
Customized with VIABLUE™ T6s RJ-45 connectors
- Compact, flame-retardant, break-proof
- Unique VIABLUE™ Ultragrip surface
- 24 carat real gold-plated contacts
Additional features:
- VIABLUE™ Cobra braided cable sleeve
OFC Copper
OFC means oxygen-free copper and is an electrolytically refined copper used for its high conductivity with a maximum level of oxygen of 0.001%.
VIABLUE™ Cables are produced and assembled manually in Germany. That way, we guarantee a high quality and first-class listening experience.
TECHNICAL DETAILS
- Cross section: AWG 26/7
- Bending radius 5 cm
- Inner cores: OFC tinned
- Braided shield: OFC silver-plated
- Operating capacity, nominal 45 nF / km
- Relative propagation velocity, approx. 0.76 C
- Characteristic impedance 1-100 MHz = 100 +/- 15 ohms
- Characteristic impedance = 100-250 MHz = 100 +/- 22 ohms
- Characteristic impedance 250-600 MHz = 100 +/-25 ohms
- Shield attenuation up to 600 MHz > 60 dB
- CAT7-Kabel
- RJ-45 CAT6A connectors
- Outer Ø incl. sleeving: 10.5 mm
